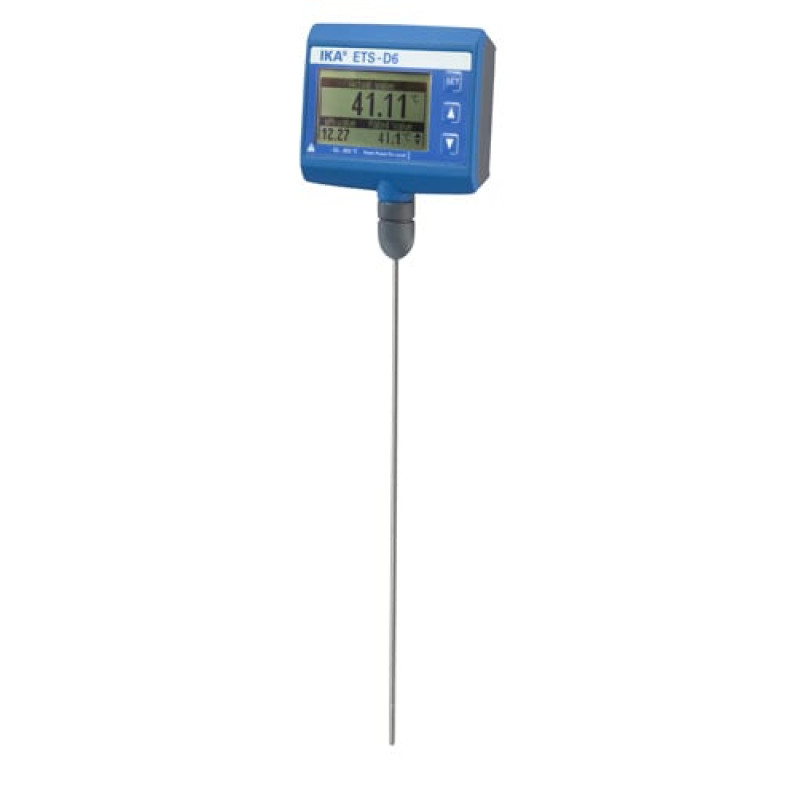

ETS-D6

Electronic contact thermometer with three patented IKA operating modes.

- with optimized PID control - reset function (RESET)

- with built-in pH meter

- on sensor H 62

- Large graphic LCD display with multilingual user manual

- Without pH electrode Provides perfect temperature control in liquid media without exceeding the set temperature, even in the case of rapid heating. Automatic switch-off of the temperature control function of the connected magnetic stirrer after three minutes if the temperature probe is not immersed in the medium (error 5).

Technical specifications:

Min. temperature measurement range (sensor width H62) [°C]: -10

Max. temperature measurement range (sensor width H62) [°C]: 400

Temperature measurement resolution [K]: 0.01

Temperature measurement accuracy [K]: ±0.05 + PT1000 tolerance (DIN IEC 751 Class A)

Resolution of set temperature [K]: ±0.1

Accuracy of ambient temperature control with sensor [K]: ±0.2

pH measurement: yes / BNC connector (female)

pH measuring range [pH]: 0 - 14

pH measurement accuracy [pH]: ±0.1

pH measurement resolution [pH]: 0.01

Maximum immersion depth [mm]: 200

Allowable on time [%]: 100

Dimensions (W x H x D) [mm]: 96 x 98 x 45

Weight [kg]: 0.2

Permissible relative humidity [%]: 80

Protection class according to DIN EN 60529: IP 54

RS 232 interface: no

Analog output: no

DC voltage [V=]: 8 - 16

Current consumption [mA]: 30

ETS-D6 — professional solution in the Magnetic stirrer accessories category

ETS-D6 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why ETS-D6

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: ETS-D6 fits easily into existing process lines and IT infrastructure.

Areas of application Magnetic stirrer accessories

Magnetic stirrer accessories solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing ETS-D6 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with ETS-D6 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
