C-MAG HS 7 Package

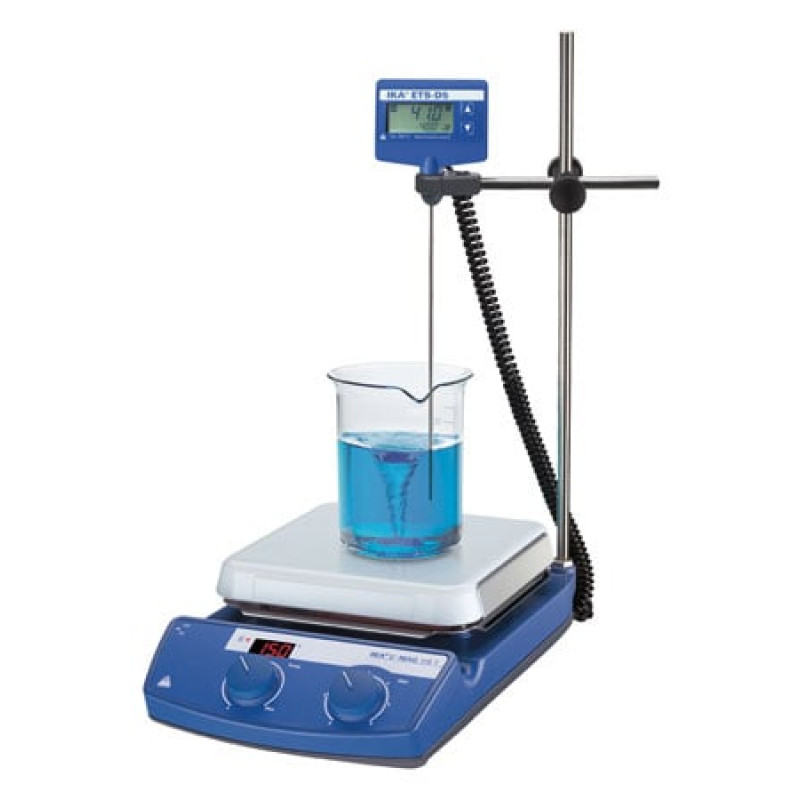

Magnetic stirrer C-MAG HS 7 Package

Magnetic stirrer with ceramic heating plate. Connector according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5.

Delivery set:

• C-MAG HS 7
• ETS-D5
• H 16 V Tripod
• H 44 Upper clamp
• H 38 Fastener

Technical specifications:

Number of positions for mixing: 1

Maximum amount of mixing agent per mixing position (H2O) [l]: 10

Maximum load [kg]: 15

Motor power [W]: 1.5

Direction of rotation: left

Speed adjustment: scale 0 - 6

Speed range [rpm]: 100 - 1500

Maximum mixer length [mm]: 80

Self-heating of the table plate at maximum stirring (quantity: 22°C/duration: 1 h) [K]: +2

Thermal power [W]: 1000

Setpoint temperature indicator: LED

Heating temperature range [°C]: 50 - 500

Heating control: rotary knob

Heating plate temperature setting resolution [K]: 5

Connection for external... Temperature sensor: ETS-D5

Fixed safety circuit [°C]: 550

Mounting plate material: ceramic

Mounting plate dimensions [mm]: 180 x 180

Heating rate (1 l H2O at H1500) [K/min]: 5

Dimensions (W x H x D) [mm]: 220 x 105 x 335

Weight [kg]: 5

Permissible ambient temperature [°C]: 5 - 40

Permissible relative humidity [%]: 80

Protection class according to DIN EN 60529: IP 21

Voltage [V]: 230 Frequency [Hz]: 50/60

Input power [W]: 1020

C-MAG HS 7 Package — professional solution in the Magnetic stirrers category

C-MAG HS 7 Package is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why C-MAG HS 7 Package

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: C-MAG HS 7 Package fits easily into existing process lines and IT infrastructure.

Areas of application Magnetic stirrers

Magnetic stirrers solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing C-MAG HS 7 Package allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with C-MAG HS 7 Package you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
