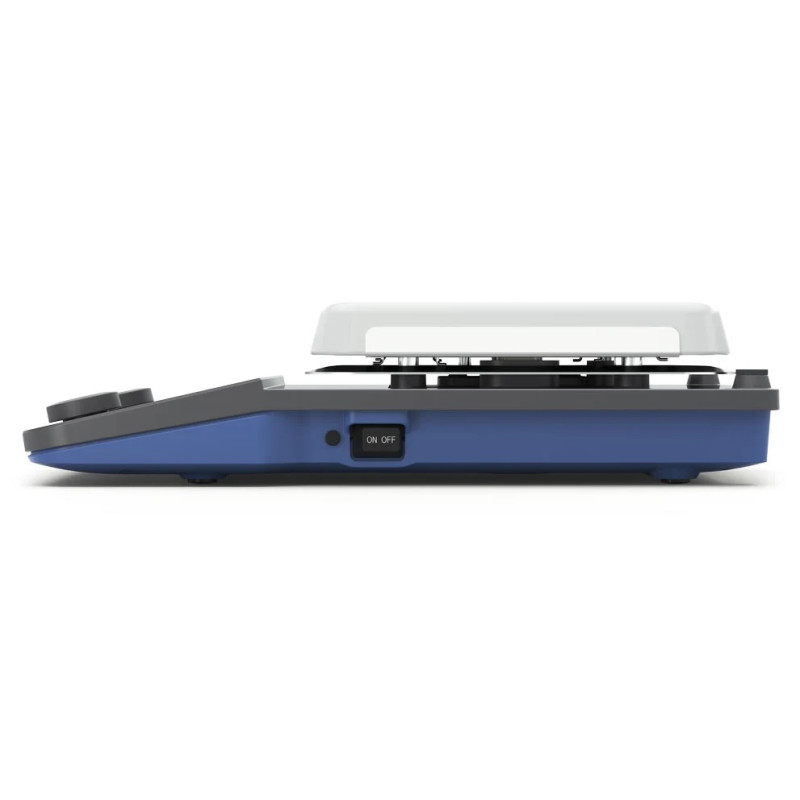

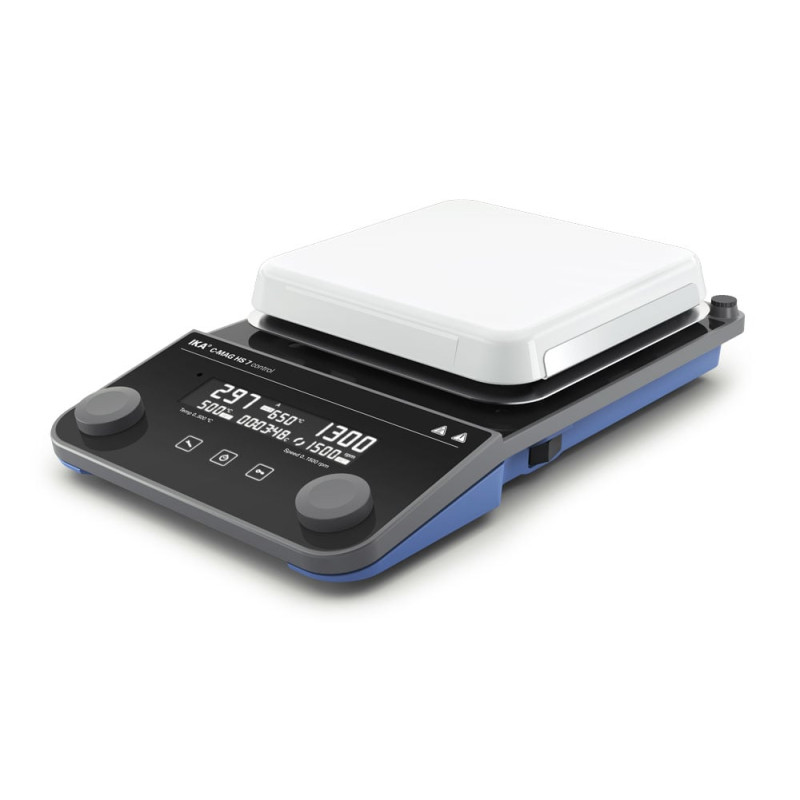

C-MAG HS 7 control

Magnetic stirrer C-MAG HS 7 control

The IKA C-Mag HS 7 has a square top made of ceramic. It stirs volumes up to 20 l (H2o) and operates at speeds from 50 to 1500 rpm. IKA stands firmly behind its product and technology and offers a lifetime warranty on this product - scientists can focus on their experiments using a reliable stirrer with a heating surface. IKA not only focuses on tempered glass due to its visibility, chemical resistance and safety, but also visually changes the game of magnetic stirrers with a glass surface. The C-Mag HS 7 controller improves over time with regular firmware updates - monitoring of kinetics and sensitive reactions is supported by an integrated timer and counter function - the IKA SmartTemp® function intelligently protects the user. Automatic switch-off of the heating function if the connected external temperature sensor is not immersed in the medium. The function is selected, the waiting time is adjustable (Error 5). The PT1000 temperature sensor is included.

Delivery set:

• C-MAG HS 7 control
• PT 1000.60 Temperature sensor
• IKAFLON® 30*
• IKAFLON® 40*
• Screwdriver
• USB A-B Cable

Technical specifications:

Number of positions for mixing: 1

Maximum amount of mixed substance per mixing position (H2O) [l]: 20

Maximum load [kg]: 25

Motor power [W]: 9

Direction of rotation: right / left

Speed setpoint indicator: LCD display

Actual speed value indicator: LCD display

Speed control: Rotary knob

Speed range [rpm]: 50 - 1500

Speed setting accuracy [rpm]: 10

Stirrer length [mm]: 30 - 80

Self-heating of the nozzle at maximum agitation (quantity: 22°C/duration: 1 h) [K]: +2

Thermal power [W]: 1000

Temperature setpoint indicator: LCD display

Actual temperature value indicator: LCD display

Temperature unit: °C

Heating temperature range [°C]: room temp. - 500

Heating control: Rotary knob

Display resolution [K]: 1

Temperature setting range [°C]: 0 - 500

Heating plate temperature setting resolution [K]: 5

Connection for external temperature sensor: PT1000, ETS-D5, ETS-D6

Ambient temperature setting resolution [K]: 1

Adjustable safety circuit [°C]: 100 - 650

Tabletop material: ceramic

Tabletop dimensions [mm]: 180 x 180

Automatic reverse rotation: yes

Periodic mode: yes

Viscosity trend measurement: yes

Mixing plate damage detection: no

Timer: yes

Timer display: LCD display

Min. time setting [s]: 1

Max. time setting [min]: 143940

pH measurement: no

Graphics function: no

Programs: no

Sensor detection in the environment: yes

Weighing function: no

PT1000 temperature measurement range [°C]: -10 - 350

Speed deviation (no load, rated voltage, at 1500 rpm + 25 °C) [%]: ±2

Heating rate (1 l H2O at H1500) [K/min]: 5

Heating plate temperature control accuracy (at 100°C) [K]: ±5

Temperature control accuracy with external... PT1000 (500 ml H2O in 600 ml beaker, 40 mm stirrer, 600 rpm, 50°C) [K]: ±0.5

Temperature control accuracy with ETS-D5 (500 ml H2O in 600 ml beaker, 40 mm stirrer, 600 rpm, 50°C) [K]: ±0.5

Temperature control accuracy with ETS-D6 (500 ml H2O in 600 ml beaker, 40 mm stirrer, 600 rpm, 50°C) [K]: ±0.2

Dimensions (W x H x D) [mm]: 220 x 88 x 354

Weight [kg]: 4

Permissible ambient temperature [°C]: 5 - 40

Permissible relative humidity [%]: 80

Protection class according to DIN EN 60529: IP 21

RS 232 Interface: yes

USB interface: USB-B

Analog output: no

Voltage [V]: 220 - 230 Frequency [Hz]: 50/60

Input power [W]: 1020

Standby input power [W]: 2
