RET basic

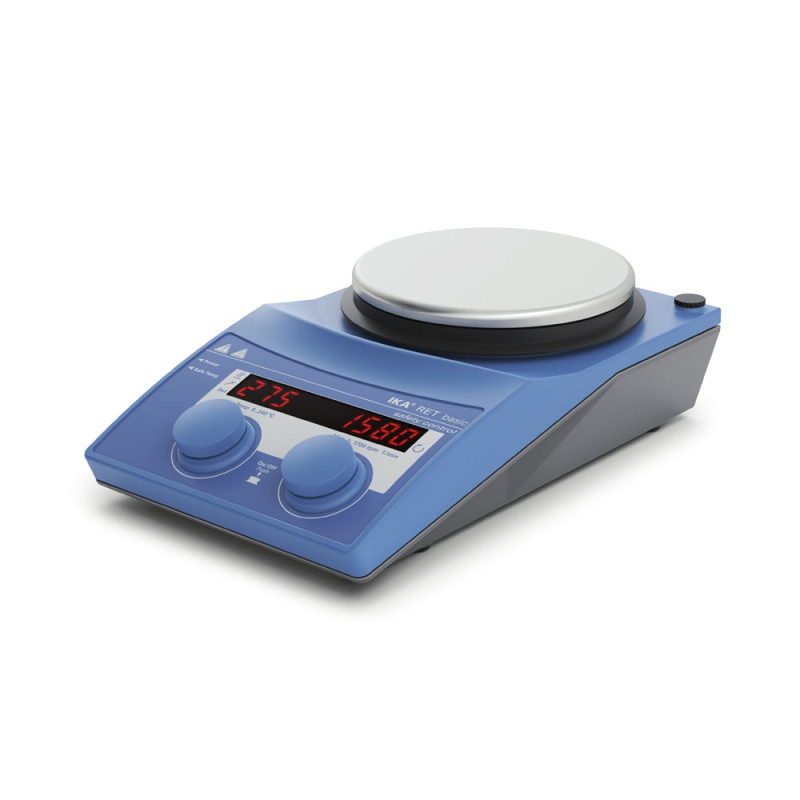

Magnetic stirrer RET basic

Wide speed range from 0/50 to 1700 rpmBuilt-in temperature controlIncluding PT 1000 temperature sensor (PT 1000.60)Precise temperature and speed setting on the digital display, even when turned off

• Installed safe temperature limit displayed digitally
• Hot surface indicator > warning of hot surface to prevent burns!
• Digital error code display- With adjustable temperature safety circuit of the heating plate (50 - 380 °C)
• Protective magnetic stirrer with heating, suitable for unsupervised operation
• Socket according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5 ensures precise temperature control
• High safety level thanks to advanced heat control technology
• Enclosed housing (IP 42) ensures long service life
• Very wide temperature range (from room temperature to 340 °C)
• Extremely fast heating time
• Electronic speed control
• High magnetic adhesion
• Automatic shutdown of the heating function if an external temperature sensor is not immersed in the medium. The function can be selected, and the waiting time can be set (Error 5).

Delivery content:

• RET basic
• PT 1000.60 Temperature sensor
• IKAFLON® 20*
• IKAFLON® 30*
• IKAFLON® 40*
• Screw driver
• Protection cover

Technical specifications:

Number of stirring positions: 1

Maximum amount of substance per stirring position (H2O) [L]: 20

Maximum load [kg]: 25

Motor power [W]: 9

Rotation direction: right

Set speed indicator: LED

Actual speed indicator: LED

Speed control: rotary knob

Speed range [rpm]: 50 - 1700

Speed setting accuracy [rpm]: 10

Stirrer length [mm]: 20 - 80

Self-heating of the attachment at maximum stirring (room temperature: 22°C/duration: 1 hour) [K]: +15

Heating power [W]: 600

Set temperature indicator: LED

Actual temperature indicator: LED

Temperature unit: °C

Heating temperature range [°C]: Room temp. + attachment self-heating - 340

Heating control: Rotary knob

Temperature setting range [°C]: 0 - 340

Temperature setting resolution of the heating plate [K]: 1

Connection for external temperature sensor: PT1000

Temperature setting resolution of the medium [K]: 1

Adjustable safety circuit [°C]: 50 - 360

Material of the heating plate: stainless steel 1.4301

Heating plate dimensions [mm]: Ø 135

Automatic reverse rotation: no

Intermittent mode: no

Viscosity trend measurement: no

Detection of stirrer damage: no

Timer: no

pH measurement: no

Graph function: no

Programs: no

Detection of sensor in the medium: yes

Weighing function: noHeating rate (1 L H2O in H1500) [K/min]: 7

Temperature control accuracy with external PT1000 (500 ml H2O in 600 ml beaker, stirrer 40 mm, 600 rpm, 50°C) [K]: ±1

Temperature control accuracy with ETS-D5 (500 ml H2O in 600 ml beaker, stirrer 40 mm, 600 rpm, 50°C) [K]: ±0.5

Temperature control accuracy with ETS-D6 (500 ml H2O in 600 ml beaker, stirrer 40 mm, 600 rpm, 50°C) [K]: ±0.2

Dimensions (W x H x D) [mm]: 160 x 95 x 270

Weight [kg]: 2.5

Permissible ambient temperature [°C]: 5 - 40

Permissible relative humidity [%]: 80

Protection class according to DIN EN 60529: IP 42

RS Interface 232: no

USB Interface: no

Analog output: no

Voltage [V]: 220 - 230Frequency [Hz]: 50/60

Input power [W]: 630

RET basic — professional solution in the Magnetic stirrers category

RET basic is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why RET basic

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: RET basic fits easily into existing process lines and IT infrastructure.

Areas of application Magnetic stirrers

Magnetic stirrers solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing RET basic allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with RET basic you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
