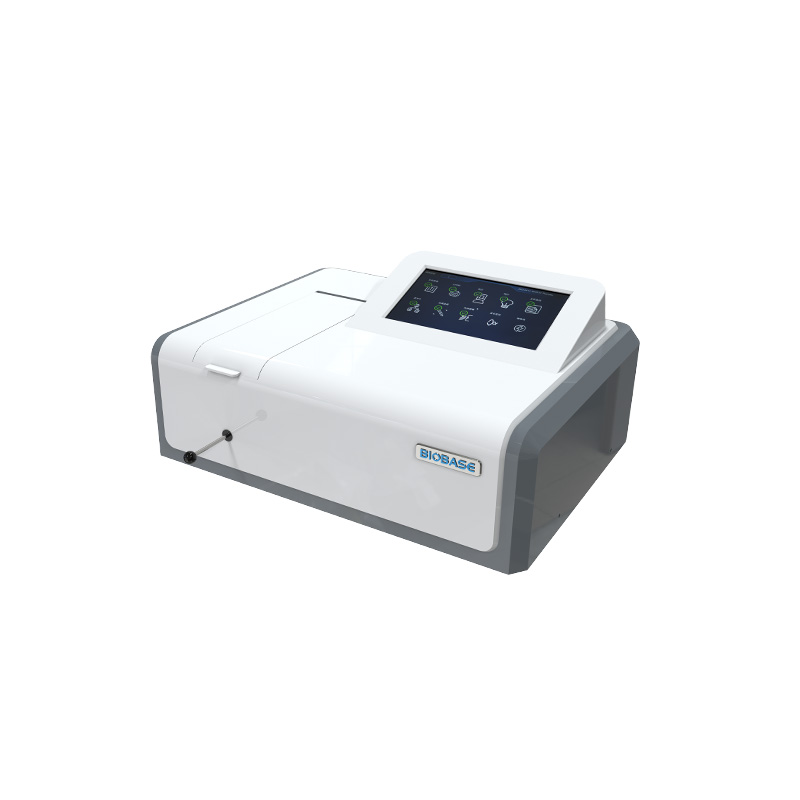

UV/VIS Spectrophotometer UV-1100

Features:

1. 10.1-inch full color touch screen display, which can directly display various scanning curves and graphs without the need for a computer.

2. The standard USB drive and Bluetooth function can realize wired and wireless storage, and one-click screenshots can export data pictures in real time.

3. It adopts advanced A6 core high-performance processor, and optional mouse and keyboard.

4. Nucleic acid and protein concentration determination function, rapid detection of nucleic acid extraction purity.

5. Qualitative and quantitative analysis capabilities to test unknown substances and known sample concentrations.

6. Optional host computer software with audit trail function.

Technical Parameters:

Model	UV-1100
Display	10.1-inch LCD touch screen
Optical System	Single beam

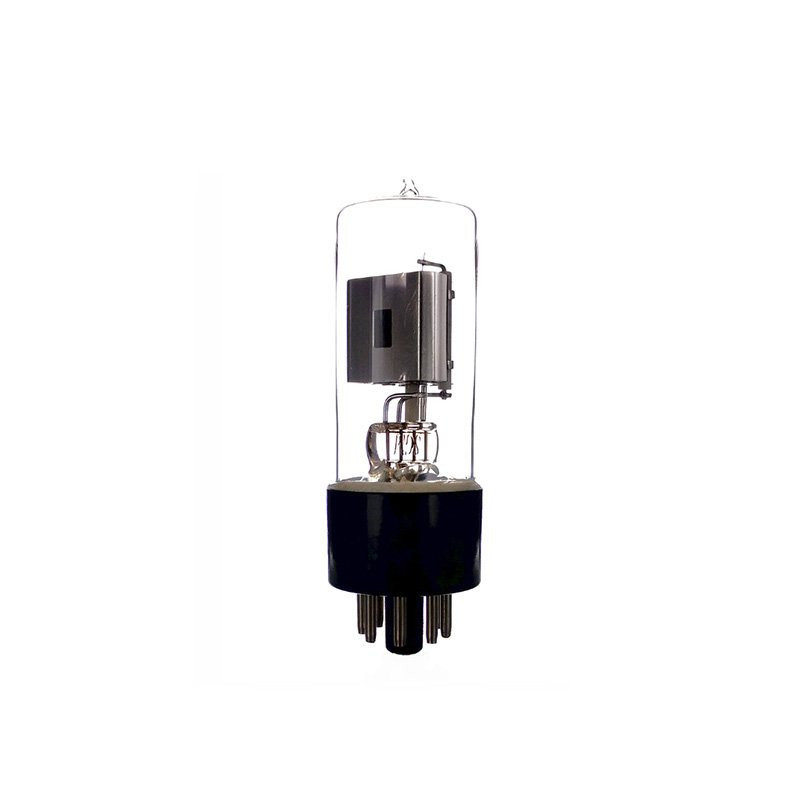

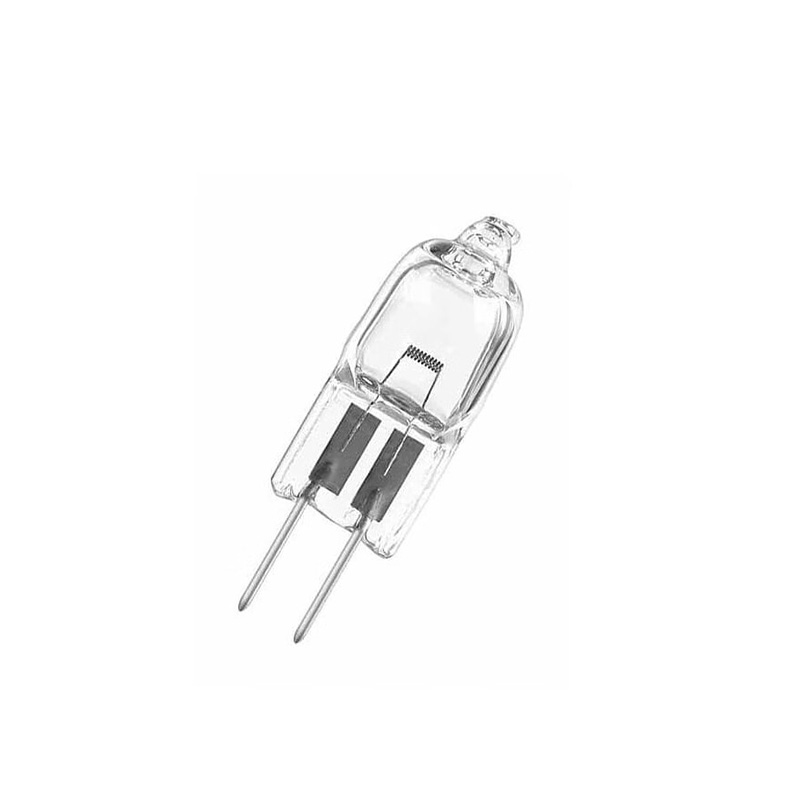

Light Source	International famous deuterium lamp, tungsten lamp
Wavelength	190nm-1100nm
Stray Light	0.05%(220nm)
Spectral Bandwidth	2nm
Wavelength Accuracy	Full wavelength 0.3nm(656.1nm 0.1nm)
Wavelength Repeatability	0.1nm
Transmittance Accuracy	0.3%T
Photometric Mode	Transmittance, absorbance, concentration, energy
Interface	RS-232, USB

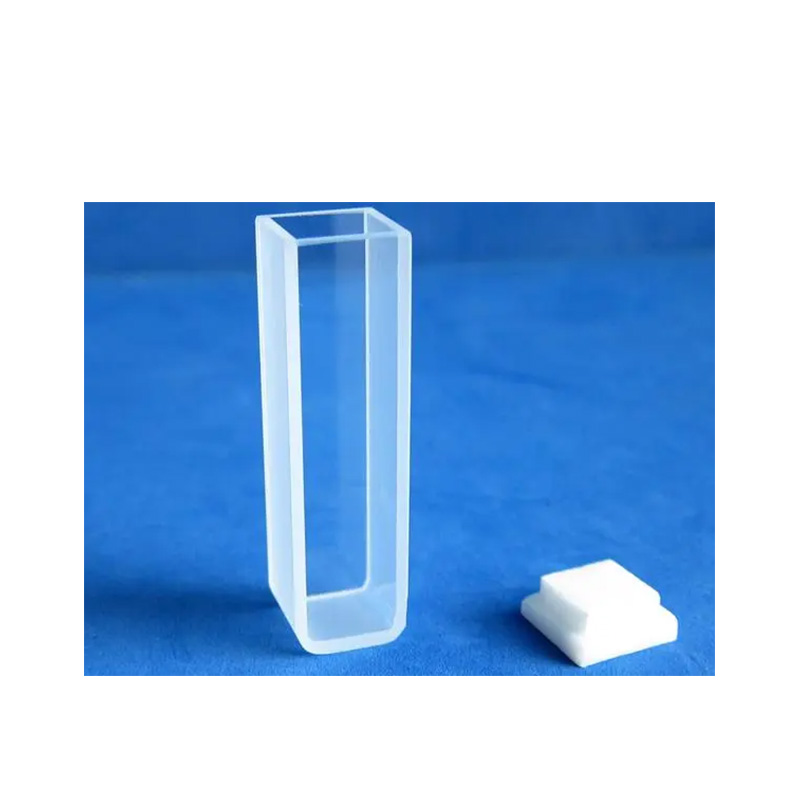

Standard Accessory	10mm glass cuvette*4, 10mm quartz cuvette*2
Optional Accessory	Host computer software, printer
Consumption	160W
Power Supply	AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)
External Size(W*D*H)	562*520*260mm
Package Size(W*D*H)	650*620*380mm
Net Weight	21kg
Gross Weight	28kg

UV/VIS Spectrophotometer UV-1100 — professional solution in the Spectrophotometers category

UV/VIS Spectrophotometer UV-1100 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why UV/VIS Spectrophotometer UV-1100

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: UV/VIS Spectrophotometer UV-1100 fits easily into existing process lines and IT infrastructure.

Areas of application Spectrophotometers

Spectrophotometers solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing UV/VIS Spectrophotometer UV-1100 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with UV/VIS Spectrophotometer UV-1100 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
