Features:
1. Equipped with preheating water tank to reduce the cleaning water heating waiting time.
2. 4~6 minutes quick cleaning, can clean 72 drinking bottles at a time.
3. Original imported European circulation pump, large circulation design, spray strength, stable quality, effectively improve the cleaning effect.
4. The final rinse water is used for the next cleaning, saving water.
5. 7 inch color LCD touch screen, easy to operate.
6. Independently design and develop control systems to meet various operation and management needs.
Technical Parameters:
Model | BK-CW330 | BK-CW330Z |
Capacity(L) | 330 |
Cleaning Volume | 200ml drinking bottle can be cleaned 180, 500ml drinking bottle can be cleaned 72 |
Opening Mode | Manual |
Control System | PLC/Siemens |
Touch Screen | 7 inch |
Cleaning Time | Quick cleaning program can be cleaned once in 4~6 minutes |
Cleaning Temperature | ＞60℃(Adjustable) |
Rinsing Temperature | ＞82℃(Adjustable) |
Drying Temperature | RT~120℃(Optional) |
Heating Method | Electric Heating | Steam Heating |
Steam source | / | Pressure: 0.3~0.5Mpa, Flow Rate: 50kg/h |
Water Source | Softened Water: Pressure: 0.2~0.5Mpa, Flow Rate: 15L/min |
Consumption | 31KW | 2KW |
Power Supply | AC380/220V, 50Hz | AC380/220V, 50Hz |
Power Supply(Optional) | AC220V, 60Hz; 220V, 60Hz(Three phase); 380V, 60Hz; 110V, 50/60Hz |
External Size(W*D*H) | 690*790*1950mm |
Net Weight | 240kg |
Package Size(W*D*H) | 810*990*2185mm |
Gross Weight | 320kg |

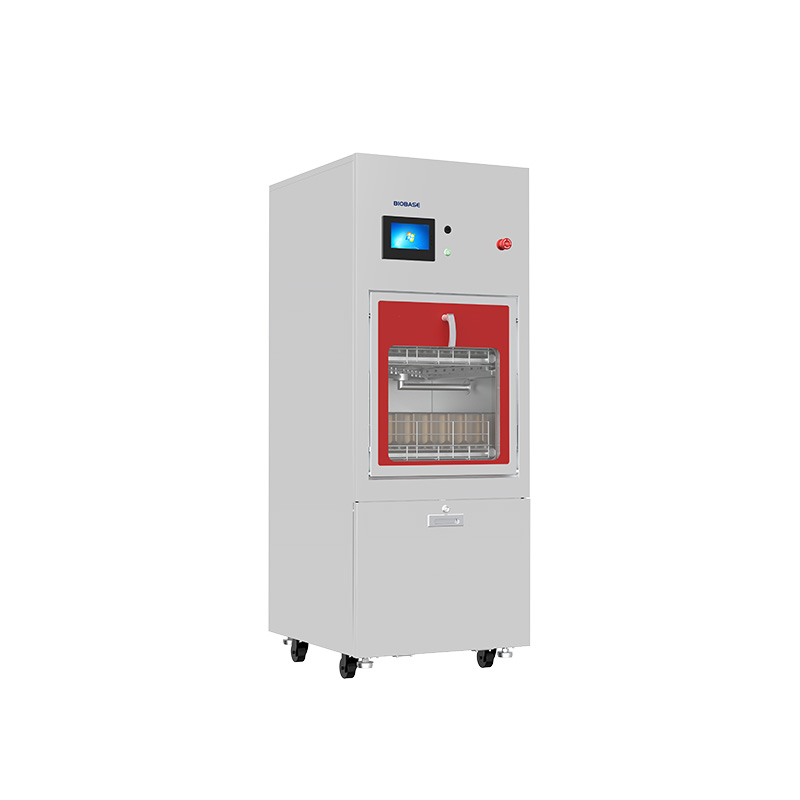

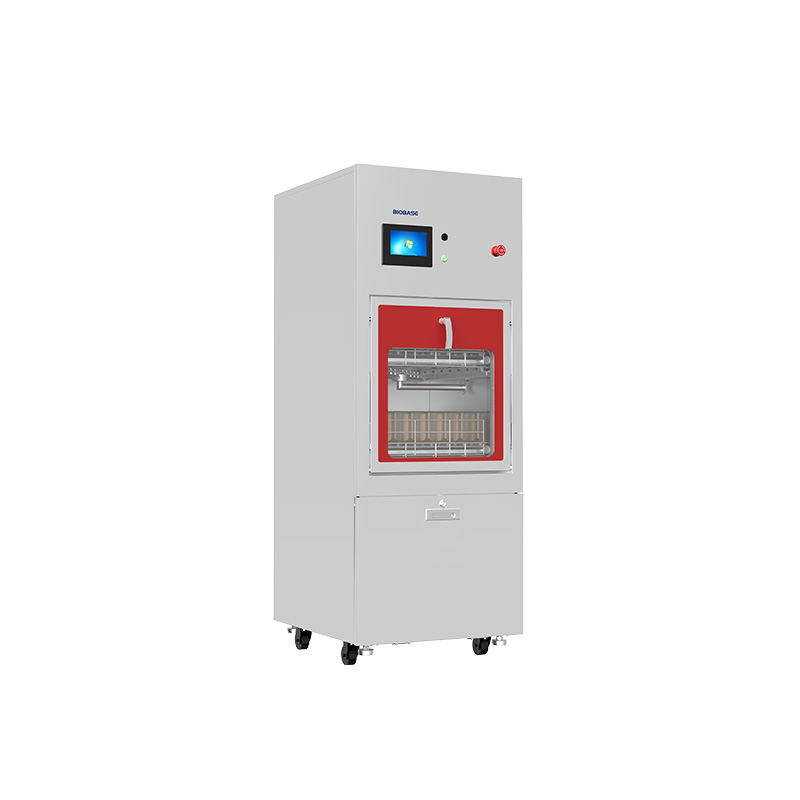

Automatic Drinking Bottle Washer BK-CW330 BK-CW330Z — professional solution in the Washer Disinfector category
Automatic Drinking Bottle Washer BK-CW330 BK-CW330Z is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Automatic Drinking Bottle Washer BK-CW330 BK-CW330Z
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Automatic Drinking Bottle Washer BK-CW330 BK-CW330Z fits easily into existing process lines and IT infrastructure.
Areas of application Washer Disinfector
Washer Disinfector solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Automatic Drinking Bottle Washer BK-CW330 BK-CW330Z allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Automatic Drinking Bottle Washer BK-CW330 BK-CW330Z you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Automatic Drinking Bottle Washer BK-CW330 BK-CW330Z to the cart or contact our manager. We will help integrate Washer Disinfector into existing processes without downtime and unnecessary costs.
