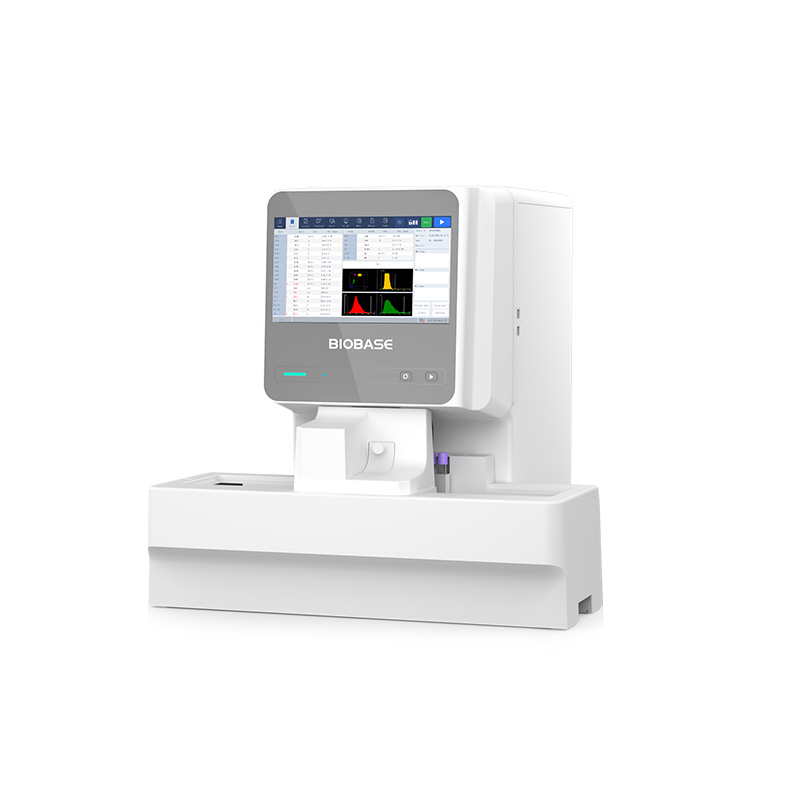

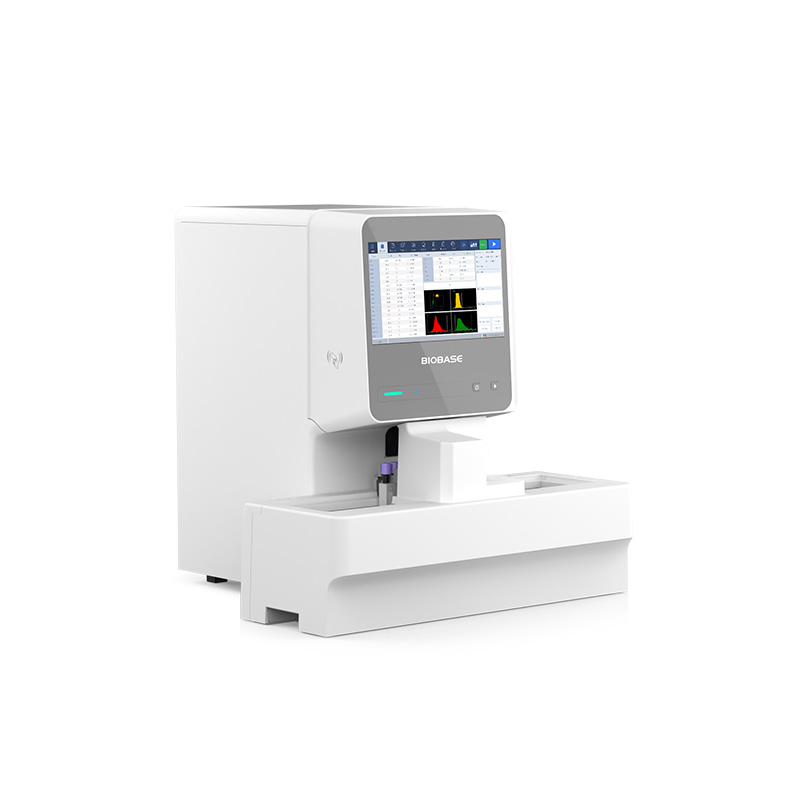

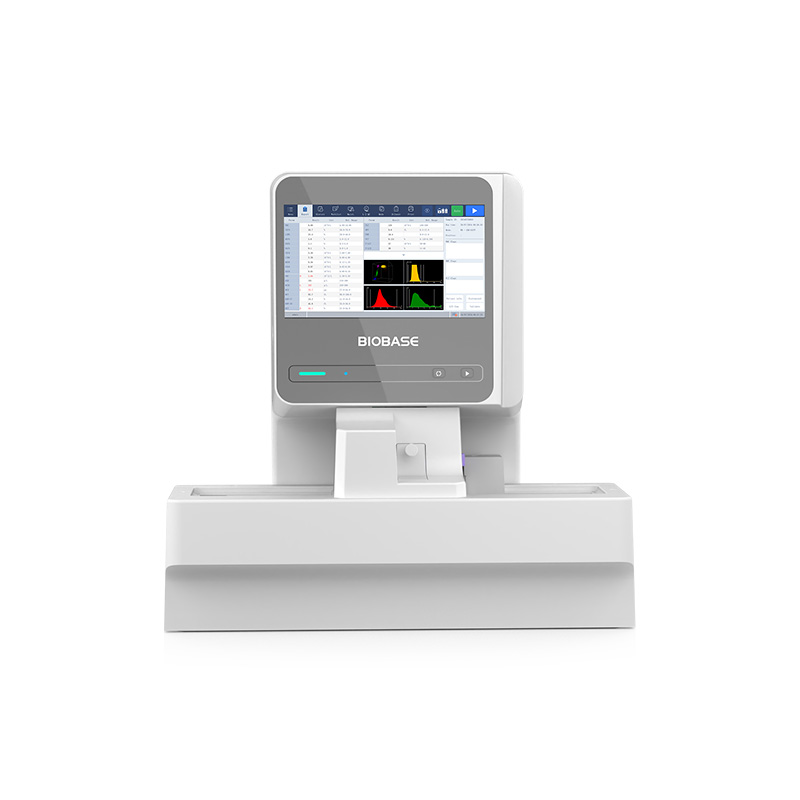

5-Part Auto Hematology Analyzer BH-HA650

Features:

1. Throughput 70t/h.

2. 14 inch touch screen.

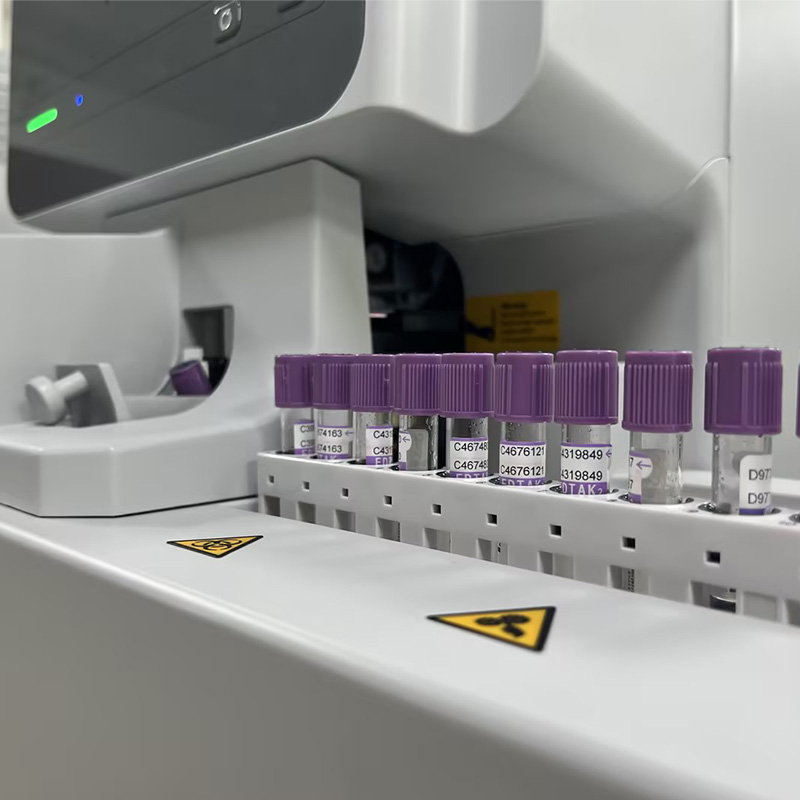

3. 50 sample positions, automatic loading, mixing and sampling.

4. Tri-angle laser scatter+flow cytometry method+impedance method for RBC and PLT counting.

5. 3D holographic scattergram displays the accurate 5 part differentiation of WBC.

6. Large storage capacity: 300,000 results(including histogram, scattergram, patient information).

Technical Parameters:

Model	BH-HA650
Throughput	70 tests/hour
Assay Items	5 parts, 25 parameters, 3 histograms(WBC/BASO, RBC, PLT), 3D scattergram
Principle	Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test
Test Mode	CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted
Sample Volume	CBC+DIFF mode: ≤20μl CBC mode: ≤10μl
Parameters	25 reportable parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 6 research parameters: ALY%, ALY#, LIC%, LIC#, NRBC%, NRBC#
Performance	Item	Linearity Range	Carry Over	CV
	WBC	0~300.0*10^9/L	≤0.5%	≤2.0%
	RBC	0~8.00*10^12/L	≤0.5%	≤1.5%
	HGB	0~250g/L	≤0.5%	≤1.5%
	PLT	0~3000*10^9/L	≤1.0%	≤4.0%
Storage	Up to 300,000 results including histograms, scattergrams and patient information
Display	14 inch touch screen, resolution 1366*768
Interface	4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader
Loading Position	50 sample positions
Power Supply	AC100~240V, 50/60Hz; 300VA
Package Size(W*D*H)	Main Machine: 680*580*895mm Accessories: 950*500*580mm
Gross Weight	Main Machine: 60kg Accessories: 27.6kg
Reagent Package Size	330*330*330mm, 400*290*240mm, 400*290*240mm
Reagent Gross Weight	22kg, 2kg, 2kg



5-Part Auto Hematology Analyzer BH-HA650 — professional solution in the Hematology Analyzer category

5-Part Auto Hematology Analyzer BH-HA650 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why 5-Part Auto Hematology Analyzer BH-HA650

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: 5-Part Auto Hematology Analyzer BH-HA650 fits easily into existing process lines and IT infrastructure.

Areas of application Hematology Analyzer

Hematology Analyzer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing 5-Part Auto Hematology Analyzer BH-HA650 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with 5-Part Auto Hematology Analyzer BH-HA650 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
