Technical Parameters:
Model | BMI-37XC | BMI-37XE |
Optical System | Infinite optical system |
View Head | Compensation free trinocular head, Inclined at 45°, 360° rotatable, Interpupillary 48~75mm |
Eyepiece | WF10X/22mm, P16X/20mm | P10X/20mm |
Objective | Infinite LWD Plan Achromatic Objective | 4X N.A=0.10 WD=25.00mm 40X N.A=0.60 WD=3.30mm | 10X N.A=0.25 WD=4.27mm 20X N.A=0.40 WD=8.00mm 40X N.A=0.60 WD=3.50mm |
Infinite LWD
Plan Phase Objective
Contrast Objective | 10X N.A=0.25 WD=8.10mm 20X N.A=0.40 WD=4.80mm 40X(Optional) | 10X N.A=0.25 WD=4.27mm 20X N.A=0.40 WD=8.00mm(Optional) 40X N.A=0.60 WD=3.50mm(Optional) |
Focusing | Coaxial coarse&fine adjustable system, pinion and rack adjustable, fine division 0.002mm |
Stage | 242*172mm, glass slide ø110mm, moving range 120*75mm | Culture dish plate 1: 86*129.5mm, Ф87.5mm round culture dish is adaptive Culture dish plate 2: 34*77.5mm, Ф68.5mm round culture dish is adaptive Culture dish plate 3: 57*82mm, Ф60mm round culture dish is adaptive |
Condenser | ELWD condenser with iris diaphragm＆filter, LWD 75mm |
Illumination | Halogen lamp 12V/30W, brightness adjustable | LED lamp, 9W, brightness adjustable |
Power Supply | AC85~240V, 50/60Hz |
Package Size | 655*305*630mm | 650*430*600mm |
Gross Weight | 14kg | 16kg |

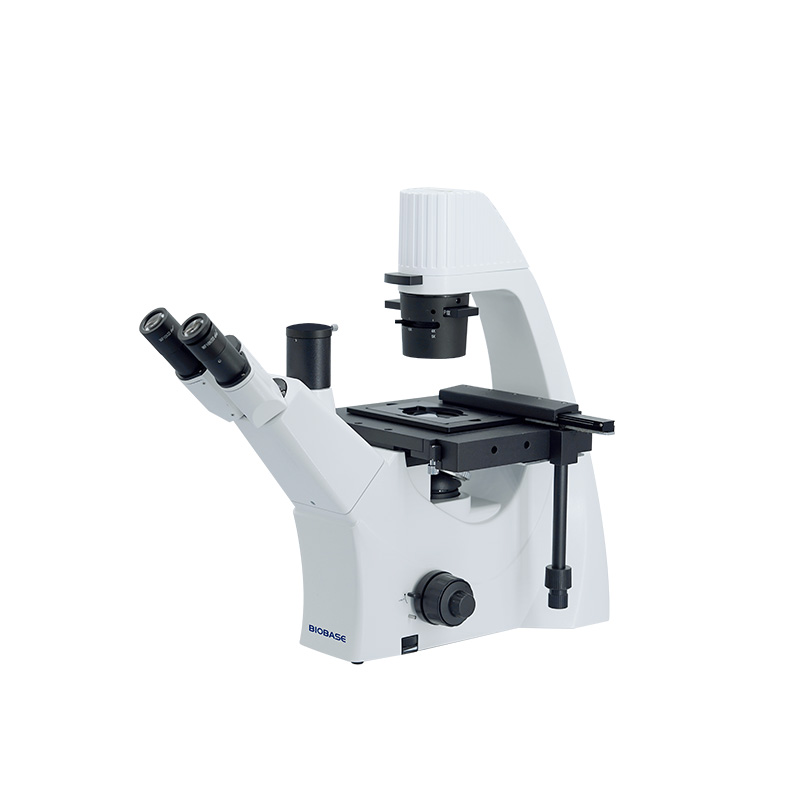

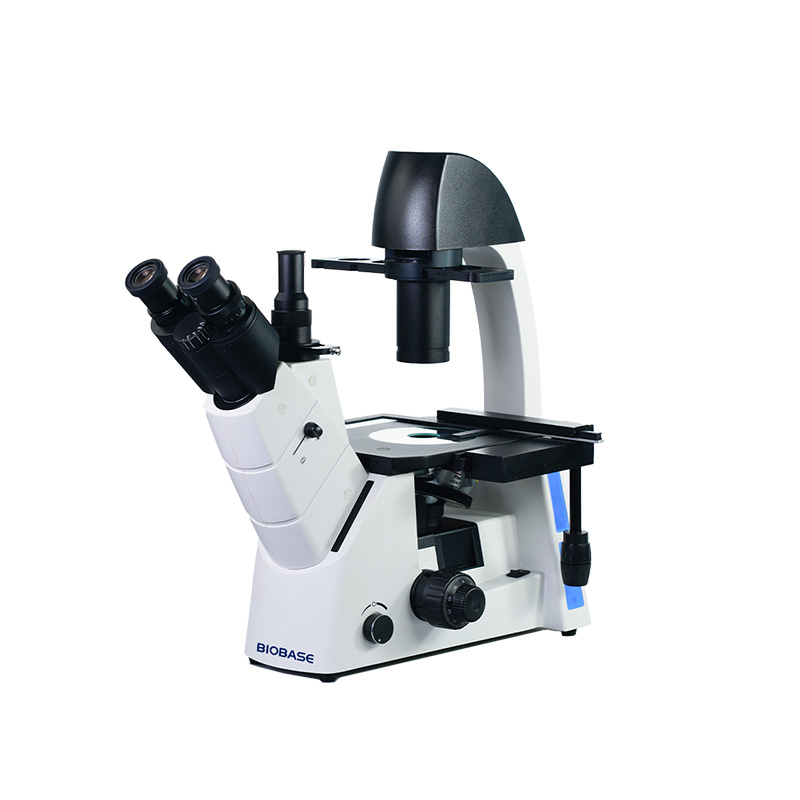

Trinocular Inverted Microscope BMI-37XC BMI-37XE — professional solution in the Microscope category
Trinocular Inverted Microscope BMI-37XC BMI-37XE is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Trinocular Inverted Microscope BMI-37XC BMI-37XE
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Trinocular Inverted Microscope BMI-37XC BMI-37XE fits easily into existing process lines and IT infrastructure.
Areas of application Microscope
Microscope solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Trinocular Inverted Microscope BMI-37XC BMI-37XE allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Trinocular Inverted Microscope BMI-37XC BMI-37XE you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Trinocular Inverted Microscope BMI-37XC BMI-37XE to the cart or contact our manager. We will help integrate Microscope into existing processes without downtime and unnecessary costs.
