Features:
* Large-volume removable waste tray on the top of housing, convenient to use.
* Imported cross-roller guide rails andhigh-precision screw motion mechanism.
* Fast switching between paraffin block clamp and cassette clamp.
* Hand-wheel balance can be precisely adjustedand can be locked at any position,ensuring safetyand convenience of sectioning.
* Blade holder can be laterally movedwithout direct contact,enabling use of the entire length of the blade. (three different segments)
* The red bar on the blade holder covers the whole length of blade to protect the user and enables easy change of the blade.
* Automatic sectioning speed is adjustable. (BK-2498only)
* Auto slicing controller ensures trimming and slicing switching easily; When it is off, semi-auto slicing or trimming is available.(BK-2498only)
* Safety and emergency braking systems (BK-2498 only)，security alarm systems, driver-overload protection and auto-sleep protection system.(For all 3 models)
* Control system with 3 modes: conventional mode, intelligence sensing mode and whole layer cutting mode.(BK-2488 only)
Models:
Model | BK-2478 | BK-2488 | BK-2498 |
Mode | Semi-automatic without intelligent sensing | Semi-automatic with intelligent sensing | Automatic or Manual Mode without intelligent sensing |
Function | Sectioning, trimming, fast forward, fast backward, quick conversion; automatic retraction (exceptBK-2478). |
Retraction Range | / | 0~50μm ( If 0 is set, retraction function is off )
5~50 (Retraction distance is optional in this range, and increment is 5μm, such as, 5, 10, 15, 25...) |
Display | LCD Display:
sectioning thickness,
trimming thickness,
slice count. | OLED Display:
sectioning thickness, trimming thickness,
slice count. | LED display:
sectioning thickness,
trimming thickness,
slice count,
slice speed. |
Sectioning Thickness Range | 0~60μm
0~1.0μm increment 0.25μm
1~10μm increment 1μm
10~20μm increment 2μm
20~60μm increment 5μm | 0.25~100μm
0.25~2.5μm increment 0.25μm
2.5~5μm increment 0.5μm
5.0~10μm increment 1μm
10~30μm increment 2μm
30~60μm increment 5μm
60~100μm increment 10μm
|
Trimming Thickness Range | 0 ~60, 0~100, 1~900μm
1~10μm increment 1μm
10~20μm increment 2μm
20~100μm increment 5μm
100~900μm increment50μm | 1~600μm
1~10μm increment 1μm
10~20μm increment 2μm
20~50μm increment 5μm
50~150μm increment 10μm
150~600μm increment 50μm
|
Whole Layer Clearance Distance(Only for BK-2488) | 10~6000μm
(10, 12, 15, 20.....6000, after 15μm, the increment is 5μm) |
Specimen HorizontalStroke | 28mm |
Specimen Vertical Stroke | 52 mm | 70mm |
Specimen Orientation | XY – 8°, rotation 360° | XY – 8°, rotation ±90° |
Mini. Sectioning Thickness | 0.25μm |
Max. Specimen Size | 50*70mm | 70*70mm |
Feed Speed | 450μm/s | 1500μm/s,3500μm/s |
Precision | ±5% |
Standard Accessory | Cassette Clamp or Paraffin Block Clamp(Paraffin BlockClamp is acquiescent) |
Consumption | 100W | 150W |
Power Supply | AC110/220V±10%, 50/60Hz |
External Size(W*D*H) | 585*410*305mm | 575*420*330mm | 580*475*340mm |
Package Size(W*D*H) | 670*550*480mm | 670*550*480mm | 680*570*500mm |
Gross Weight | 45kg | 45kg | 60kg |

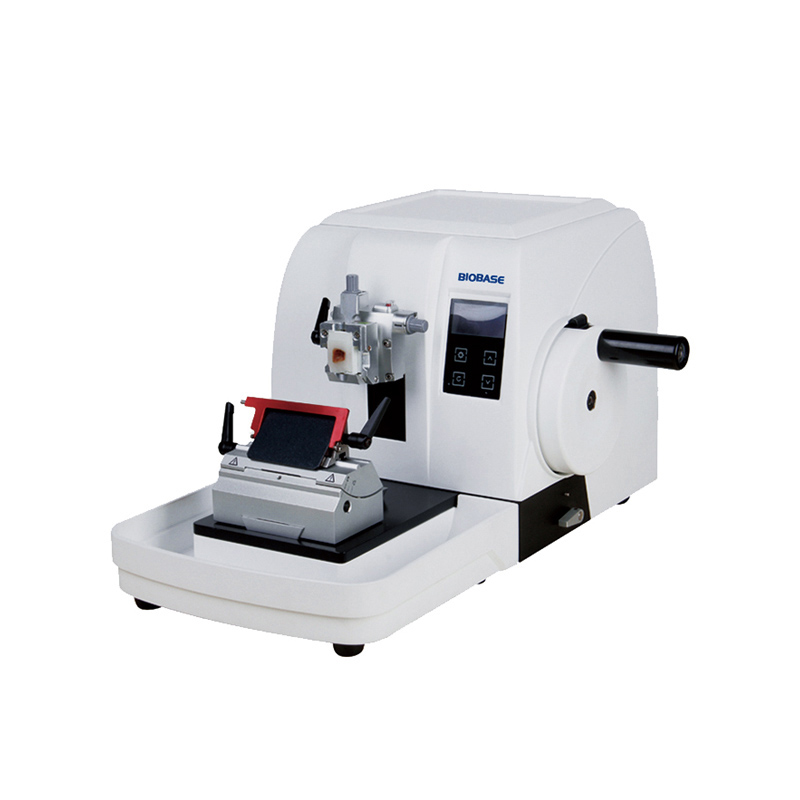

BIOBASE BK-2478 Automatic And Semi-automatic Microtome Machine — professional solution in the Microtome category
