Technical Parameters:
Model | BM-20A | BM-20AD |
Optical System | Infinite optical system |
View Head | Compensation free trinocular head, Inclined at 30°, 360° rotatable, interpupillary 55~75mm |
Eyepiece | P10X/22mm, P16X/15mm |
Infinite Plan Achromatic Objective | 4X N.A=0.10 WD=20.00mm |
10X N.A=0.25 WD=13.50mm |
40X N.A=0.65 WD=0.68mm |
100X(Oil) N.A=1.25 WD=0.20mm |
20X N.A=0.40 WD=2.00mm(Optional for BM-20AD) |
Focusing | Coaxial Coarse＆Fine Adjustable System, Range 30mm, Fine Division 0.002mm |
Stage | Double Layers Mechanical Stage 155*145mm, Moving Range 80*50mm |
Condenser | Abbe NA1.25 centerable condenser with lris Diaphragm&Filter |
Illumination | Halogen lamp 6V/20W, Kohler illumination, brightness adjustable |
Filter | Blue, yellow, green |
Imaging System | / | 500W CMOS Camera, MCL-Z adapter |
Power Supply | AC85~240V, 50/60Hz |
Package Size(L*W*H) | 430*330*430mm | 440*340*455mm |
Net Weight | 9kg | 11kg |
Gross Weight | 10kg | 12kg |

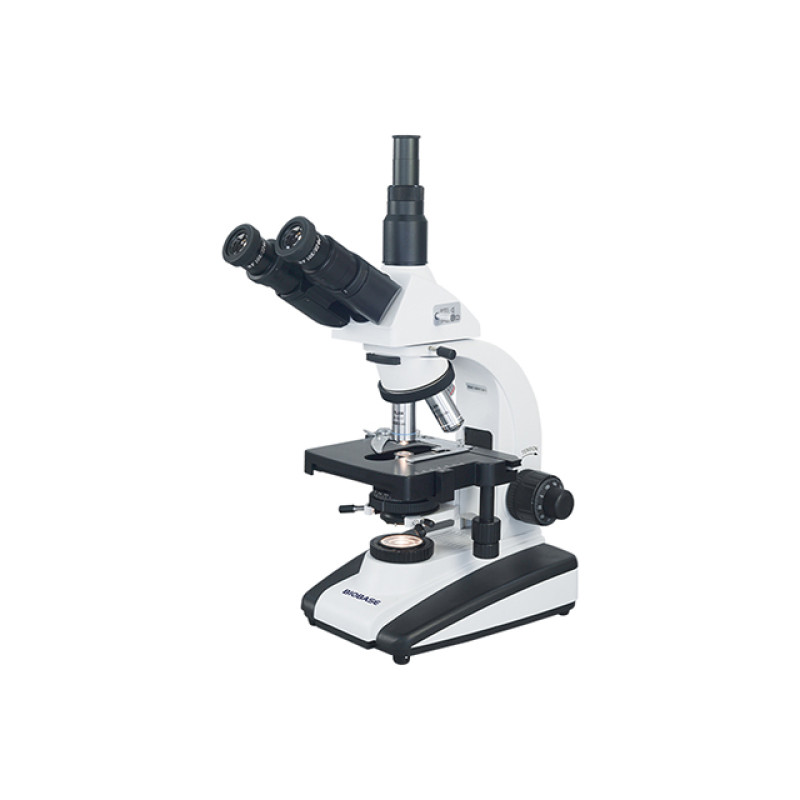

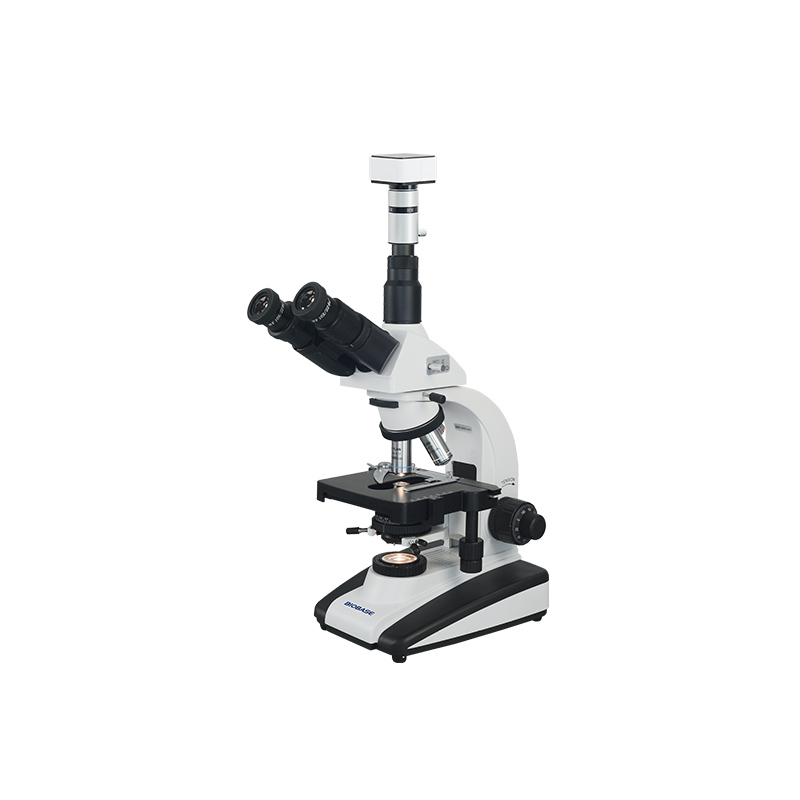

Trinocular UIS Biological Microscope BM-20A BM-20AD — professional solution in the Microscope category
Trinocular UIS Biological Microscope BM-20A BM-20AD is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Trinocular UIS Biological Microscope BM-20A BM-20AD
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Trinocular UIS Biological Microscope BM-20A BM-20AD fits easily into existing process lines and IT infrastructure.
Areas of application Microscope
Microscope solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Trinocular UIS Biological Microscope BM-20A BM-20AD allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Trinocular UIS Biological Microscope BM-20A BM-20AD you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Trinocular UIS Biological Microscope BM-20A BM-20AD to the cart or contact our manager. We will help integrate Microscope into existing processes without downtime and unnecessary costs.
