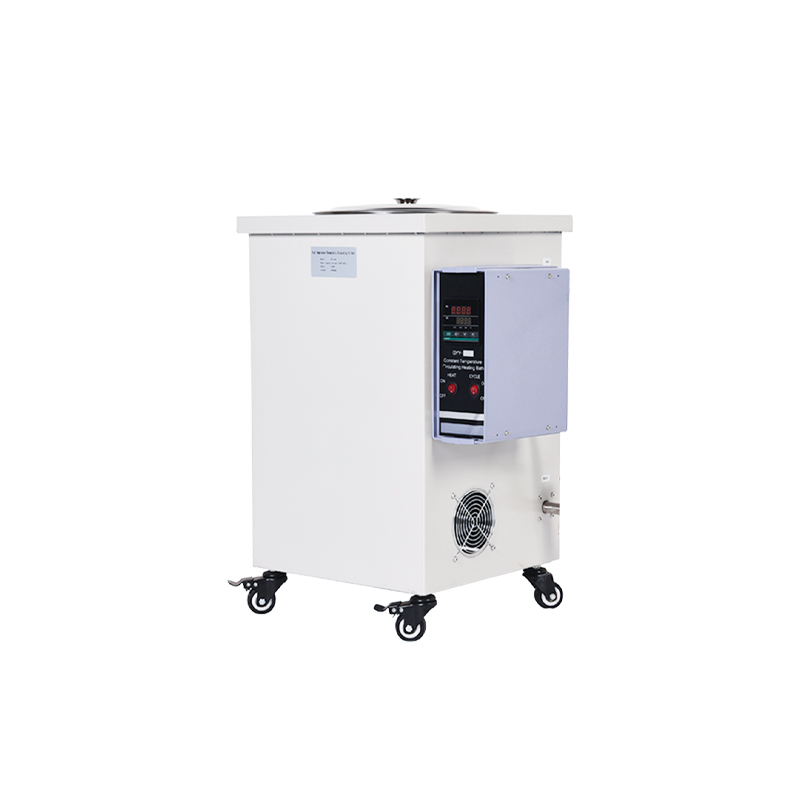

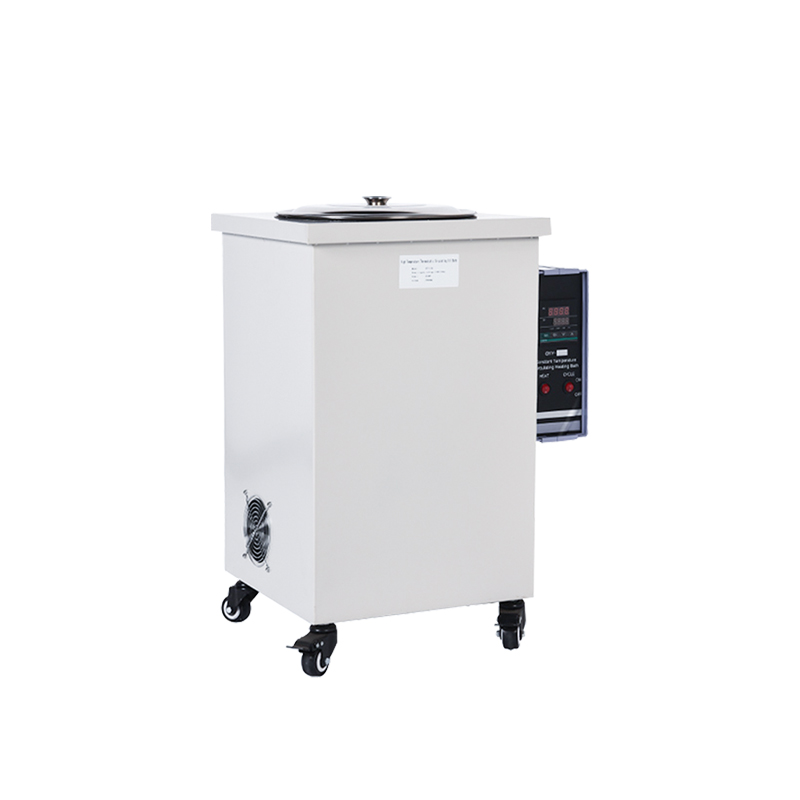

High Temperature Thermostatic Circulating Oil/Water Bath

Features:

1. The structure is compact and reasonable, the stainless steel inner tank and the outer shell are made of high-quality steel plate electrostatic spraying.

2. Easy to use and simple to operate.

3. Accurate temperature control, controllable output flow, energy saving.

4. The outer circulation interface adopts high-quality copper material, which is anti-corrosion and corrosion-resistant and durable.

Technical Parameters:

Model	OB-5L		OB-10L	OB-20L	OB-30L	OB-50L	OB-100L
Liquid Storage Volume(L)	5		10	20	30	50	100
No-load Max Temperature(℃)	200
Heating Power(kw)	2		2.8	3.5	4	5	9
Pressure	1.45MPa
Cycle Way	Sealed magnetic pump cycles
Flow Rate(L/min)	15~20			20~25
Temperature Control Range(℃)	Water Bath: RT-100; Oil Bath: RT-200
Temperature Error	≤2.50%
HTF Viscosity(c℃st)	Below 500
Optional Parts	Explosion-proof motor and electricals
No. of Heating Tube(pc)	1			2		3
Power Supply	AC220V, 50/60Hz(Standard)(Plug or air switch); AC110V, 60Hz(Optional); Air switch	AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional); Air switch				AC380V, 50/60Hz(Standard); AC220V, 50Hz(Optional); Air switch	AC380V, 50/60Hz; Air switch
Packing Size(mm)	530*460*800		580*480*740	530*440*870	550*680*850	670*570*910	740*640*1040
Gross Weight(kg)	36		38	42	48	52	63

High Temperature Thermostatic Circulating Oil/Water Bath — professional solution in the Laboratory Bath category

High Temperature Thermostatic Circulating Oil/Water Bath is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why High Temperature Thermostatic Circulating Oil/Water Bath

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: High Temperature Thermostatic Circulating Oil/Water Bath fits easily into existing process lines and IT infrastructure.

Areas of application Laboratory Bath

Laboratory Bath solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing High Temperature Thermostatic Circulating Oil/Water Bath allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with High Temperature Thermostatic Circulating Oil/Water Bath you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
