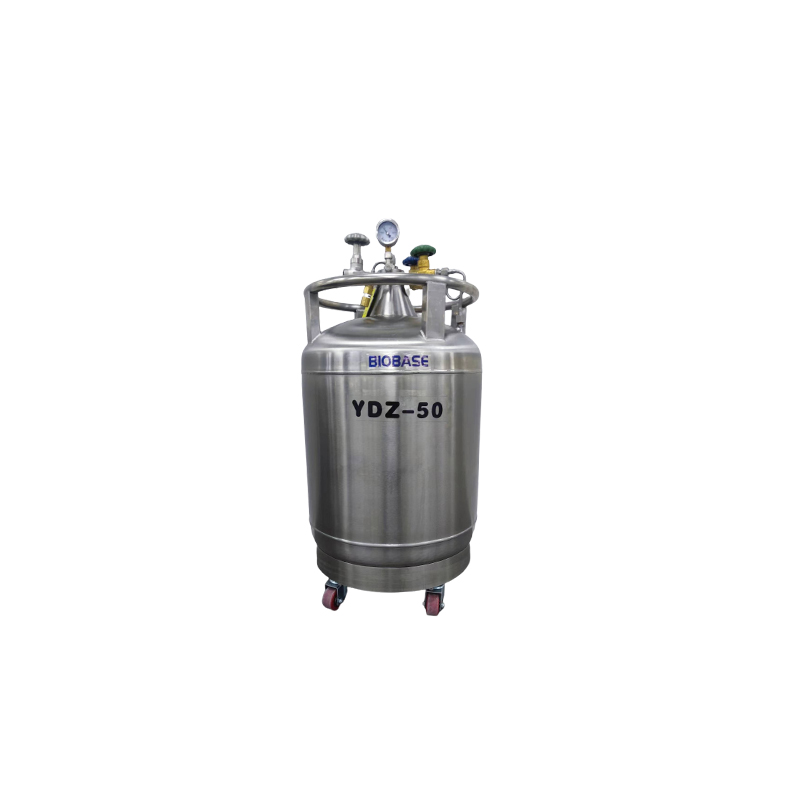

Self-pressurized Liquid Nitrogen Container YDZ Series

Features:

1. High bearing capacity casters, easy to move.

2. Vacuum warranty for 5 years.

3. Double safety automatic control valve, with double safety protection measures, it is safer to use.

4. It has continuous pressurization and continuous liquid discharge, making the liquid supply more efficient.

5. Standard float liquid level meter for YDZ-100/YDZ-200, cannot be optional for YDZ-30/YDZ-50.

6. Made of high-quality 304 stainless steel, the ultra-low temperature globe valve is easier to operate, durable and beautiful.

Technical Parameters:

Model	Unit	YDZ-30	YDZ-50	YDZ-100	YDZ-200
Capacity	L	30	50	100	200
Caliber	mm	50	50	50	50
Empty Weight	kg	56	62.5	85	136.8
Outer Diameter	mm	404	454	556	656
Height	mm	885	998	1120	1330
Static Evaporation Rate	%	2.5	2	1.3	1.2
Standard Working Pressure	MPa	0.05	0.05	0.05	0.05
Maximum Working Pressure	MPa	0.09	0.09	0.09	0.09
Primary Safety Valve Opening Pressure	MPa	0.099	0.099	0.099	0.099
Second Safety Valve Opening Pressure	MPa	0.15	0.15	0.15	0.15
Pressure Gauge Range	MPa	0~0.25	0~0.25	0~0.25	0~0.25
Standard Accessory	pc	1pc of 1.5m liquid nitrogen output hose
Package Size	mm	465*465*1035	505*505*1135	615*615*1290	700*700*1450
Gross Weight	kg	68	78.5	85	154.8

Self-pressurized Liquid Nitrogen Container YDZ Series — professional solution in the Liquid Nitrogen Container category

Self-pressurized Liquid Nitrogen Container YDZ Series is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Self-pressurized Liquid Nitrogen Container YDZ Series

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Self-pressurized Liquid Nitrogen Container YDZ Series fits easily into existing process lines and IT infrastructure.

Areas of application Liquid Nitrogen Container

Liquid Nitrogen Container solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Self-pressurized Liquid Nitrogen Container YDZ Series allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Self-pressurized Liquid Nitrogen Container YDZ Series you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
