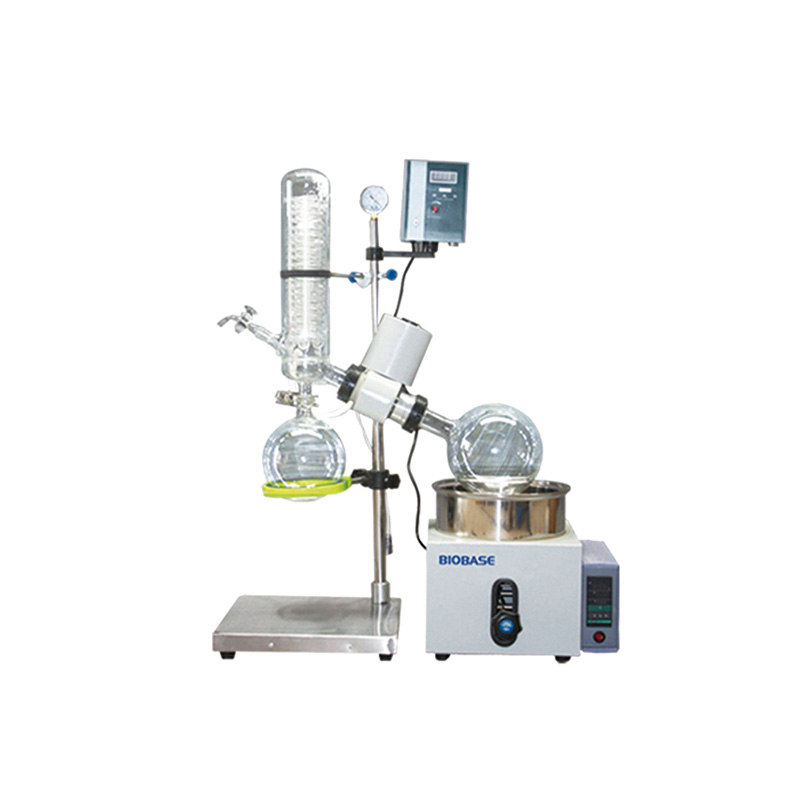

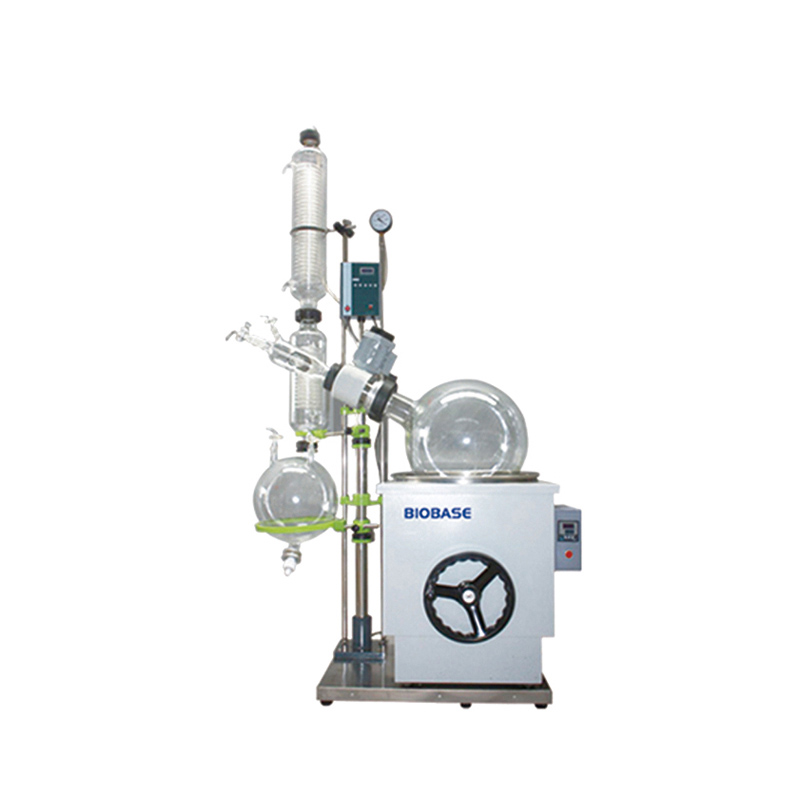

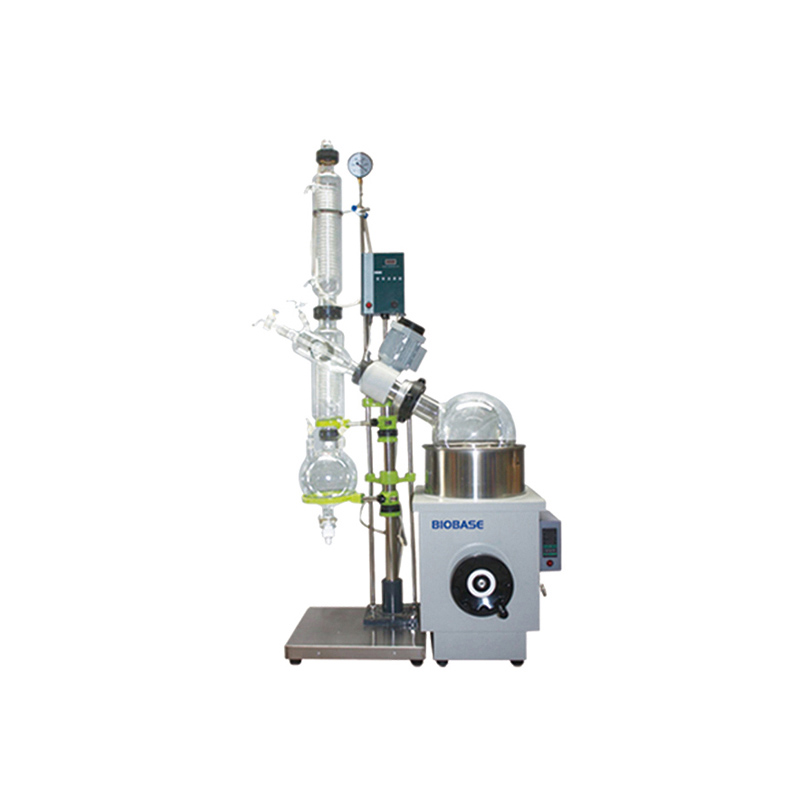

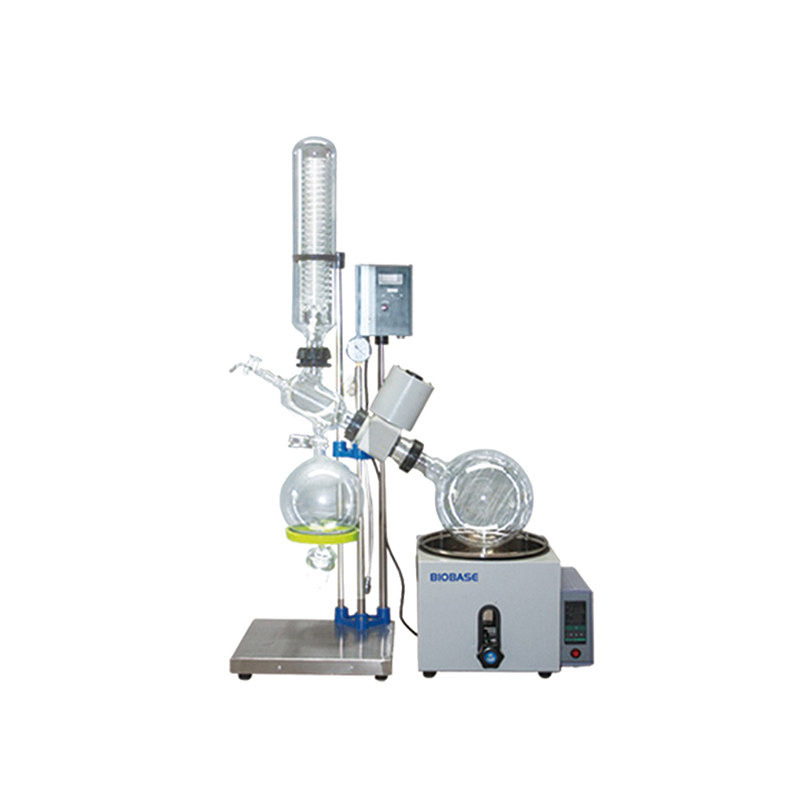

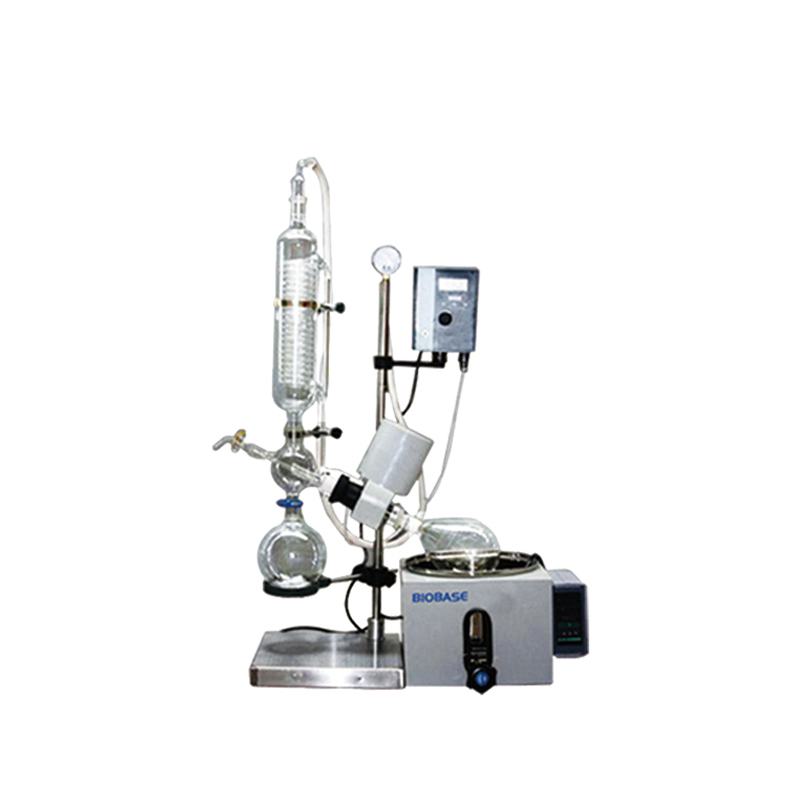

Rotary Evaporator RE-201D RE-301 RE-501 RE-1002 RE-2002 RE-5003

Features:

1. Electronic stepless speed controll.

2. LED display.

3. Optional explosion-proof function.(eg: RE-301, RE-501, RE-3002, RE-5003).

Technical Parameters:

Model	RE-201D	RE-301	RE-501	RE-1002	RE-2002	RE-5003
Rotary Bottle	1L 24#(Standard mouth)	3L(Flange φ50)	5L(Flange φ50)	10L(Flange φ95)	20L(Flange φ95)	50L(Flange φ125)
Collecting Bottle	1L 35#(Standard mouth)	2L 35#(Ball mill mouth)	3L 35#(Ball mill mouth)	5L(Flange φ60~50)	10L(Flange φ60)	20L(Flange φ60~50)
Condenser	Vertical φ85*430mm, 35#(Ball mill mouth)	Vertical φ100*530mm	Vertical φ100*530mm	Vertical three backflow  φ120*620mm(main), φ135*475mm(SUB)	Vertical three backflow φ130*700mm(main), φ160*530mm(SUB)	Vertical three Backflow φ160*835mm(main), φ160*530mm(SUB)
Charging Valve	19#(Standard size）			34#(Standard size）		40#(Standard size）
Rotary Speed	0~120rpm
Vacuum	0.098Mpa			0.095Mpa
Temp. Range	RT~180℃
Temp. Accuracy	±1℃
Stroke Height	200mm			180mm
Rotary Power	40W	40W		120W		180W
Heating Power	1KW	2KW		3KW	5KW	8KW
Shelf Material	Stainless steel			Coating anticorrosive
Chamber Material	SS 245*140mm	SS 265*160mm	SS 280*170mm	SS 350*220mm	SS 450*260mm	SS 550*320mm
Plate size	280*330mm	350*330mm		534*504mm	474*474mm	550*320mm
Power Supply	AC220/110V±10%, 50/60Hz				AC220V±10%, 50/60Hz	AC380V/220V±10%, 50Hz
External Size(mm)	700*330*785	740*330*970	760*330*1030	930*560*1910	1000*600*2130	1330*730*2340
Package Size(mm)	600*460*470	990*640*470		1320*780*755	1350*670*720 680*680*790	1420*820*720 830*730*910
Gross Weight	21kg	40kg	42kg	107kg	136kg	186kg
Standard Accessory	1L rotary bottle*1, 1L collecting bottle*1	3L rotary bottle*1, 2L collecting bottle*1	5L rotary bottle*1, 3L collecting bottle*1,	10L rotary bottle*1, 5L collecting bottle *1	20L rotary bottle*1, 10L collecting bottle *1	50L rotary bottle*1, 20L collecting bottle *1
Optional Accessory	Transparent bath cover, Explosion-proof transducer	Explosion-proof transducer, Explosion-proof motor EX40W		Explosion-proof transducer, Double collection bottle, Auto-lifting, Explosion-proof motor EX120W
	Vacuum pump, Recirculating chiller

Rotary Evaporator RE-201D RE-301 RE-501 RE-1002 RE-2002 RE-5003 — professional solution in the Rotary Evaporator category

Rotary Evaporator RE-201D RE-301 RE-501 RE-1002 RE-2002 RE-5003 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Rotary Evaporator RE-201D RE-301 RE-501 RE-1002 RE-2002 RE-5003

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Rotary Evaporator RE-201D RE-301 RE-501 RE-1002 RE-2002 RE-5003 fits easily into existing process lines and IT infrastructure.

Areas of application Rotary Evaporator

Rotary Evaporator solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Rotary Evaporator RE-201D RE-301 RE-501 RE-1002 RE-2002 RE-5003 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Rotary Evaporator RE-201D RE-301 RE-501 RE-1002 RE-2002 RE-5003 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
