Features:
1. With memory function in case of power-failure.
2. Adjustable air speed.
3. Motorized front window, height adjustable.
4. The operation area adopts Compact Laminate board, with high corrosion resistance.
Technical Parameters:
Model | FH700(L) | FH1000(L) | FH1100(L) | FH1200(L) | FH1300(L) | FH1500(L) | FH1800(L) |
External Size(W*D*H)mm(Tabletop Type) | 700*650*1260 | 1000*800*1260 | 1100*800*1260 | 1200*800*1260 | 1300*800*1260 | 1500*800*1260 | 1800*800*1260 |
External Size(W*D*H)mm(Integral Type) | 700*650*2000 | 1000*800*2000 | 1100*800*2000 | 1200*800*2000 | 1300*800*2000 | 1500*800*2000 | 1800*800*2000 |
Internal Size(W*D*H)mm | 580*570*835 | 880*720*835 | 980*720*835 | 1080*720*835 | 1180*720*835 | 1380*720*835 | 1680*720*835 |
Airflow Pattern | Negative pressure exhaust |
Max Opening | 500mm |
Air Velocity | 0.3~0.8m/s |
System Exhaust Volume | 420m³/h | 630m³/h | 700m³/h | 770m³/h | 840m³/h | 980m³/h | 1190m³/h |
Noise | ≤68dB |
LED Lamp | 4W*2 | 8W | 12W | 16W |
Illumination | ≥300lx |
Vibration | Amplitude≤5μm |
Consumption | 400W |
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
Exterior Material | Cold-rolled steel with anti-bacteria power coating, electrostatic spraying |
Interior Material | 5mm compact laminate board |
Standard Accessories(Tabletop Type) | Socket, fan, LED light, 300*5m PVC pipe |
Standard Accessories(Integral Type) | Socket, fan, LED light, 300*5m PVC pipe, Base cabinet, Solid core physical and chemical board |
Optional Accessory(Integral Type) | Water tap, Gas tap, Water sink |
Number of Users | 1 | 1 | 1~2 | 2~3 |
Gross Weight(Tabletop Type) | 85 | 124 | 135 | 146 | 153 | 174 | 198 |
Gross Weight(Integral Type) | 110 | 160 | 169 | 179 | 190 | 211 | 236 |
Package Size(W*D*H)mm(Tabletop Type) | 840*790*1460 | 1140*940*1460 | 1240*940*1460 | 1340*940*1460 | 1440*940*1460 | 1640*940*1460 | 1940*940*1460 |
Package Size(W*D*H)mm(Integral Type) | 840*950*1460 | 1140*1100*1460 | 1240*1100*1460 | 1340*1100*1460 | 1440*1100*1460 | 1640*1100*1460 | 1940*1100*1460 |

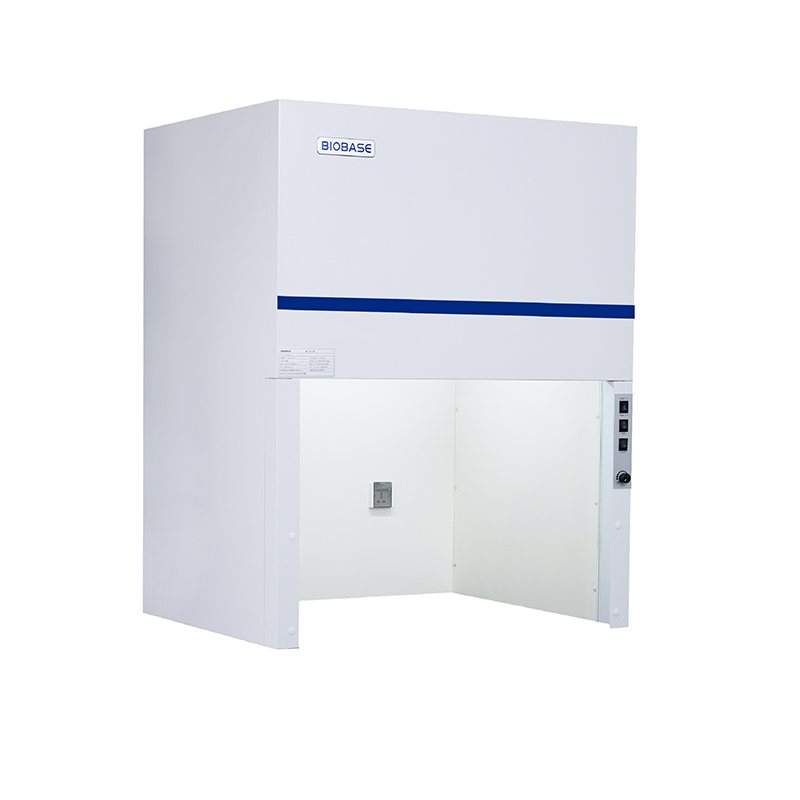

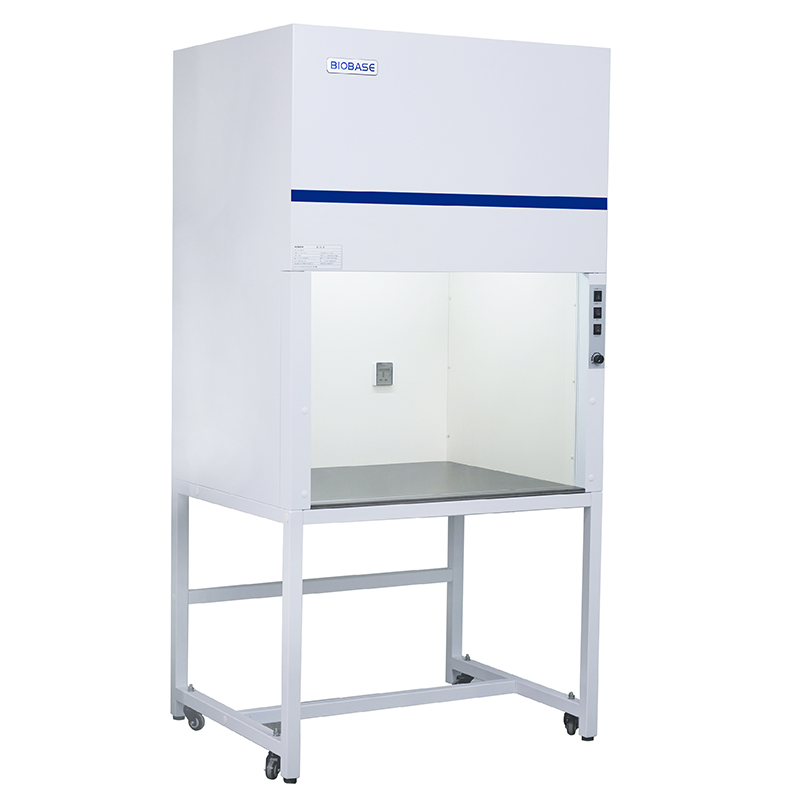

Ducted Fume Hood FH700(L) FH1000(L) FH1100(L) FH1200(L) FH1300(L) FH1500(L) FH1800(L) — professional solution in the Fume Hood category
Ducted Fume Hood FH700(L) FH1000(L) FH1100(L) FH1200(L) FH1300(L) FH1500(L) FH1800(L) is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Ducted Fume Hood FH700(L) FH1000(L) FH1100(L) FH1200(L) FH1300(L) FH1500(L) FH1800(L)
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Ducted Fume Hood FH700(L) FH1000(L) FH1100(L) FH1200(L) FH1300(L) FH1500(L) FH1800(L) fits easily into existing process lines and IT infrastructure.
Areas of application Fume Hood
Fume Hood solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Ducted Fume Hood FH700(L) FH1000(L) FH1100(L) FH1200(L) FH1300(L) FH1500(L) FH1800(L) allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Ducted Fume Hood FH700(L) FH1000(L) FH1100(L) FH1200(L) FH1300(L) FH1500(L) FH1800(L) you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Ducted Fume Hood FH700(L) FH1000(L) FH1100(L) FH1200(L) FH1300(L) FH1500(L) FH1800(L) to the cart or contact our manager. We will help integrate Fume Hood into existing processes without downtime and unnecessary costs.
