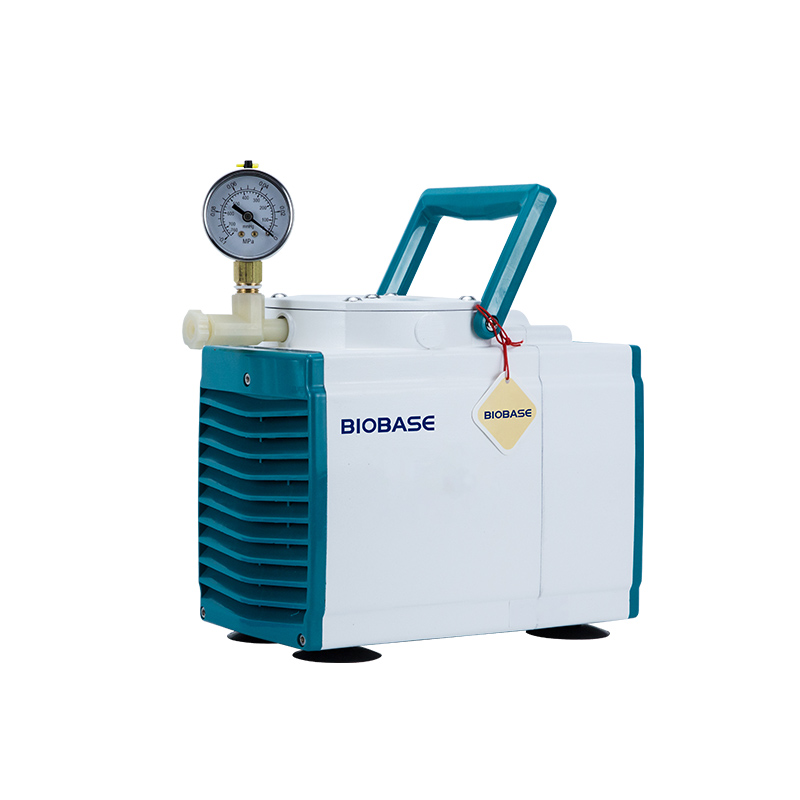

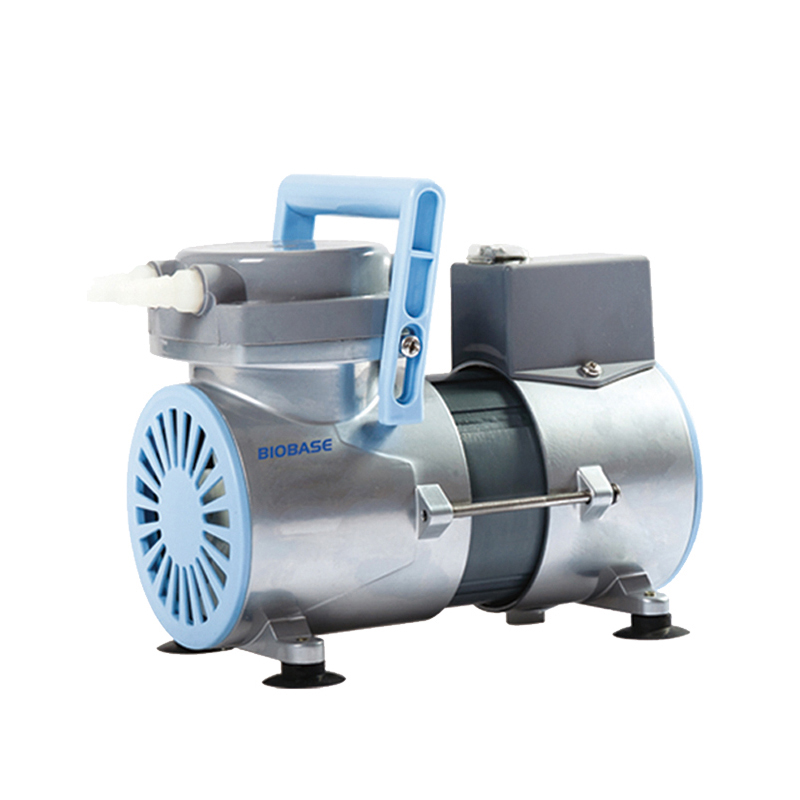

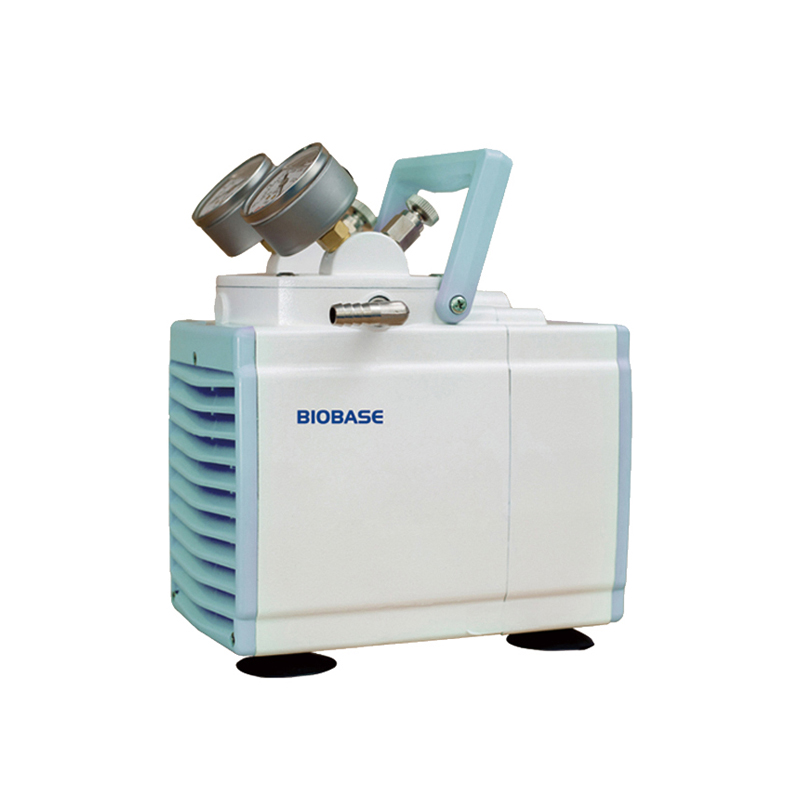

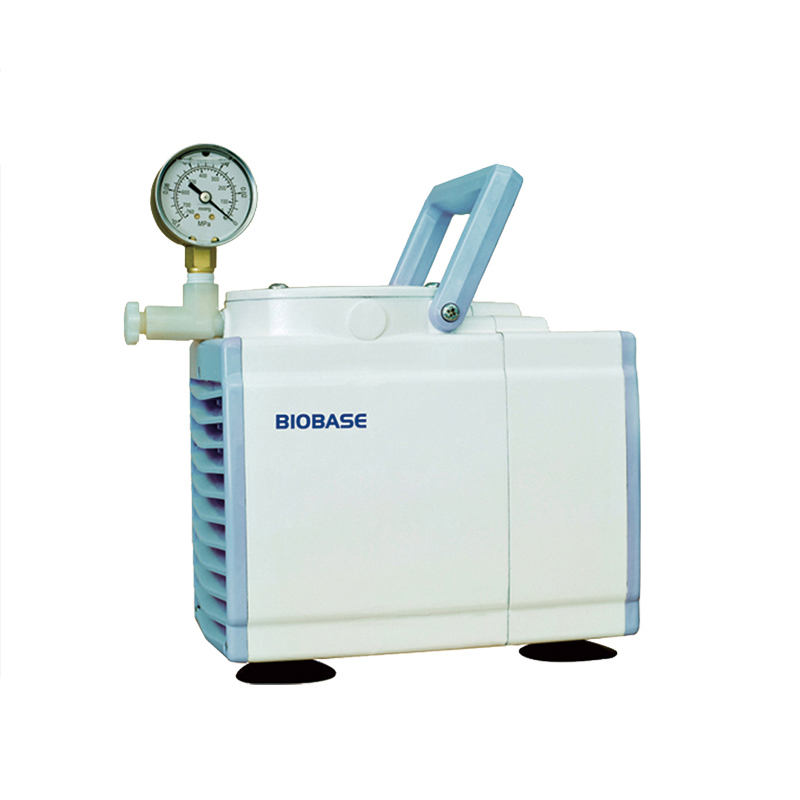

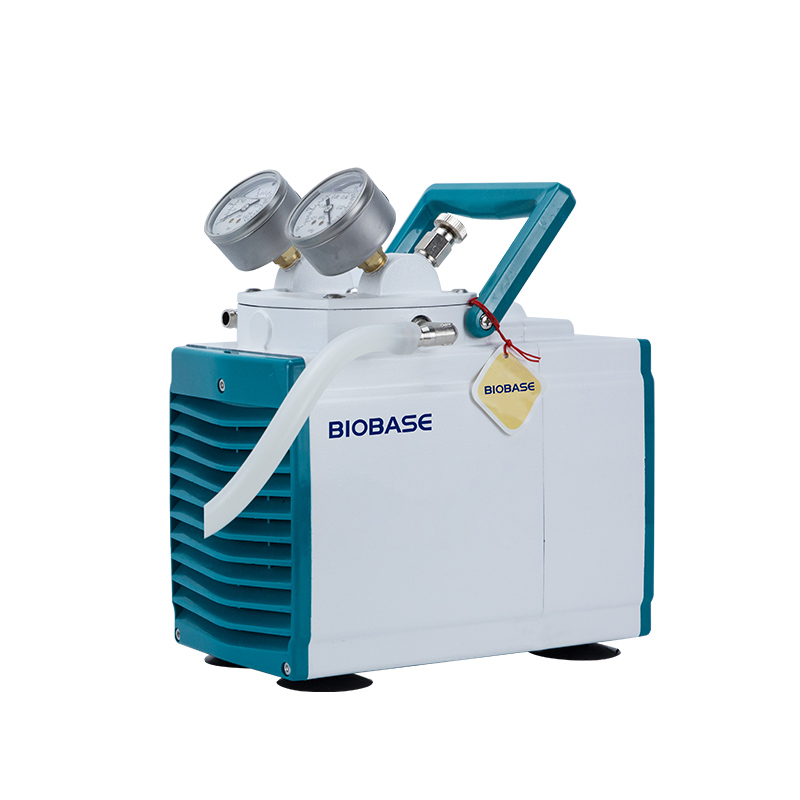

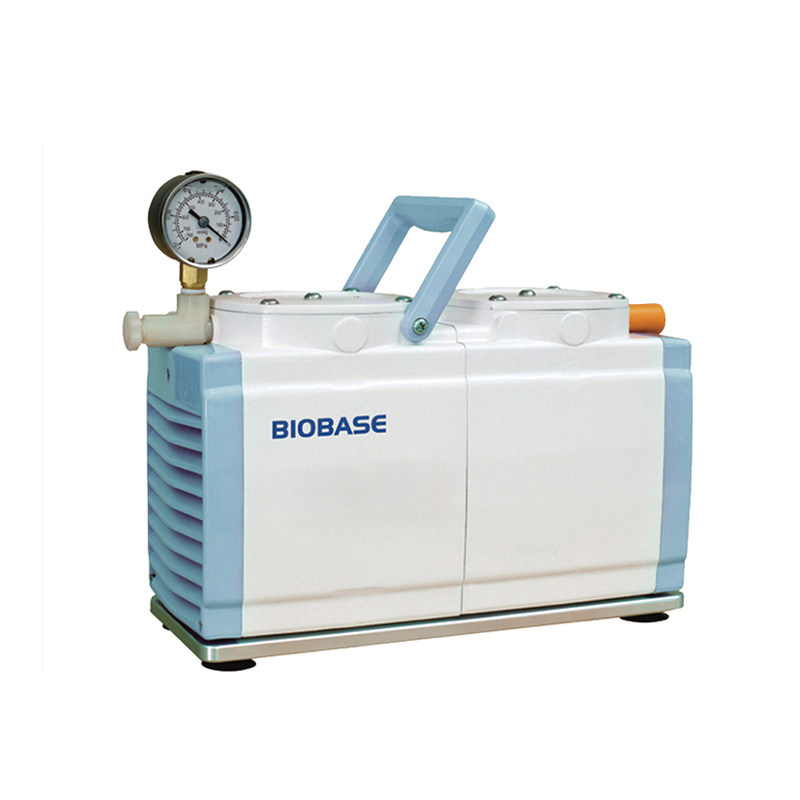

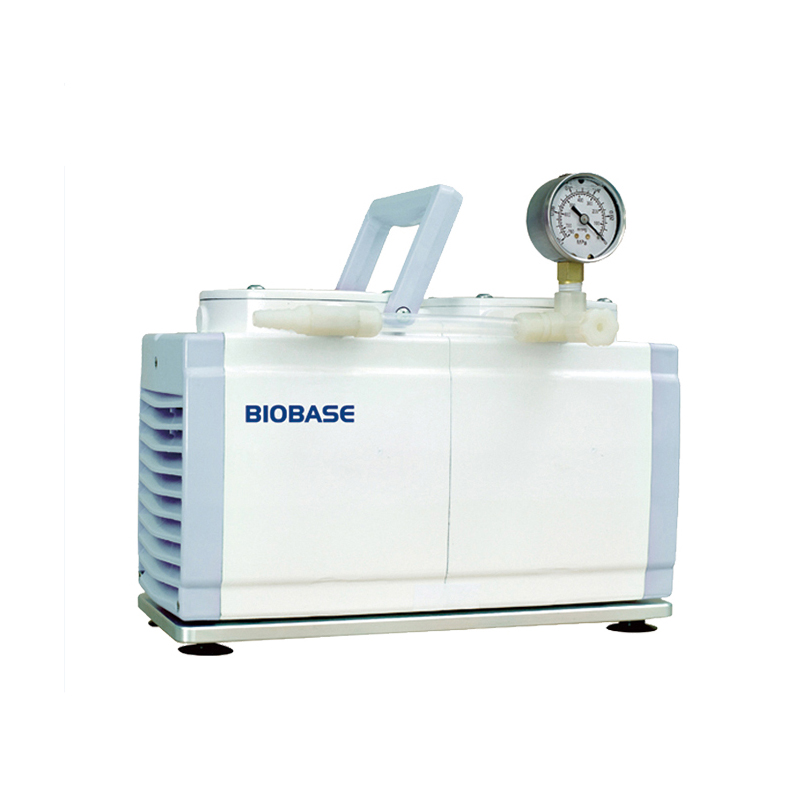

Laboratory Vacuum Pump GM-0.20 GM-0.5II GM-0.5IIP GM-0.5 GM-0.5P GM-0.33II GM-0.33IIP GM-1.0 GM-1.0P

Features:

1. Oil free, clean exhausted air by built- in filter.

2. Automatic cooling exhaust system ensures 24h operation continuously.

3. The pressure adjustable design can satisfy a certain range of vacuum and gas velocity.(This function does not apply to model GM-0.20)

4. TEFLON surface treatment, anti-gas corrosion.

5. Anticorrosive vacuum pump: GM-0.33IIP, GM-0.5P, GM-0.5IIP, GM-1.0P.

Technical Parameters:

Model	GM-0.20	GM-0.5II GM-0.5IIP	GM-0.5 GM-0.5P	GM-0.33II  GM-0.33IIP	GM-1.0 GM-1.0P
Pump Head	1	2	1	1	2
Speed of Evacuation	15L/Min	30L/Min		20L/Min	60L/Min
Ultimate Pressure	0.075Mpa	0.095Mpa	0.08Mpa
Vacuum	250mbar	50mbar	200mbar
Pressure	30 psi positive or negative pressure	Negative pressure	30 positive,  positive or  negative  pressure	Negative pressure	30 positive,  positive or  negative  pressure
Inlet	φ6mm
Outlet	φ6mm	Silencer	φ6mm	Silencer	φ6mm
Working Temp.	7~40℃
Body Temp.	<55℃
Noise Level	<60dB
Motor Power	75W	160W
Power Consumption	AC110/220V±10%, 50/60Hz
Diaphragm	NBR
Valves	/	NBR
Net Weight(kg)	4	10	6.6	6.2	10
Gross Weight(kg)	4.44	10.25	8.4	8.17	10.38
External Size(L*W*H)mm	195*98*156	300*120*235	210*160*235	215*120*235	300*160*235
Package Size(L*W*H)mm	325*210*230	410*230*345	400*220*330	355*215*375	415*255*340





Laboratory Vacuum Pump GM-0.20 GM-0.5II GM-0.5IIP GM-0.5 GM-0.5P GM-0.33II GM-0.33IIP GM-1.0 GM-1.0P — professional solution in the Vacuum Pump category

Laboratory Vacuum Pump GM-0.20 GM-0.5II GM-0.5IIP GM-0.5 GM-0.5P GM-0.33II GM-0.33IIP GM-1.0 GM-1.0P is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Laboratory Vacuum Pump GM-0.20 GM-0.5II GM-0.5IIP GM-0.5 GM-0.5P GM-0.33II GM-0.33IIP GM-1.0 GM-1.0P

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Laboratory Vacuum Pump GM-0.20 GM-0.5II GM-0.5IIP GM-0.5 GM-0.5P GM-0.33II GM-0.33IIP GM-1.0 GM-1.0P fits easily into existing process lines and IT infrastructure.

Areas of application Vacuum Pump

Vacuum Pump solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Laboratory Vacuum Pump GM-0.20 GM-0.5II GM-0.5IIP GM-0.5 GM-0.5P GM-0.33II GM-0.33IIP GM-1.0 GM-1.0P allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Laboratory Vacuum Pump GM-0.20 GM-0.5II GM-0.5IIP GM-0.5 GM-0.5P GM-0.33II GM-0.33IIP GM-1.0 GM-1.0P you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
