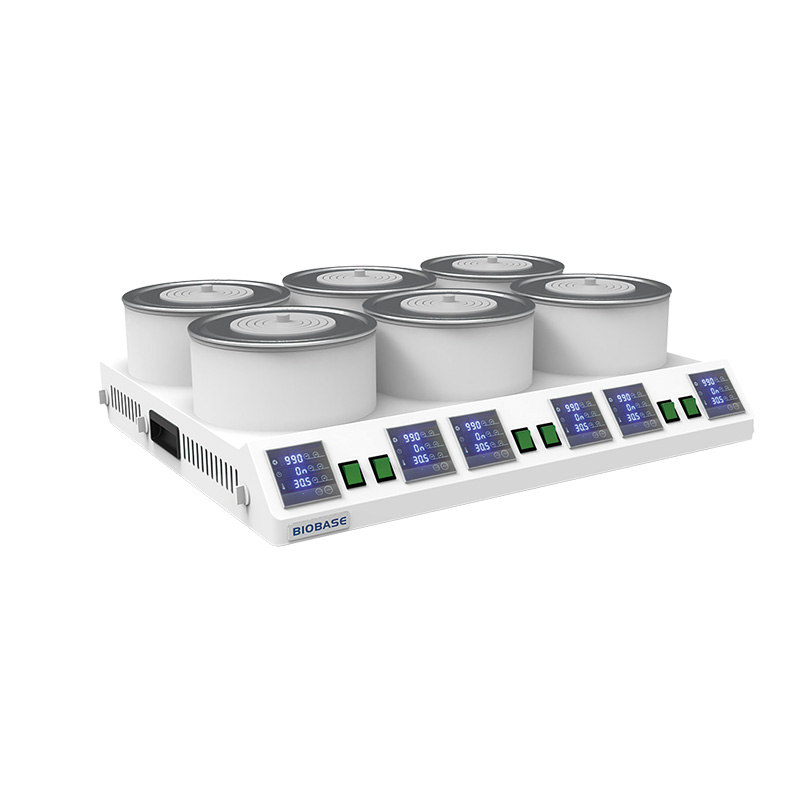

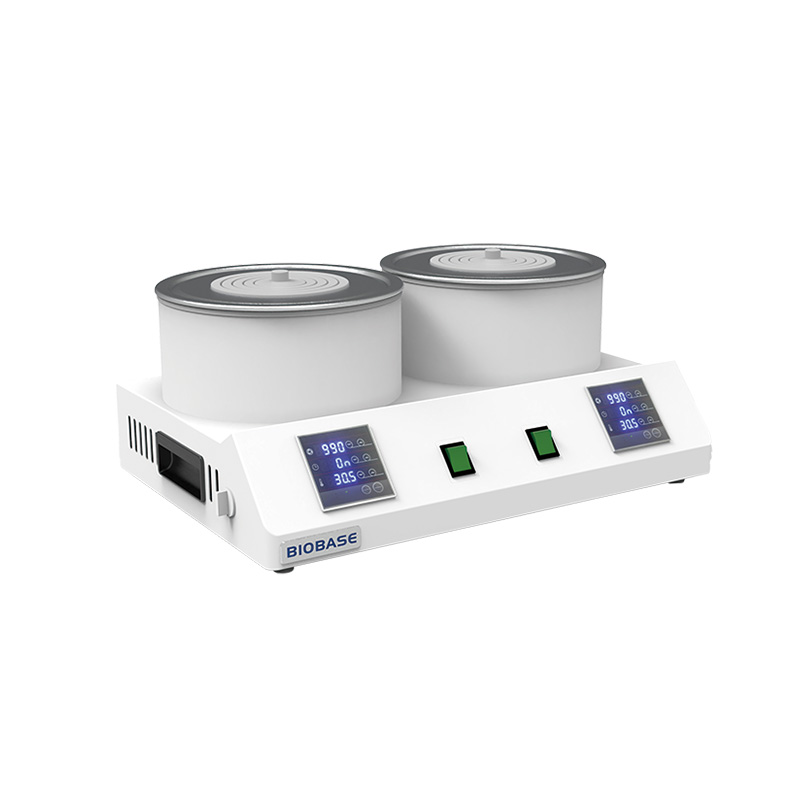

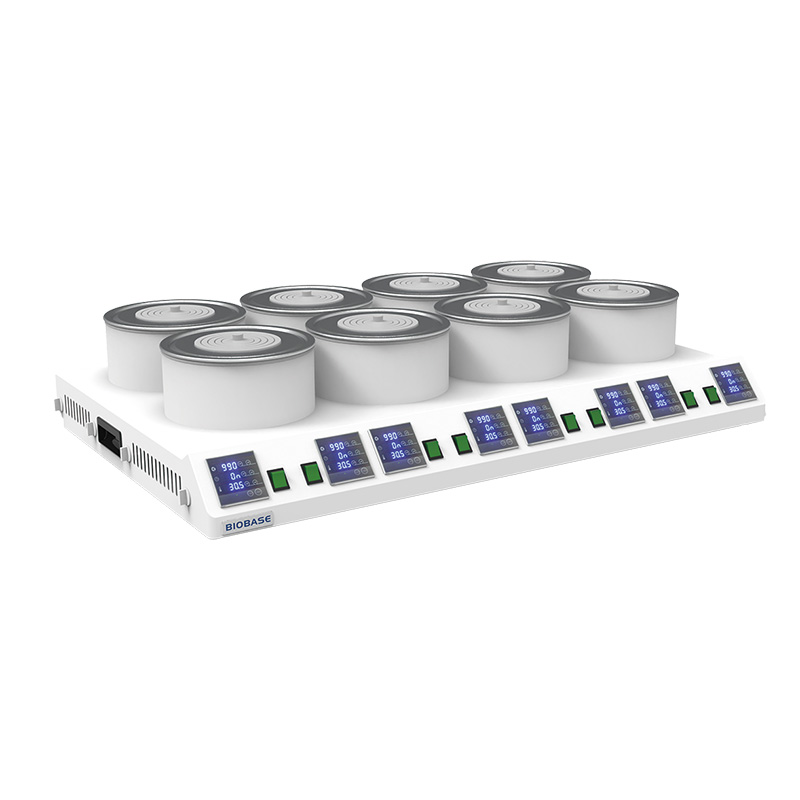

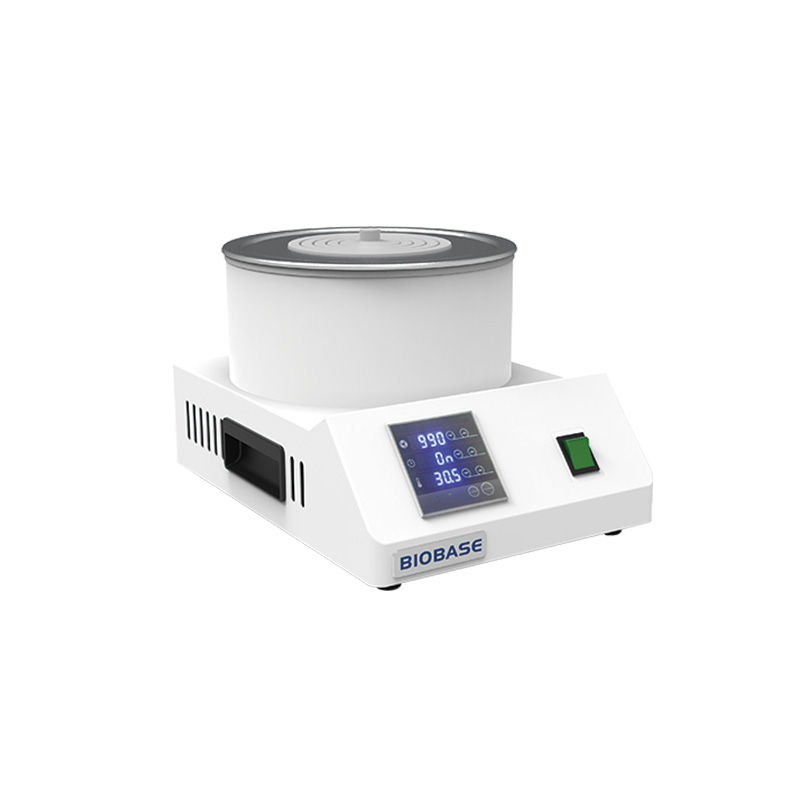

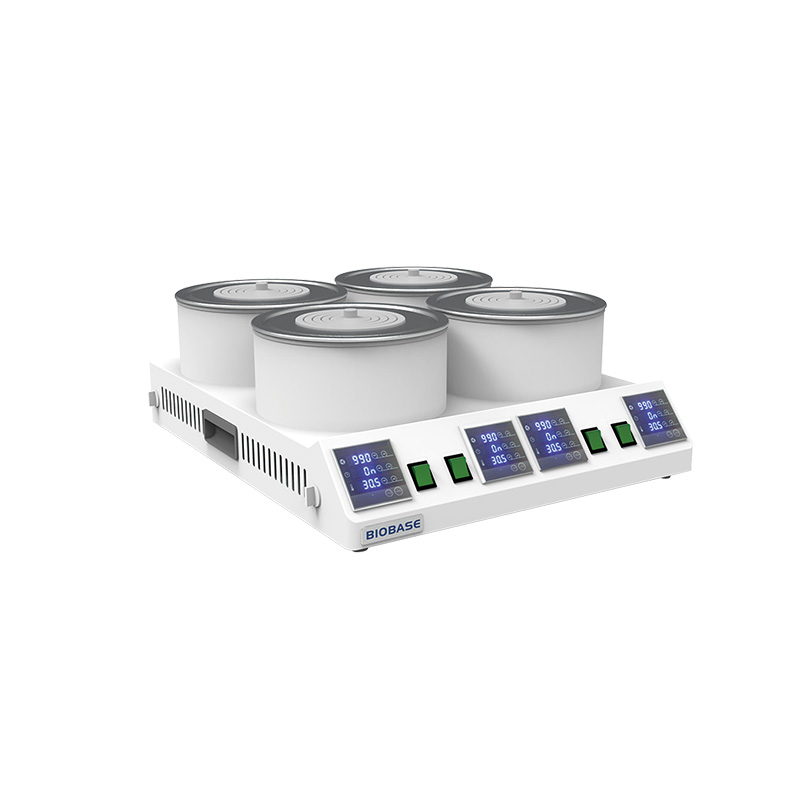

Magnetic Stirring Water Bath

Features:

1. Adopt intelligent digital instrument, high temperature control accuracy, can set temperature, speed and timing working time, intuitive and accurate, clear at a glance.

2. Adopt program-controlled integrated voltage stabilization circuit, high-quality DC motor, low noise, stable speed, speed is not affected by voltage fluctuations.

3. Adopt fully enclosed ring heater, uniform heating.

4. The inner tank is made of 304 stainless steel, which has excellent corrosion resistance.

5. Constant temperature heating and stirring of multiple samples at the same time can realize multiple-hole individual stirring and multiple-hole individual temperature control.

6. The stirring rod made of polytetrafluoroethylene and high-quality magnetic steel is resistant to high temperature, wear and chemical corrosion.

Technical Parameters:

Model	MSW-SCG1	MSW-SCG2		MSW-SCG4		MSW-SCG6		MSW-SCG8
Display	LED Display
Temp. Range	RT~100℃
Temp. Precision	≤±0.5℃(Above 90℃, it is ±1℃)
Stirring Speed	80~2000rpm
Timing Range	0~9999min
Temperature Control Mode	Digital display temperature control, built-in temperature sensor
Speed Control Mode	Digital display speed control
Heating Consumption	400W		400W*2		400W*4		400W*6		400W*8
Stirring Consumption	25W		25W*2		25W*4		25W*6		25W*8
Power Supply	Standard: AC220, 50/60Hz; Optional: AC110, 50/60Hz
Chamber Size	φ220*100mm	φ220*100mm*2		φ220*100mm*4		φ220*100mm*6		φ220*100mm*8
External Size(L*W*H)	340*250*220mm	500*340*220mm		590*500*220mm		750*600*220mm		1050*650*220mm
Packing Size(L*W*H)	400*310*285mm	560*400*285mm		630*560*285mm		810*660*285mm		1110*710*285mm
Gross Weight	5kg	10kg		18kg		25kg		35kg

Magnetic Stirring Water Bath — professional solution in the Stirrer category

Magnetic Stirring Water Bath is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Magnetic Stirring Water Bath

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Magnetic Stirring Water Bath fits easily into existing process lines and IT infrastructure.

Areas of application Stirrer

Stirrer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Magnetic Stirring Water Bath allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Magnetic Stirring Water Bath you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
