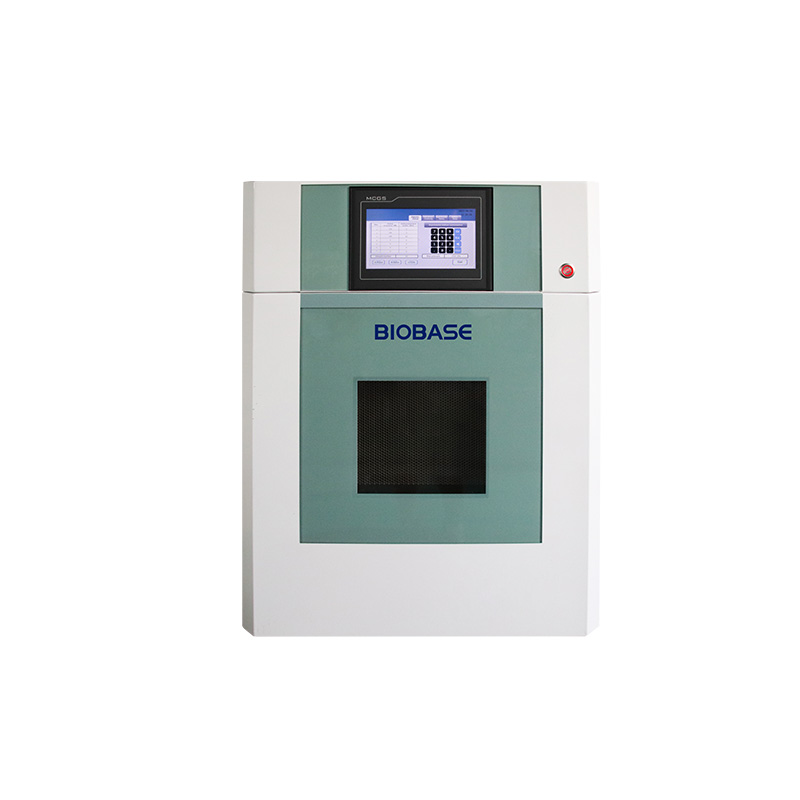

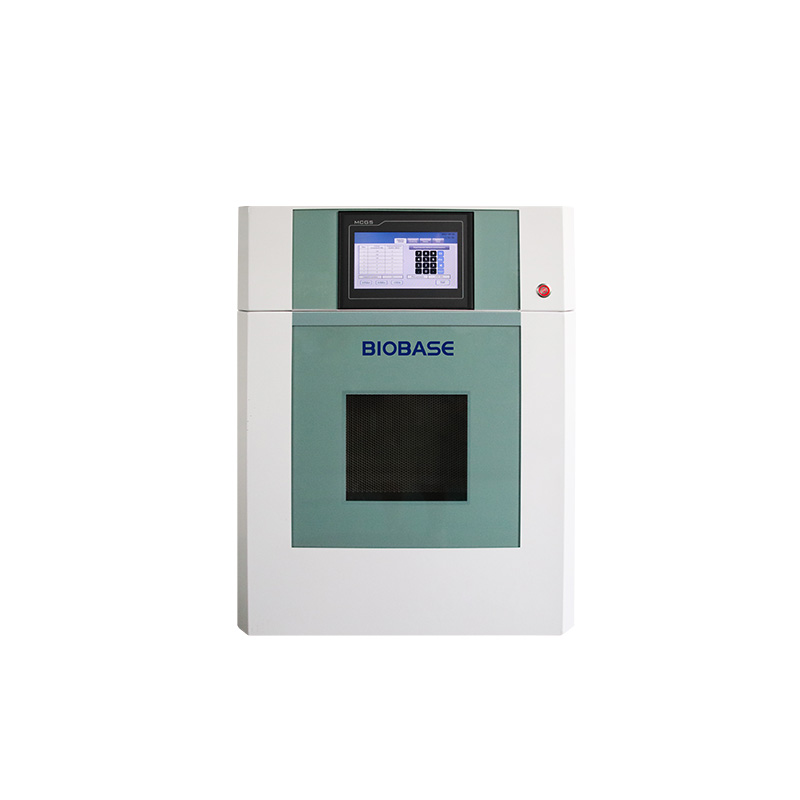

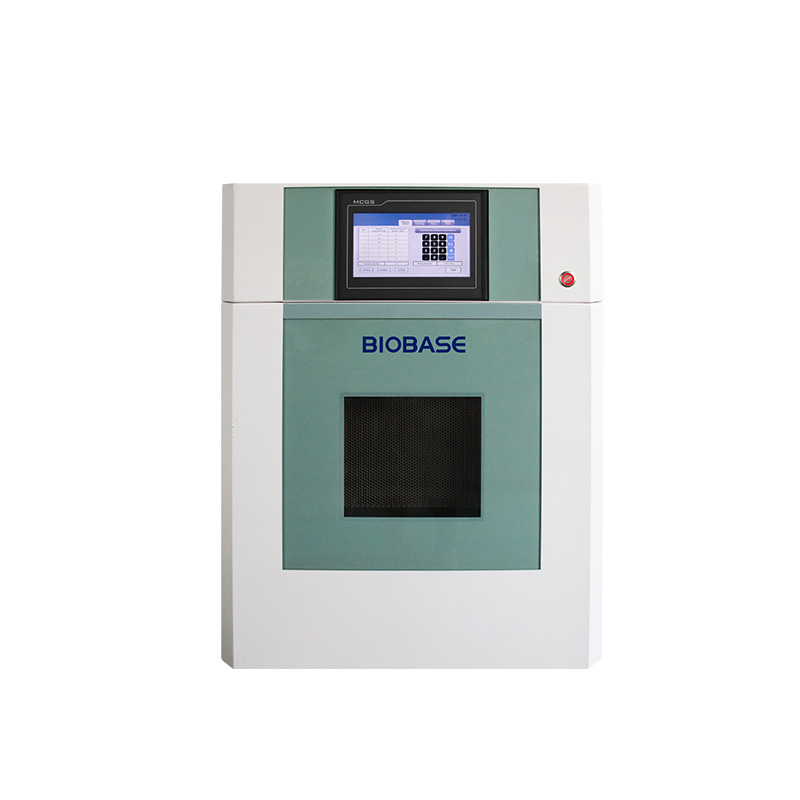

Microwave Digester BMD-10H BMD-12H BMD-Z40

Features:

1. Microwave non-pulse continuous automatic frequency conversion control, 0~100% automatic output.

2. Vertical bidirectional wave guide design, 3D output technology, and matching harmonic power frequency achieve a high degree of field uniformity.

3. SUS316 stainless steel chamber.

4. Self-locking buffer explosion-proof furnace door, when the reaction is abnormal, buffer structure to ensure the operator's personal safety and integrity of the door structure.

5. 8"TFT-LED touch screen display the temperature and pressure curve in real time.

6. 360° continuous rotation in the same direction, microwave uniformity, to ensure that the microwave environment of each sample is the same, improve the consistency of experimental results.

7. Non-contact infrared temperature control system and non-contact pressure control system.

8. Exhaust and cooling system: acid-resistant centrifugal fan, exhaust air volume is not less than 5m3/min; With air cooling function, continuous cooling for the reaction vessel, temperature and pressure real-time display.

9. With fault self-test system, when the temperature or pressure control system fails, the instrument will automatically cut off the microwave emission, and alarm.

10. The material is TFM for the inner vessel and PEEK aerospace composite material for the vessel explosion-proof outer casing.

Technical Parameters:

Model	BMD-10H	BMD-12H	BMD-Z40
Chamber	58L, SS316	58L, SS316	72L, SS316
Microwave Source	Professional microwave source, industrial microwave power supply
Microwave Frequency	2450MHz
Microwave Output Power	1400~2800W
Display	8"TFT-LED touch screen
Max. Temp.	300℃
Temp. Accuracy	±0.5℃
Max. Pressure	10MPa		15MPa
Pressure Accuracy	±0.01Mpa
Temperature Sensor	Non-contact infrared temperature sensor
Vessel Quantity Capacity	10 vessels	12 vessels	40 vessels
Vessel Volume	70ml(Standard), 100ml(Optional)
Vessel Material	Vessel made of TFM, explosion-proof outer vessel made of PEEK aerospace composite material
Cooling Method	Forced air cooling
Standard	Turntable bracket, PEEK explosion-proof outer*10, TFM inner vessel*10, infrared temperature sensor, graphite acid evaporator	Turntable bracket, PEEK explosion-proof outer*12, TFM inner vessel*12, infrared temperature sensor, graphite acid evaporator	Turntable bracket, PEEK explosion-proof outer*40, TFM inner vessel*40, infrared temperature sensor*2, graphite acid evaporator*2, transfer inner vessel bracket*2, spanner
Consumption	2600W		2800W
Power Supply	AC220±10%, 50/60Hz(Standard); AC110V, 60Hz(Optional)
External Size(W*D*H)	590*620*830mm		720*720*800mm
Package Size(W*D*H)	Main Body: 590*620*830mm  Accessory: 820*300*130mm		Main Body: 800*800*950mm Accessory: 200*250*250mm; 200*250*250mm
Gross Weight	Main Body: 75kg Accessory: 25kg	Main Body: 75kg Accessory: 27kg	Main Body: 100kg Accessory: 20kg; 20kg

Microwave Digester BMD-10H BMD-12H BMD-Z40 — professional solution in the Microwave Digester category

Microwave Digester BMD-10H BMD-12H BMD-Z40 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Microwave Digester BMD-10H BMD-12H BMD-Z40

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Microwave Digester BMD-10H BMD-12H BMD-Z40 fits easily into existing process lines and IT infrastructure.

Areas of application Microwave Digester

Microwave Digester solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Microwave Digester BMD-10H BMD-12H BMD-Z40 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Microwave Digester BMD-10H BMD-12H BMD-Z40 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
