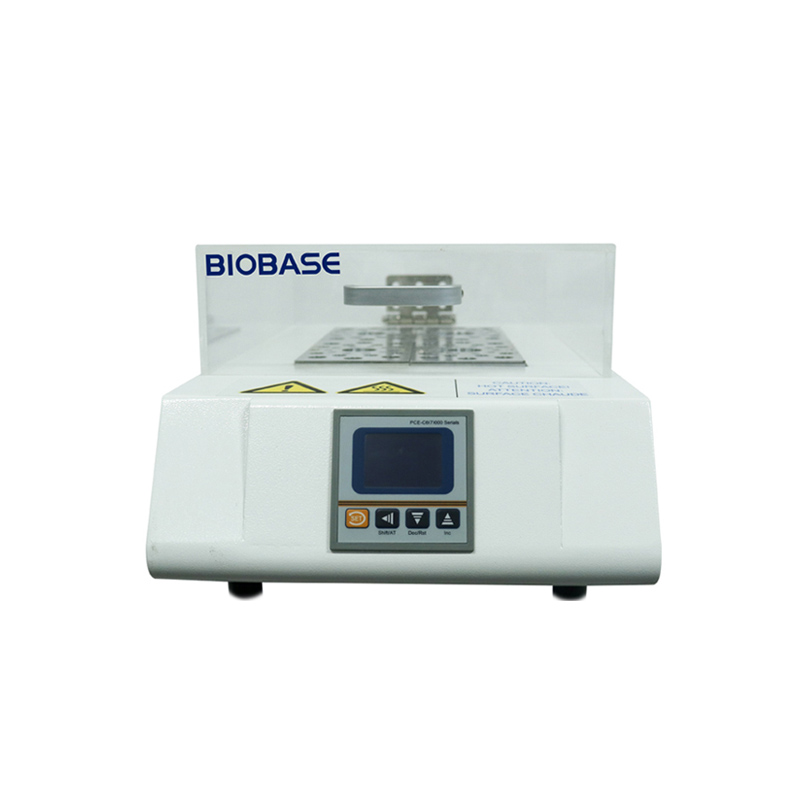

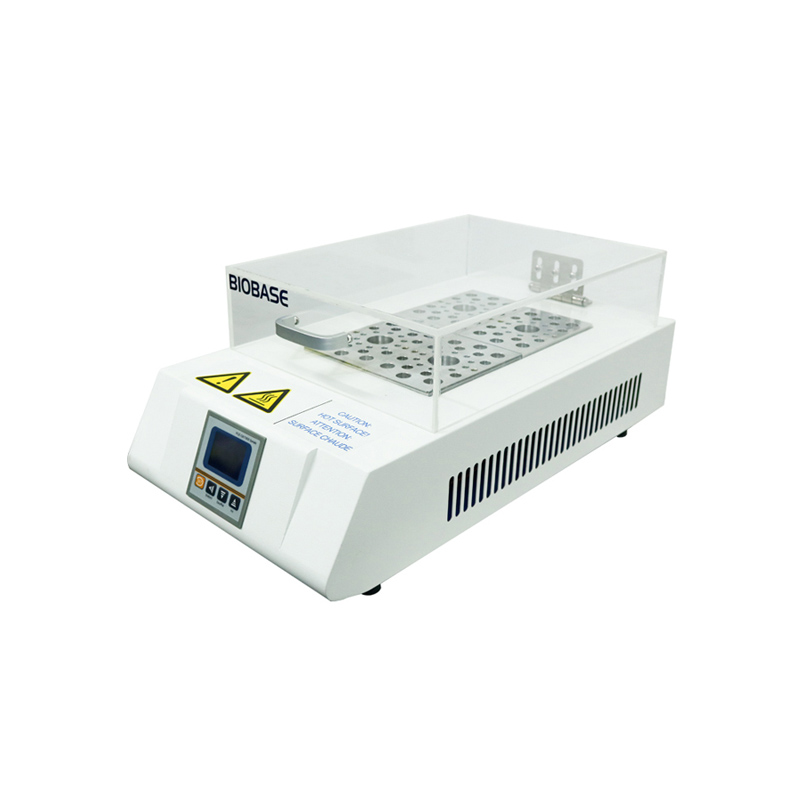

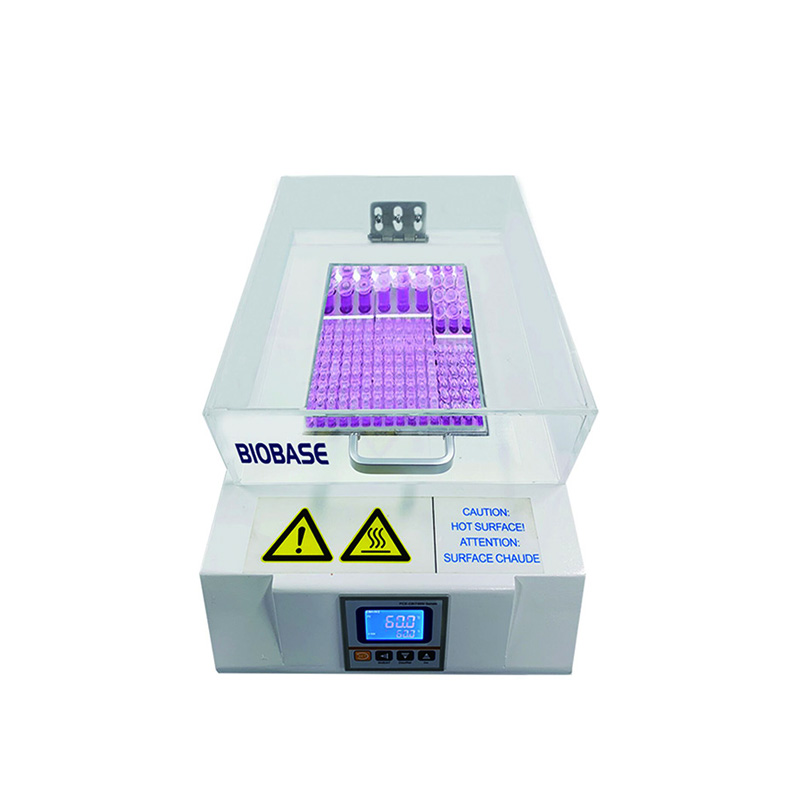

Dry Bath Incubator BJPX-DB Series

Features:

1. LCD display, real-time temperature display and countdown display.

2. A variety of heating aluminum blocks can be flexibly replaced, making it more widely used and easy to clean and disinfect.

3. Automatic fault detection and alarm function.

4. Temperature deviation calibration function.

Technical Parameters:

Model	BJPX-DB1	BJPX-DB2	BJPX-DB4
Block Quantity	1	2	4
Temp. Control	PID microprocessor controller
Temp. Range	RT+5°C~160°C
Temp. Accuracy	±0.5°C (at 40°C)
Temp. Uniformity	±1.0°C(at 40°C)
Display Accuracy	0.1°C
Timing Range	1~9999 mins or continuous operation.
Heating Time	≤20mins(30°C to 130°C); ≤30mins(30°C to 160°C)
Material	The Cover: Acrylic External: Cold-rolled steel with anti-bacteria powder coating
Standard Block	DB005*1pc	DB005*2pcs	DB005*4pcs
Power Supply	220VAC±10% or 110VAC±10%; 50/60Hz
External Size(W*D*H)	310*220*190mm	380*260*200mm	502*260*200mm
Package Size(W*D*H)	360*280*240mm	555*320*250mm
Net/Gross Weight	3.5/5kg	8/10kg	10/12kg

Optional Blocks:

No.	Tube Diameter	Max Number of Tubes	No.	Tube Diameter	Max Number of Tubes
DB001	0.2ml centrifugal tube	96	DB008	φ16mm	15
DB002	φ6mm	50	DB009	φ18mm	12
DB003	0.5ml centrifugal tube	40	DB010	φ20mm	8
DB004	φ10mm	28	DB011	φ26mm	6
DB005	1.5ml centrifugal tube	28	DB012	Mixed sizes 1	6*φ13mm+8*φ10mm; 10*φ6mm+1*φ25mm
DB006	2.0ml centrifugal tube	28	DB013	Mixed sizes 2	14*φ11mm; 14*φ12mm
DB007	φ13mm	24	DB014	Mixed sizes 3	Customized





Dry Bath Incubator BJPX-DB Series — professional solution in the Dry Bath category

Dry Bath Incubator BJPX-DB Series is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Dry Bath Incubator BJPX-DB Series

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Dry Bath Incubator BJPX-DB Series fits easily into existing process lines and IT infrastructure.

Areas of application Dry Bath

Dry Bath solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Dry Bath Incubator BJPX-DB Series allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Dry Bath Incubator BJPX-DB Series you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
