Features:
1. The system offers a comprehensive and flexible isocratic mode, and also provides binary gradient and quaternary gradient systems. Detection capabilities include PDA, UV/VIS, FL, RI and ELS.
2. The new optional, solvent manager units can easily switch 4 to 8 kinds of solvent base on binary gradient system. There are several configurations available for user selection.
3. The real-time solvent pressure compensation control enhances detection precision. The integrated check valve ensures stable fluid delivery and simplifies maintenance.
EX1800 HPC High-Pressure Constant Flow Pump:
Liquid Infusion System | Type I reciprocating infusion pumps |
Flow Rate Range | 62MPa 0.001~10ml/min, n0.001ml/min increments |
Max Output Pressure | 62MPa(corresponding 9000psi), 90MPa(corresponding 13000psi) |
Flow Accuracy | ≤0.06%RSD |
Flow Precision | ≤±0.3% |
Compression Compensation | Automatic, continuous, selectable solvent type |
Post-column Cleaning | Automatic post-column cleaning function, which can control the cleaning flow rate |
Extended Application | Record the number of times the plunger rod seal is used |

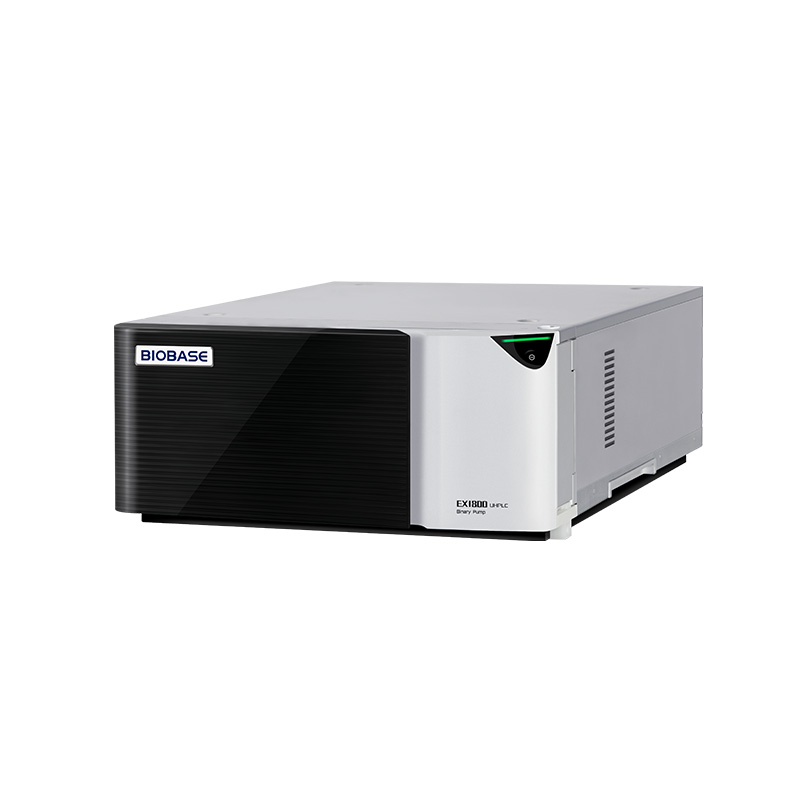

EX1800 BPC Binary High-Pressure Liquid Delivery Unit:
Liquid Infusion System | Type I reciprocating infusion pumps |
Flow Rate Range | 62MPa 0.001~10ml/min, n0.001ml/min increments |
Max Output Pressure | 62MPa(corresponding 9000psi), 90MPa(corresponding 13000psi) |
Flow Accuracy | ≤0.06%RSD |
Flow Precision | ≤±0.3% |
Compression Compensation | Automatic, continuous, selectable solvent type |
Post-column Cleaning | Automatic post-column cleaning function, which can control the cleaning flow rate |
Gradient Setting Range | 0~100% |
Extended Application | Record the number of times the plunger rod seal is used |
EX1800 QLPC Quaternary High-Pressure Liquid Delivery Unit:
Liquid Infusion System | Linear motor digital-driven pump |
Flow Rate Range | Type I: 0.001~5.0ml/min in steps of 0.001
Type II: 0.001~10.0ml/min in steps of 0.001 |
Max Output Pressure | 70MPa(corresponding 10150psi) |
Flow Accuracy | ≤0.06%RSD |
Flow Precision | ≤±0.3% |
Compression Compensation | Automatic, continuous, selectable solvent type |
Post-column Cleaning | Automatic post-column cleaning function, which can control the cleaning flow rate |
Gradient Setting Range | 0~100% |
Online Degassing | Degassing channel systec AF |
Degassing Chamber | 480μl |
Extended Application | Record the number of times the plunger rod seal is used |
EX1800 UV Detector:
Flow Cell Volume | Volume 10.0μl; adopts cone structure/With optional temperature control module |
Light Source | Deuterium lamp+tungsten lamp |
Wavelength Range | 190~900nm |
Spectrum Bandwidth | 8nm |
Wavelength Accuracy | ±1nm |
Wavelength Precision | Below 0.1nm |
Noise | ≤0.25*10⁻⁵AU(static)/±1*10⁻⁵AU(dynamic, under specified test conditions) |
Drift | ≤0.4*10^-4AU/h(static)/±2*10^-4AU/h(dynamic, under specified test conditions) |
Sampling Frequency | Up to 100Hz |
EX1800 PDA Detector:
Number of Diode Arrays | 1024 |
Light Source | Deuterium lamp+tungsten lamp |
Wavelength Range | 200~800nm |
Wavelength Precision | ±0.5nm |
Wavelength Accuracy | ±1nm |
Noise | ±5*10^⁻6AU, under specified conditions |
Drift | 1*10^-4AU/h, under specified conditions |
Sampling Frequency | Up to 100Hz |
Spectral Bandwidth | 10nm |
Flow Cell Path Length | 5mm(10mm is optional)
Up to 8 channels of digital signal output |
Technical Parameters:

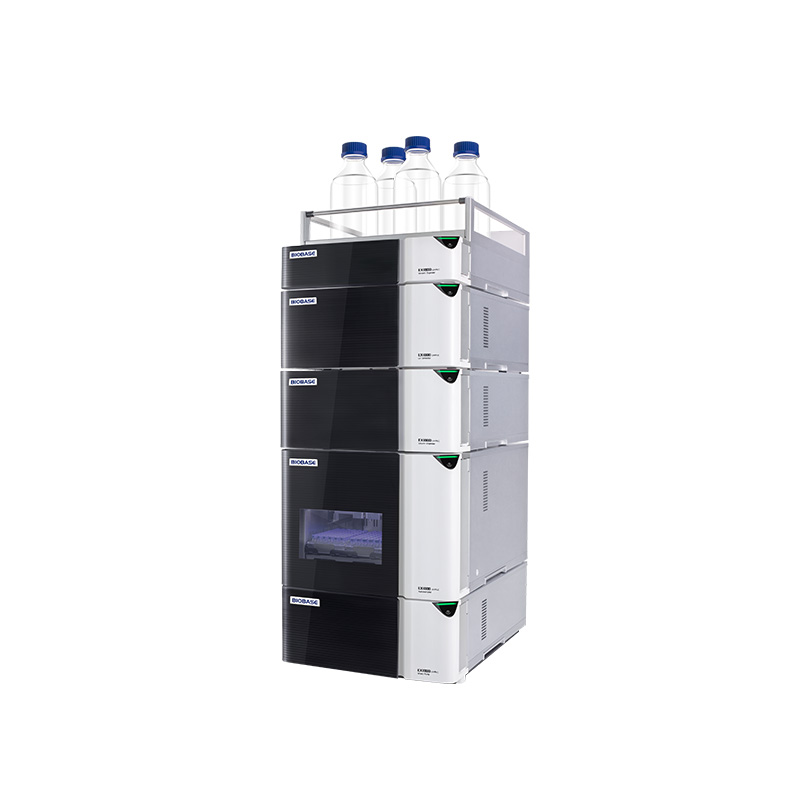

Model | BK-1800HPLC(Type I)
Isocratic Manual System | BK-1800HPLC(Type II)
Binary Gradient Manual System | BK-1800HPLC(Type III)
Binary Gradient Manual System with PDA | BK-1800HPLC(Type IV)
Quaternary Gradient Manual System | BK-1800HPLC(Type V) Quaternary Gradient Manual System with PDA |
Diode Array Detector | / | / | Yes | / | Yes |
High-pressure Constant Flow Pump | EX1800 HPC*1 | / | / | / | / |
Binary High-Pressure Liquid Delivery Unit | / | EX1800 BPC*1 | EX1800 BPC*1 | / | / |
Quaternary High-Pressure Liquid Delivery Unit | / | / | / | EX1800 QLPC*1 | EX1800 QLPC*1 |
Solvent Tray | EX1800 TR*1 | EX1800 TR*1 | EX1800 TR*1 | EX1800 TR*1 | EX1800 TR*1 |
UV Detector | EX1800 UV*1 | EX1800 UV*1 | / | EX1800 UV*1 | / |
Manual Sampler 7725i | Yes | Yes | Yes | Yes | Yes |
C18 5μm ID4.6*250mm | Yes | Yes | Yes | Yes | Yes |
Workstation EX-Clarity C50 | Yes | Yes | / | Yes | / |
Power Supply | AC220/110V, 50/60Hz |
Optional Accessory | UV detector, Rl detector, PDA detector, ELS detector, FL detector, column, column oven, auto-sampler |
Package Size(W*D*H) | 720*580*40
0mm*1
720*580*410mm*2 | 720*580*410mm*3 | 720*580*410mm*3 | 720*580*410mm*3
| 720*580*410mm*3 |
Gross Weight | 61kg | 65kg | 68kg | 57kg | 60kg |
High Performance Liquid Chromatography System BK-1800HPLC — professional solution in the High Performance Liquid Chromatography category
High Performance Liquid Chromatography System BK-1800HPLC is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why High Performance Liquid Chromatography System BK-1800HPLC
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: High Performance Liquid Chromatography System BK-1800HPLC fits easily into existing process lines and IT infrastructure.
Areas of application High Performance Liquid Chromatography
High Performance Liquid Chromatography solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing High Performance Liquid Chromatography System BK-1800HPLC allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with High Performance Liquid Chromatography System BK-1800HPLC you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add High Performance Liquid Chromatography System BK-1800HPLC to the cart or contact our manager. We will help integrate High Performance Liquid Chromatography into existing processes without downtime and unnecessary costs.
