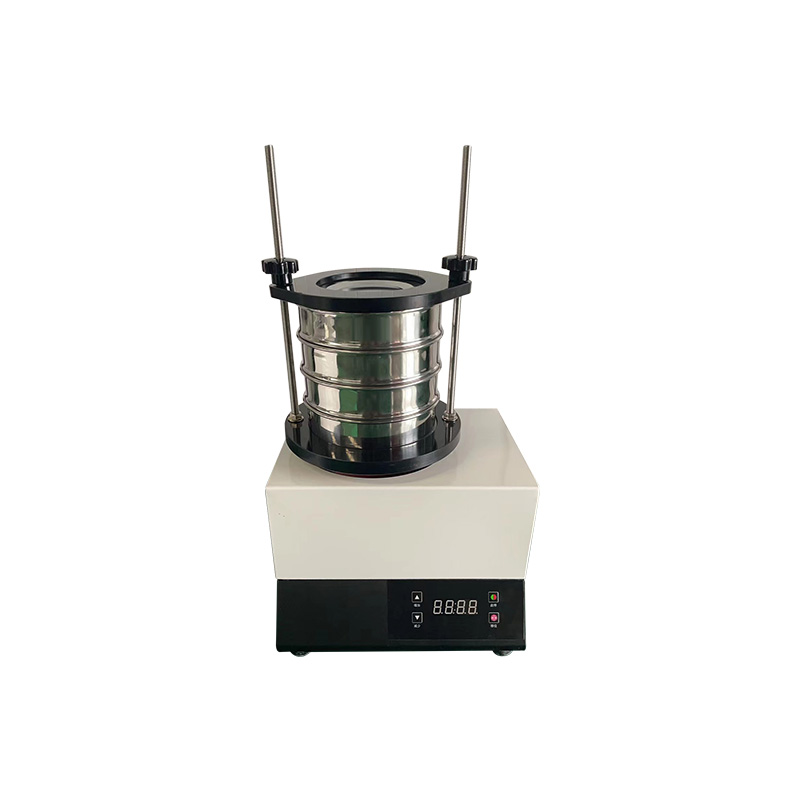

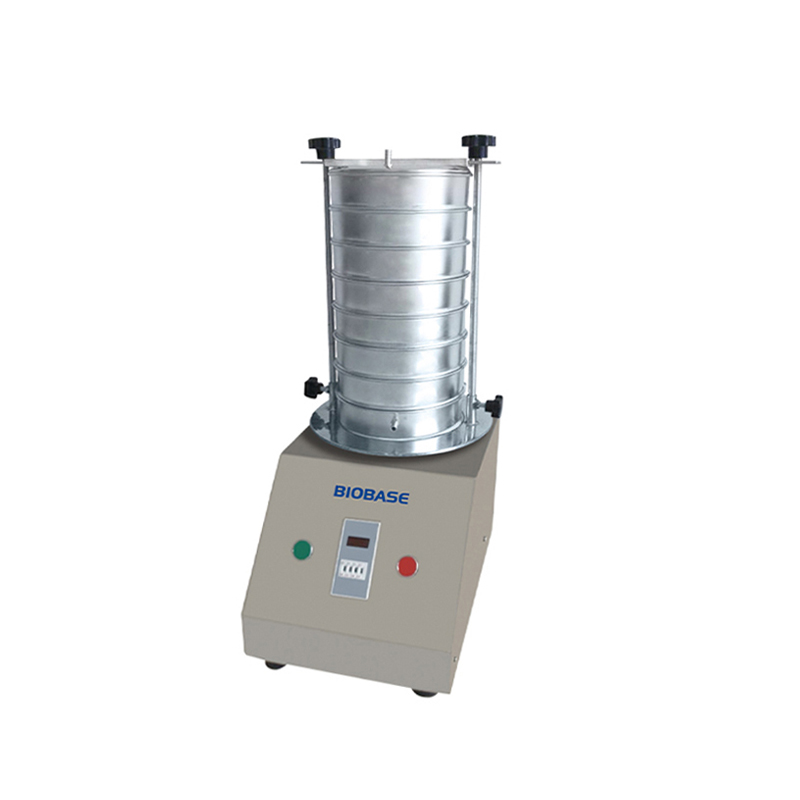

Laboratory Test Sieve BK-TS200X

Features:

1. Screen mesh size range: from 2 mesh to 2800 mesh.

2. Timing range: 0~99min59s, time can be set from seconds to hours freely.

3. Typically requires 50~150g of sample material.

Technical Parameters:

Model	BK-TS200		BK-TS200X		BK-TS300
Working Layer	1~8 layers
Screen Mesh Size	0.003~12.5mm
Diameter	200mm				300mm
Material	Stainless steel 304
Timing Range	0~99min59s
Speed	1440r/min
Power Consumption	125W				180W
Power Supply	AC110/220V±10%, 60/50Hz
Standard Accessory	Lid and base(Except BK-TS300)
External Size(W*D*H)mm	380*330*340	380*330*340		500*400*350
Package Size(W*D*H)mm	460*380*430	470*410*570		530*470*420
Net Weight(kg)	27	27		40
Gross Weight(kg)	35	40		42

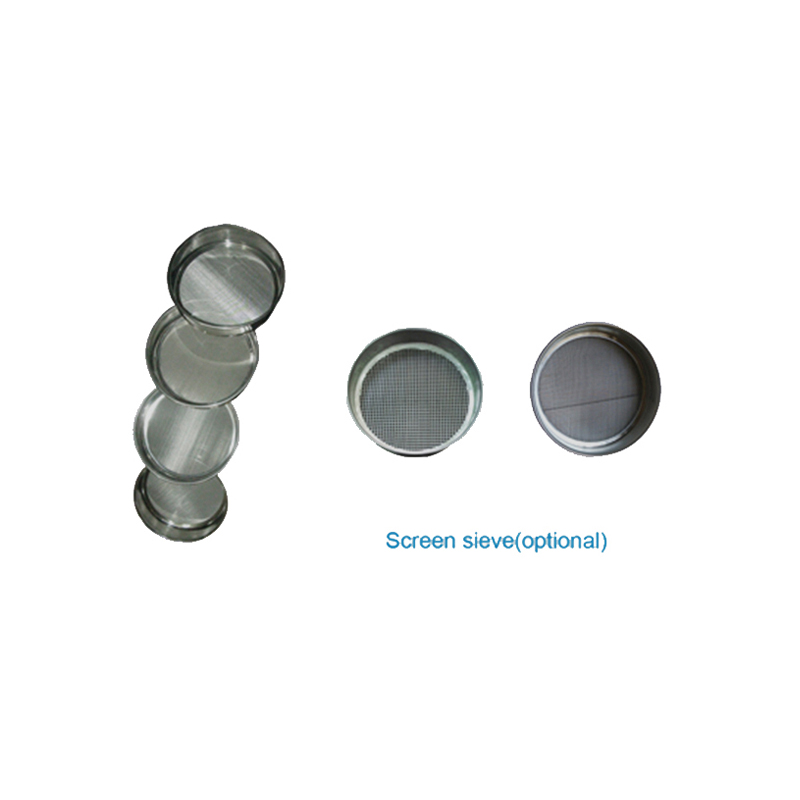

Screen Mesh:

Number of Mesh	Aperture(mm)	Number of Mesh	Aperture(mm)	Number of Mesh	Aperture(mm)
2	12.5	45	0.4	220	0.065
3	8	50	0.355	240	0.063
4	6	55	0.315	250	0.061
5	5	60	0.28	280	0.055
6	4	65	0.25	300	0.050
8	3	70	0.224	320	0.045
10	2	75	0.2	325	0.043
12	1.6	80	0.18	340	0.041
14	1.43	90	0.16	360	0.040
16	1.25	100	0.154	400	0.0385
18	1	110	0.15	500	0.0308
20	0.9	120	0.125	600	0.026
24	0.8	130	0.112	800	0.022
26	0.71	140	0.105	900	0.020
28	0.68	150	0.100	1000	0.015
30	0.6	160	0.096	1800	0.010
32	0.58	180	0.09	2000	0.008
35	0.50	190	0.08	2300	0.005
40	0.45	200	0.074	2800	0.003



Laboratory Test Sieve BK-TS200X — professional solution in the Gelatin Gel Strength Test System category

Laboratory Test Sieve BK-TS200X is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Laboratory Test Sieve BK-TS200X

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Laboratory Test Sieve BK-TS200X fits easily into existing process lines and IT infrastructure.

Areas of application Gelatin Gel Strength Test System

Gelatin Gel Strength Test System solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Laboratory Test Sieve BK-TS200X allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Laboratory Test Sieve BK-TS200X you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
