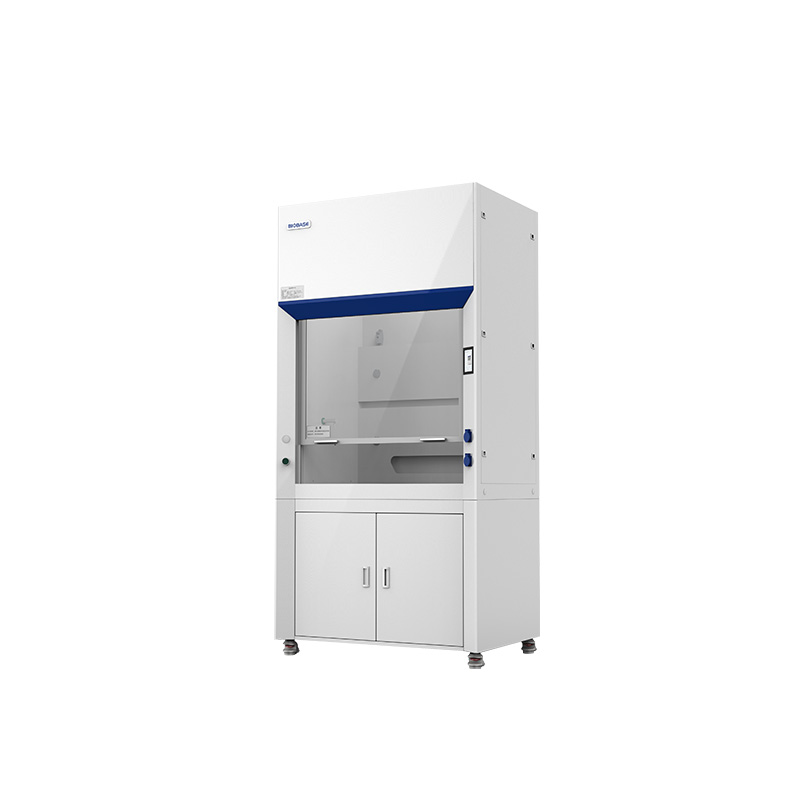

Ducted Fume Hood BK-FH1200E BK-FH1500E

Features:

1. The cabinet is designed with a vertical surface, the operation perspective is wide and more humanized.

2. Made of high quality cold rolled steel plate material, with surface electrostatic spraying and good finish.

3. The platform panel of the operation area of the fume hood is made of solid physical and chemical plate, corrosion resistance, easy disassembled for cleaning(integral type).

4. The front window adopts 5mm thick tempered glass to better protect the safety of personnel and experiments.

5. Counterweight manual front window, height adjustable.

6. Equipped with large capacity bottom cabinet to place laboratory supplies, surface electrostatic spraying, more beautiful and practical.

7. Equipped with wall mounted water supply cock, water supply flow control valve, laboratory sink, convenient experiment.

8. Equipped with PP centrifugal fan, large air volume, low noise, long service life, easy installation.

9. Equipped with a 5-inch LCD touch screen, the running state of the machine is clear.

10. The cabinet is equipped with a lifting handle on the side to facilitate the handling of the fume hood during on-site installation.



Technical Parameters:

Model		BK-FH1200E	BK-FH1500E
Number of Users		1~2
Rated Power		300W	320W
Power Supply		220V±10%, 50Hz(Standard); 110±10%V, 60Hz(Optional)
Exhaust Volume		2300m³/h
Air Velocity		0.3m/s~0.8m/s
Noise		≤65dB(A)
LED Lamp Power		12W
Max Opening		500mm
Tabletop Height		920mm
Standard Accessory		LED lamp*1, water-proof socket*2, temperature and humidity sensor, water supply cock, water supply flow control valve
Optional Accessory		Armrest*2, gas supply cock, gas supply flow control valve
Net Weight		181kg	238kg
External Size(W*D*H)		1200*800*2550mm	1500*800*2550mm
Internal Size(W*D*H)		990*605*900mm	1290*605*900mm
Gross Weight	Cabinet	214kg	276kg
	Base Stand	102kg	122kg
Package Size(W*D*H)	Cabinet	1360*960*1910mm	1658*958*1937mm
	Base Stand	1360*960*1045mm	1658*958*1061mm

Ducted Fume Hood BK-FH1200E BK-FH1500E — professional solution in the Fume Hood category

Ducted Fume Hood BK-FH1200E BK-FH1500E is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Ducted Fume Hood BK-FH1200E BK-FH1500E

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Ducted Fume Hood BK-FH1200E BK-FH1500E fits easily into existing process lines and IT infrastructure.

Areas of application Fume Hood

Fume Hood solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Ducted Fume Hood BK-FH1200E BK-FH1500E allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Ducted Fume Hood BK-FH1200E BK-FH1500E you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
