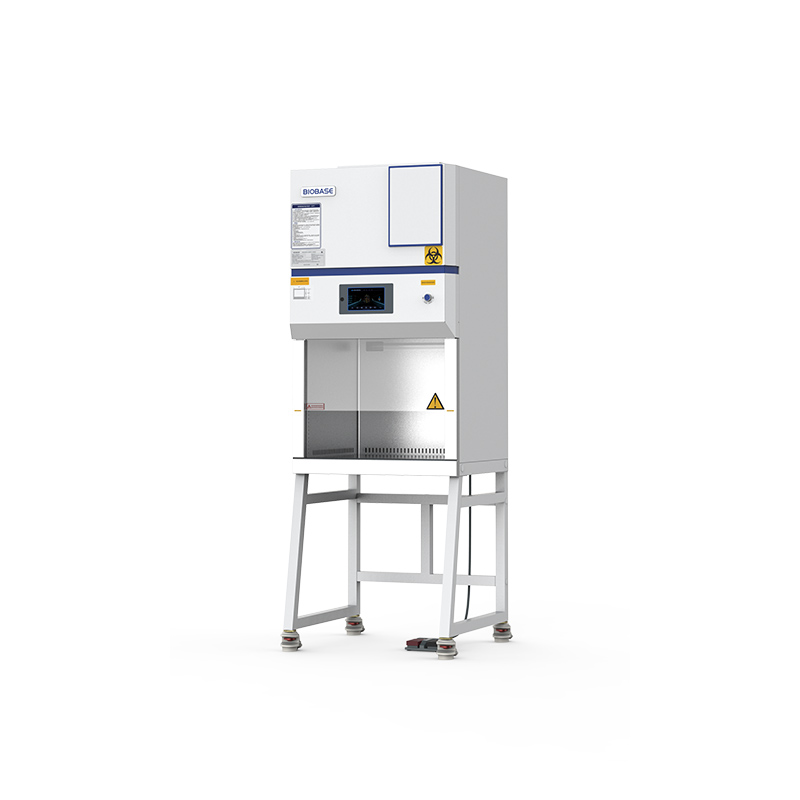

Class II Biological Safety Cabinet 11231 BBC 86-Pro

Features:

1. Small dimension, save space.

2. Centrifugal fan, speed adjustable, HLPA filter.

3. Motorized front window: the front window is motorized for convenient, one-hand operation.

4. Audio and visual alarm: abnormal airflow velocity, filter replacement, front window at unsafe height, high filter pressure alarm.

5. Self-locking button switch to solve the trouble of losing the key.

6. Removable handle design, easy to move.

7. 7 inch large touch screen with Intelligent control system: operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.

8. With memory function in case of power-failure.

9. Interlock function: UV lamp and front window, UV lamp and blower, LED lamp, blower and front window.

Technical Parameters:

Model	11231 BBC 86-Pro
External Size(W*D*H)	700*640*1920mm
Internal Size(W*D*H)	600*500*530mm
Tested Opening	Safety height 200mm(8")
Max Opening	370mm(15")
Inflow Velocity	0.53±0.025m/s
Down Flow Velocity	0.33±0.025m/s
ULPA Filter	Two, 99.9995% efficiency at 0.12μm., filter life indicator
Front Window	Double-sided laminated glass
Noise	≤67dB
UV Lamp	15W*1 UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination
LED Lamp	8W*2
Illumination	≥1000Lux
Consumption	500W
Socket	Two, total load of two sockets: 500W
Display	7 inch large touch screen
Control System	Microprocessor
Airflow System	70% air recirculation, 30% air exhaust
Visual and Audio Alarm	Filter replacement, window over height, abnormal air flow velocity, high filter pressure alarm
Material	Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height	750mm with optional base stand
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory	LED lamp*2, UV lamp*2, remote control, waterproof sockets*2, Base stand, handle*4, Universal caster with brake and leveling feet
Optional Accessory	1. SS Water tap*1, SS Gas tap*1. 2. Wind speed self adjustment function, real-time compensation for wind speed through sensor monitoring. 3. APP networking remote control. 4. 485/232/USB data transfer function, supporting data monitoring and export. 5. LED fluorescent lamp brightness adjustment function. 6. Base bracket with manual or electric height adjustment function. 7. Manual lifting front window function. 8. Manual automatic lifting front window function. 9. EC fan.
Packing Size(Without Base Stand)	Carton: 820*760*1425mm Wood: 850*800*1415mm
Gross Weight(Without Base Stand)	Carton: 120kg Wood: 140kg
Packing Size(With Base Stand)	Carton: 880*817*1420mm Wood: 960*850*1415mm
Gross Weight(With Base Stand)	Carton: 140kg Wood: 160kg

Class II Biological Safety Cabinet 11231 BBC 86-Pro — professional solution in the Biological Safety Cabinet category

Class II Biological Safety Cabinet 11231 BBC 86-Pro is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Class II Biological Safety Cabinet 11231 BBC 86-Pro

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Class II Biological Safety Cabinet 11231 BBC 86-Pro fits easily into existing process lines and IT infrastructure.

Areas of application Biological Safety Cabinet

Biological Safety Cabinet solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Class II Biological Safety Cabinet 11231 BBC 86-Pro allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Class II Biological Safety Cabinet 11231 BBC 86-Pro you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
