Features:

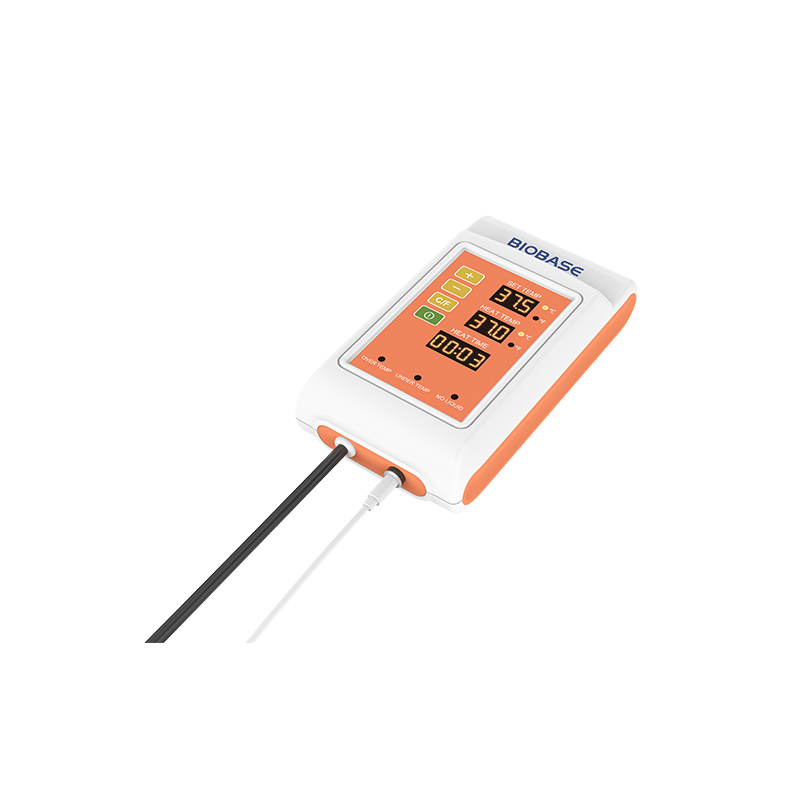

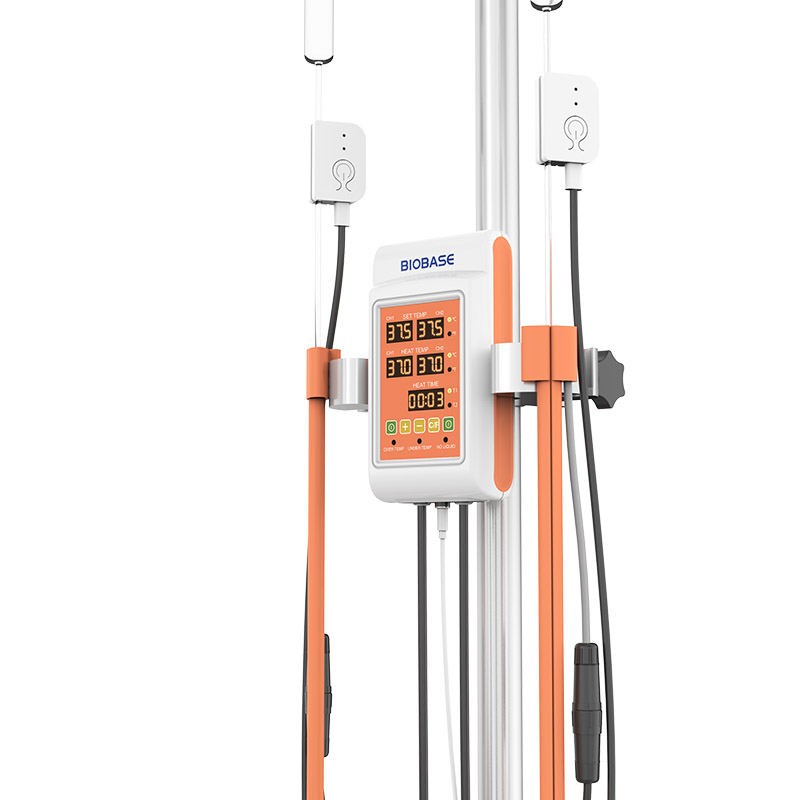

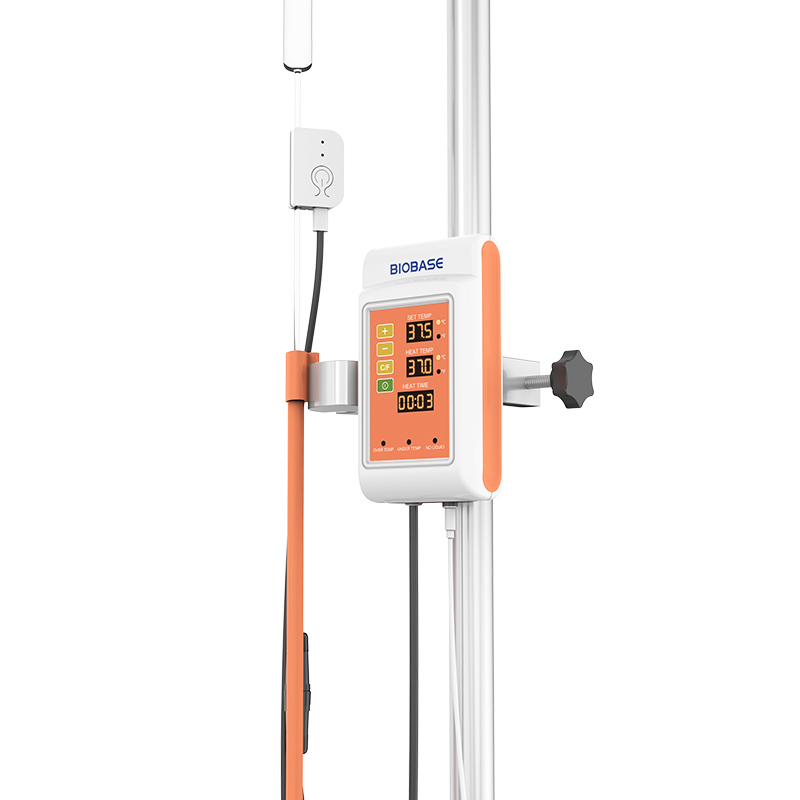

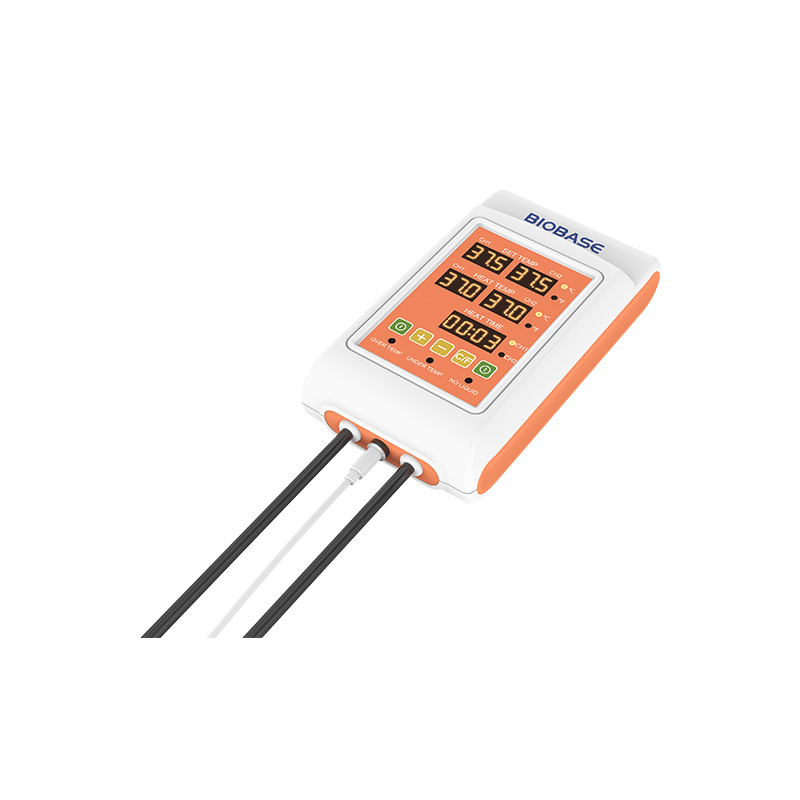

1. BK-TW110 is single-channel blood and fluid warmer, BK-TW210 is dual-channel blood and fluid warmer.
2. Dry heating method, short preheating time, rapid heating.
3. High-quality heating tube assembly, full-wrapped heating, fast heating in cold environment.
4. Heating tube assembly is plug-and-play, convenient and fast.
5. Directly heat conventional blood transfusion and infusion lines, no special consumables required, cost saving.
6. Real-time display of set temperature, real-time temperature, alarm information, working status, etc.
7. With over temperature alarm, under temperature alarm, no liquid alarm function.
Technical Parameters:
Model | BK-TW110 | BK-TW210 |
Channel Count | Single-channel | Dual-channel |
Adjustable Temp. Range | 33.0~41.0℃, continuously adjustable, increase rate 0.1℃ |
Temp. Accuracy | 0.1℃ |
Preheating Time | ≤2min(From 20℃ to 36℃ ) |
Display | LED |
Display Information | Heating time, set temperature, heating temperature, alarm information indication |
Inner Diameter of Heating Tube | Standard: 3.5~5mm Optional: 6~7mm |
Safety Control | The system has built-in alarm test function, and the alarm function can be tested on the panel to see if it is normal |
Power-off Protection | When the temperature exceeds 42℃, the system will automatically stop heating with sound and light alarm |
Under Temperature Alarm | When it is lower than 32℃, the system will give a sound and light alarm to indicate low temperature |
Heating Tube Structure | Three-cavity silicone flexible heating sleeve, integrated with 4 sets of heating wires, two sets of independent temperature sensors |
Power | 60VA | 80VA |
Power Supply | AC100~240V, 50~60Hz |
External Size(W*D*H) | 172*95*175mm | 195*115*175mm |
Packing Size(W*D*H) | 250*220*230mm |
Net Weight | 1.7kg | 2.3kg |
Gross Weight | 2.1kg | 2.7kg |
Blood and Fluid Warmer BK-TW110 BK-TW210 — professional solution in the Blood Bank Instruments category
Blood and Fluid Warmer BK-TW110 BK-TW210 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Blood and Fluid Warmer BK-TW110 BK-TW210
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Blood and Fluid Warmer BK-TW110 BK-TW210 fits easily into existing process lines and IT infrastructure.
Areas of application Blood Bank Instruments
Blood Bank Instruments solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Blood and Fluid Warmer BK-TW110 BK-TW210 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Blood and Fluid Warmer BK-TW110 BK-TW210 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Blood and Fluid Warmer BK-TW110 BK-TW210 to the cart or contact our manager. We will help integrate Blood Bank Instruments into existing processes without downtime and unnecessary costs.
