Features:
1. 400 tests per hour.
2. 90 reagent positions.
3. 120 reaction cuvettes.
4. Built-in sample barcode system optional.
5. 60 sample positions(90 sample positions optional).
6. Probe with anti-collision function, liquid level detection function.
Technical Parameters：
Model | BK-400 |
Overall Performance | Throughput | 400 tests/hour |
Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry |
Certification | CE, FDA, ISO9001, ISO13485 |
Sample&Reagent System | Sample Positions | 60 or 90 sample positions, built-in barcode system available |
Reagent Positions | 90 refrigerated reagent positions |
Sample Volume | 1~70μl |
Reagent Volume | 10~350μl |
Probe | Teflon coating, with anti-collision function, liquid level detection function |
Probe Washing | Automatic washing interior and exterior |
Reagent Cooling | 2~8℃ |
Reaction System | Temperature Control | 37±0.1℃ |
Cuvettes | 120 reusable cuvettes, optical length 6mm |
Mixer Probe | Independent stirring |
Washing | Automatic cuvettes washing |
STAT Function | YES |
Optical System | Light Source | 12V/20W halogen-tungsten lamp |
Spectrophotometry | Post-spectral spectrophotometry |
Wavelength | 340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750, 800nm |
Absorbance | 0~3.5Abs |
Calibration&QC | Calibration | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Logit-4P, Logit-5P |
|
Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot(2D), Daily QC, Monthly QC |
Data Management | Software | Windows 7/8/10, 32 or 64 bit |
LIS System | Bi-direction, support HL7 protocol |
Interface | TCP/IP network interface |
Printer | External optional, multiple reporting mode available |
Working Conditions | Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 500W |
Temperature | 15~30℃ |
Water Consumption | Deionized water: <12L/h |
Humidity | 40%~85% |
Size&Weight | External Size (W*D*H) | 1170*775*1145mm |
Net Weight | 190kg |
Package Size (W*D*H) | 1358*935*1387mm |
Gross Weight | 255kg |

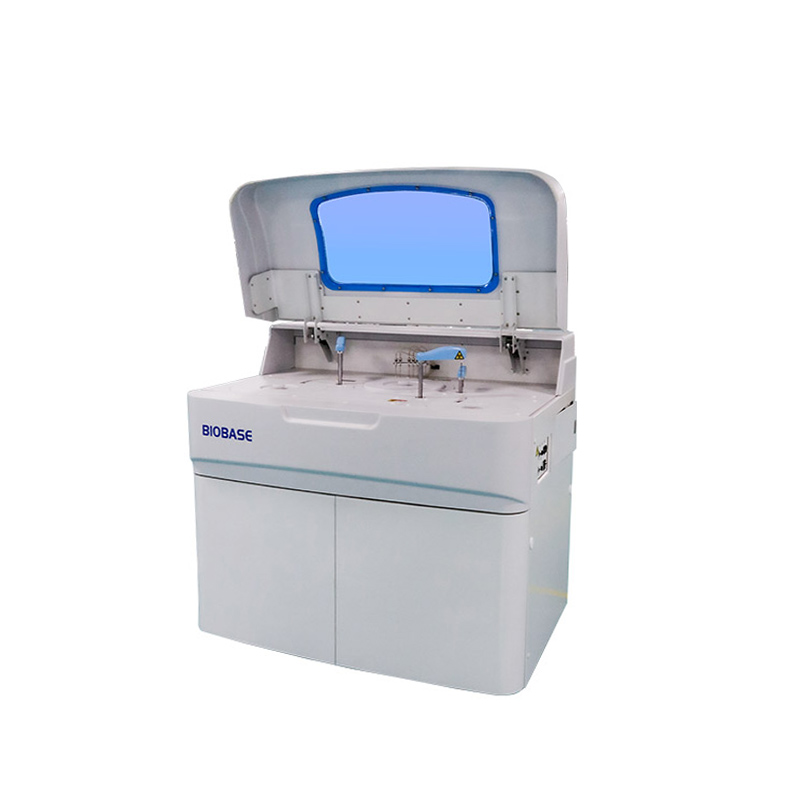

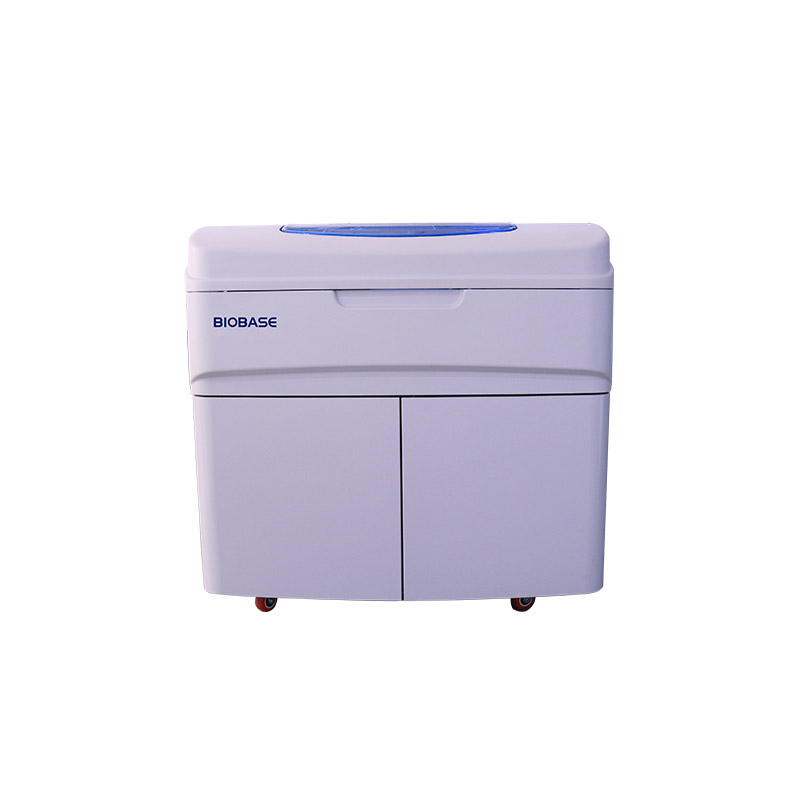

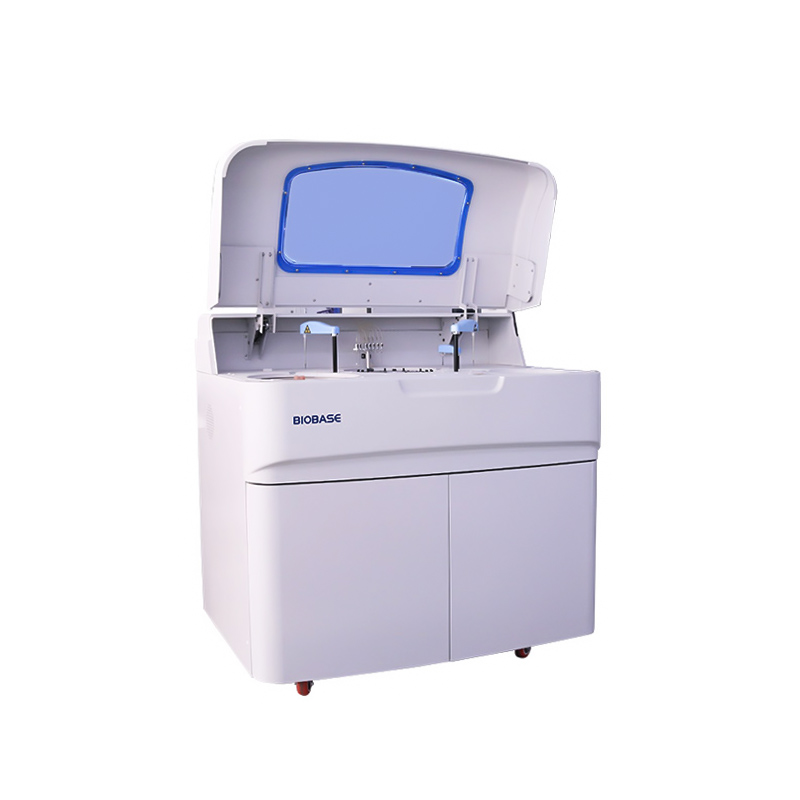

Fully Automatic Blood Biochemistry Chemistry Machine Auto Analyzer Laboratory Biochemistry BK-400 — professional solution in the Biochemistry Analyzer category
Fully Automatic Blood Biochemistry Chemistry Machine Auto Analyzer Laboratory Biochemistry BK-400 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Fully Automatic Blood Biochemistry Chemistry Machine Auto Analyzer Laboratory Biochemistry BK-400
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Fully Automatic Blood Biochemistry Chemistry Machine Auto Analyzer Laboratory Biochemistry BK-400 fits easily into existing process lines and IT infrastructure.
Areas of application Biochemistry Analyzer
Biochemistry Analyzer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Fully Automatic Blood Biochemistry Chemistry Machine Auto Analyzer Laboratory Biochemistry BK-400 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Fully Automatic Blood Biochemistry Chemistry Machine Auto Analyzer Laboratory Biochemistry BK-400 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Fully Automatic Blood Biochemistry Chemistry Machine Auto Analyzer Laboratory Biochemistry BK-400 to the cart or contact our manager. We will help integrate Biochemistry Analyzer into existing processes without downtime and unnecessary costs.
