C-MAG MS 10

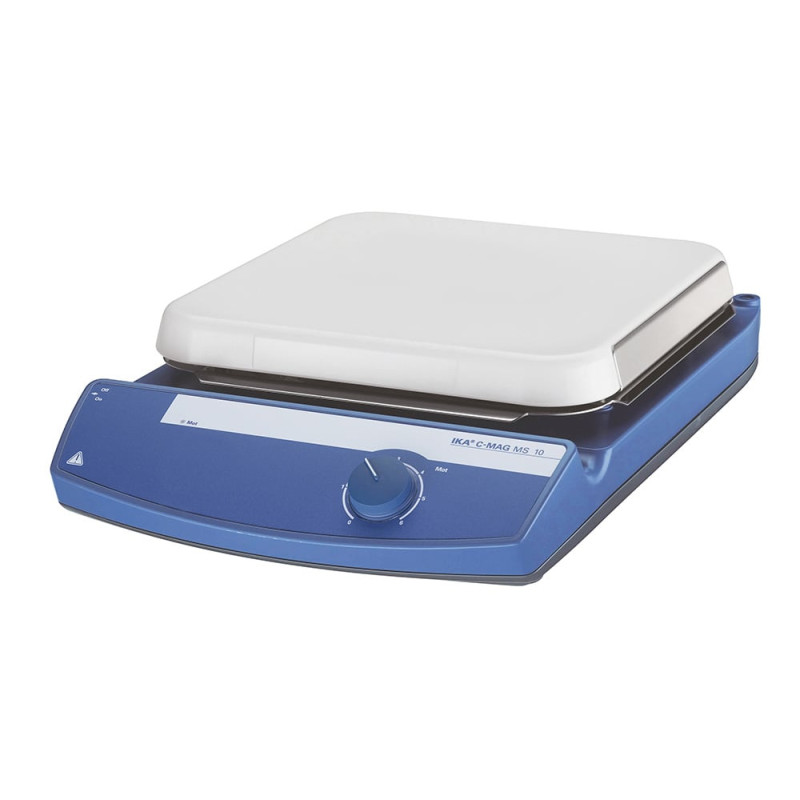

Magnetic stirrer C-MAG MS 10

Magnetic stirrer without heating. With a ceramic nozzle that provides excellent chemical resistance.

- Powerful motor for mixing volumes up to 15 liters (H2O)

- Raised control panel to protect against liquid leakage

- Speed range: 100 - 1500 rpm

Delivery set:

• C-MAG MS 10
• IKAFLON® 20*
• IKAFLON® 30*
• IKAFLON® 40*
•


Technical specifications:

Number of positions for mixing: 1

Maximum mixing quantity per mixing position (H2O) [l]: 15

Maximum load [kg]: 20

Motor power [W]: 1.5

Direction of rotation: left

Speed adjustment: scale 0 - 6

Speed range [rpm]: 100 - 1500

Maximum mixer length [mm]: 80

Self-heating of the nozzle max. mixing (room temperature: 22°C/duration: 1 h) [K]: +2

Mounting plate material: ceramic

Mounting plate dimensions [mm]: 260 x 260

Dimensions (W x H x D) [mm]: 300 x 105 x 415

Weight [kg]: 6,665

Permissible ambient temperature [°C]: 5 - 40

Permissible relative humidity [%]: 80

Protection class according to DIN EN 60529: IP 21

Voltage [V]: 230 Frequency [Hz]: 50/60

Input power [W]: 30

C-MAG MS 10 — professional solution in the Magnetic stirrers category

C-MAG MS 10 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why C-MAG MS 10

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: C-MAG MS 10 fits easily into existing process lines and IT infrastructure.

Areas of application Magnetic stirrers

Magnetic stirrers solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing C-MAG MS 10 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with C-MAG MS 10 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
