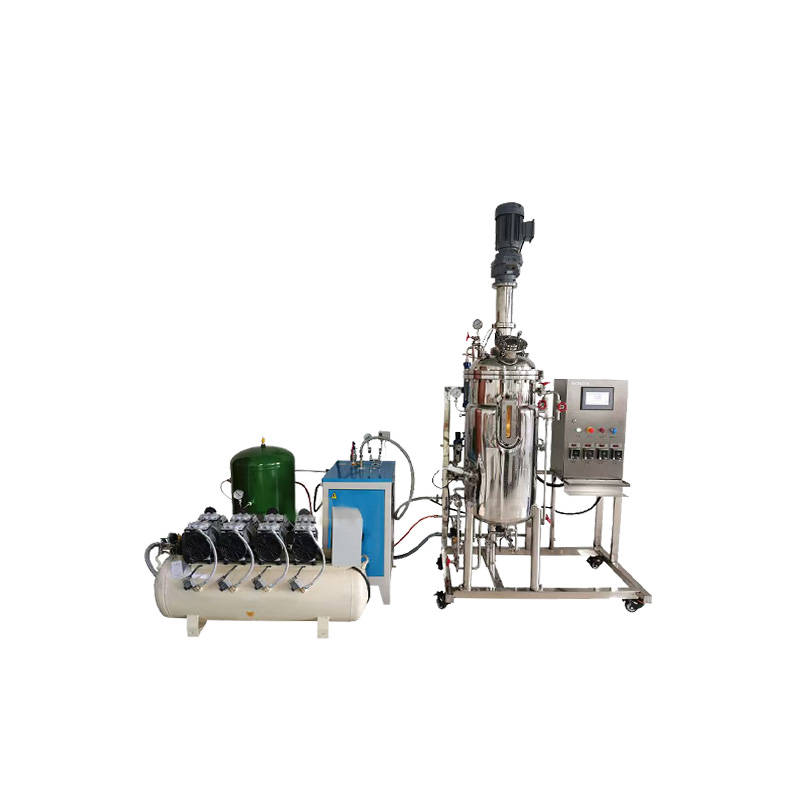

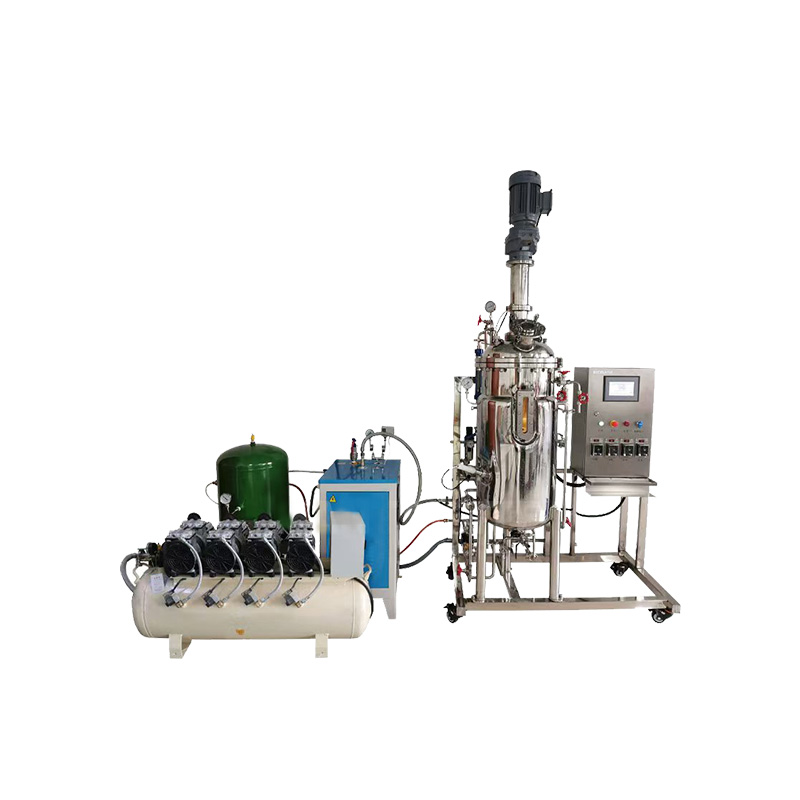

Biological Fermentation System

Features:

1. Large color touch screen, simple interface and operation.

2. The peristaltic pump is easy to load, and the 4 fixed-speed peristaltic pumps can be directly used for the control of acid supplementation or alkali supplementation or feeding or defoaming.

3. The entire system is simple to configure, and can quickly enter into fermentation operations or new project research and development, shortening process optimization time.



Technical Parameters:

Model		BK-BR50	BK-BR100
Tank Structure	Capacity	50L	100L
	Sterilization Method	In-place sterilization
	Design Pressure	0.3Mpa
	Working Pressure	≤0.15Mpa
	Inner Material	316 stainless steel
	Interface	Air inlet, exhaust port, temperature probe port, PH probe port, DO interface, defoaming interface, flame protection inoculation port, feeding port, discharge port, jacket upper and lower port, etc
	Polishing	Internal Polishing Accuracy: RA0.4 External Polishing Accuracy: RA0.6
Coefficient of Charge		60%~80%
Aspect Ratio		1:2~2.5
Jacket		Design Pressure: 0.3Mpa Material: 304 stainless steel Used for temperature control and auxiliary sterilization.
Intake Filtration		Maximum Ventilation: 1.5VVM, precision 0.01μm sterilization filter
Motor	Power	1500W
	Speed	50~700rpm continuous stable adjustable
	Control Accuracy	±0.5%* Max Speed
	Resolution	1rpm
Stirring System		Top mechanical stirring system, stainless steel with special heat treatment for mixing shaft, adjustable mixing blade is adopted, with six straight blades in 1 gear and inclined blades in 1 gear pressure turbine, the three-stage pressure type efficient defoaming paddle is set up with a baffle plate, and the intake air is set up with a ring distributor, and the gas-liquid two phases are fully mixed to improve the dissolved oxygen
Sterile Air Handling System	Air Pre-filter	Filtration Capacity: 0.1m³/min Accuracy: 0.1μm Membrane Filtration	Filtration Capacity: 0.2m³/min Accuracy: 0.1μm Membrane Filtration
	Air Fine Filter	Filtration Capacity: 0.1m³/min Accuracy: 0.01μm Membrane Filtration	Filtration Capacity: 0.2m³/min Accuracy: 0.01μm Membrane Filtration
	Steam Filtration System	Stainless steel shell, PTFE filter element, membrane filtration, filtration accuracy is 5μm.
	Air Decompression and Oil-water Separator	Reduce the air pressure from the air compressor to 0.2-0.25Mpa, with an oil-water separator to remove oil and water in the air.
Temperature Control System	Measuring Range	0~150℃
	Control Range	Water temperature in tank~65℃
	Control Accuracy	±0.5℃
	Resolution	0.1℃
PH Control System	Control Mode	Automatic
	Display Range	0~14PH
	Control Range	2~12PH
	Resolution	0.01PH
Pressure and Flow Detection Control System		φ60 surface pressure gauge indicates pipe, tank and jacket pressure, manual control tank pressure, measuring range is 0~0.4Mpa;glass rotor flow meter manually control the intake air flow;one-way check valve is added on the pipeline to prevent material back flow from polluting the filter.
DO Control System	Control Mode	Automatic
	Display Range	0~100%, 0~150%
	Accuracy	±0.1%, 1%
	Testing Content	The DO value is detected online
Feeding System		Manual and automatic control, peristaltic pump flow, equipped with replenishing bottle, the program can set the amount of flow per unit time and accumulate online measurement, equipped with 1L flow refill bottle
Defoaming System	Control Accuracy	10~100000Ω
	Control Content	Foam abnormal condition alarm, automatic intermittent processing
Speed Control System		Speed: 50~700rpm±1%, stepless frequency conversion speed regulation
Standard Accessories		Fermentation Tank*1, Air compressor*1, Air tank*1, Steam generator*1
Power Supply		AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional)	AC380V, 50/60Hz
Net Weight	Tank	185kg	362kg
	Air Compressor and Steam Generator	175kg	214kg
Package Size(L*W*H)	Tank	1350*820*1750mm	1520*820*2230mm
	Air Compressor and Steam Generator	1350*1100*1100mm	1370*1170*1130mm
Gross Weight	Tank	210kg	392kg
	Air Compressor and Steam Generator	200kg	244kg
