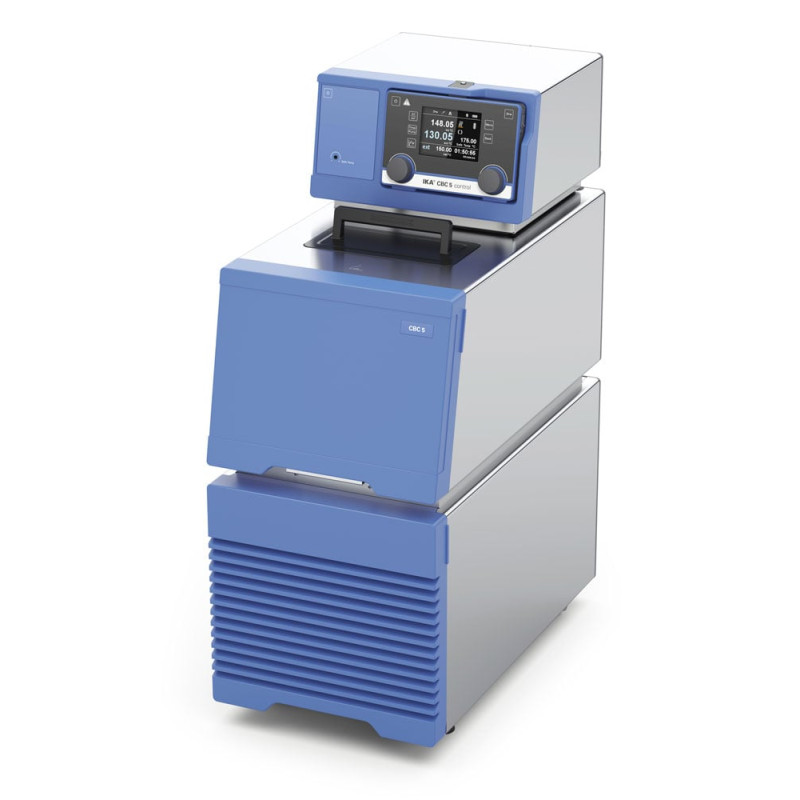

CBC 5 control

The CBC 5 control is a powerful refrigerated and heating circulator with strong heating and cooling power for an operating temperature range of - 25 °C to + 200 °C. It is best suited for external applications thanks to its proven pressure and suction pump. High-quality insulation of the device allows for fast heat-up times and reduces heat input at low temperatures. All parameters are manageable (read out, monitored and completely documented) by software (e. g., labworldsoft(r) or NAMUR commands). - High performance pressure/suction pump (speed-controlled) - Industry standard TFT display for maximum visibility (pump speed, temperature) - Adjustable safety circuit - Visible and audible alarm - Safety drain valve - USB / RS 232 interfaces (labworldsoft(r) and enabling online updates of device software) - Connection for external temperature probe (PT 100) and optional external solenoid valves (multi-IO port) - Safety classification III (FL, DIN 12876) - Removable WiCo (wireless controller) enables safe remote operation, e.g. outside of a closed fume hoodAppliance type: Circulation thermostat Class designation acc. DIN 12876: III Identification according to DIN 12876: FL Cooling agent: R134a Cooling agent quantity [g]: 250 Cooling agent pressure max. [bar]: 20 Heat output [W]: 2500 Cooling capacity (@20°C) [W]: 350 Cooling capacity (@10°C) [W]: 320 Cooling capacity (@0°C) [W]: 270 Cooling capacity (@-10°C) [W]: 190 Cooling capacity (@-20°C) [W]: 80 Cooling capacity (@ -20°C; 3200 rpm) [W]: 130 Cooling capacity (@ 20°C; 3200 rpm) [W]: 400 Working temperature [°C]: -25 - 200 Operating temperature min. [°C]: -25 Temperature display: yes Temperature stability DIN 12876 (@+70°C) [K]: ±0.01 Temperature control: PID Working temperature sensor: PT 100 Safety temperature sensor: PT1000 Working temperature display: TFT Safety temperature display: TFT Connection for ext. temperature sensor: PT 100 Display resolution [K]: 0.01 Display for operation with ext. sensor: yes Warning function optical : yes Warning function acoustic : yes Warning function excess temperature : yes Warning function insufficient temperature : yes Adjustable safety circuit [°C]: 0 - 260 Sub-level protection: yes Filling volume [l]: 5 - 7 Pump type: Pressure- / suction pump Pump capacity adjustable : yes Pump pressure max. (0 liters discharge flow) [bar]: 0.61 Pressure pump (suction side) (0 liter flow) [bar]: 0.45 Flow rate max. (0 bar back pressure) [l/min]: 31 Pump connection: M16x1 Bath depth min. [mm]: 150 Height including bath [mm]: 172 Width bath opening [mm]: 82 Calibration option: yes Technical data complies with the standard: DIN 12876 Multi-Interface: yes Alarm output (potential-free contact) max. [V AC/DC]: 30 Alarm output (potential-free contact) max. [A]: 1 Solenoid valve output [VDC]: 24 Solenoid valve output max. [A]: 0.8 Standby input [VDC]: 5 Noise level [dB(A)]: 55 Dimensions (W x H x D) [mm]: 275 x 690 x 490 Weight [kg]: 46.5 Permissible ambient temperature [°C]: 5 - 32 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 21 RS 232 interface: yes USB interface: Micro-USB Voltage [V]: 230 Frequency [Hz]: 50/60 Power input [W]: 3000

CBC 5 control — professional solution in the IKA®-Werke GmbH & Co. KG category

CBC 5 control is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why CBC 5 control

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: CBC 5 control fits easily into existing process lines and IT infrastructure.

Areas of application IKA®-Werke GmbH & Co. KG

IKA®-Werke GmbH & Co. KG solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing CBC 5 control allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with CBC 5 control you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
