Homogenizer D-160

Features:

1. Lightweight design, handheld and can be operated with one hand.

2. The application of different dispersing heads is suitable for liquid samples of 0.1~250ml.

3. High-quality 316L stainless steel dispersing head, corrosion-resistant, high-temperature sterilization.

4. The dispersing head is easy to disassemble and clean; high-speed and high-efficiency motor.

5. The speed is adjustable in 10 gears, and the speed range: 8000~32000rpm.

Optional Accessories:

Cat. No.	Combination Stator+Rotor	Model	Working Volume(ml)	Diameter of Stator	Diameter of Rotor	Min./Max. Immersion Depth	Application

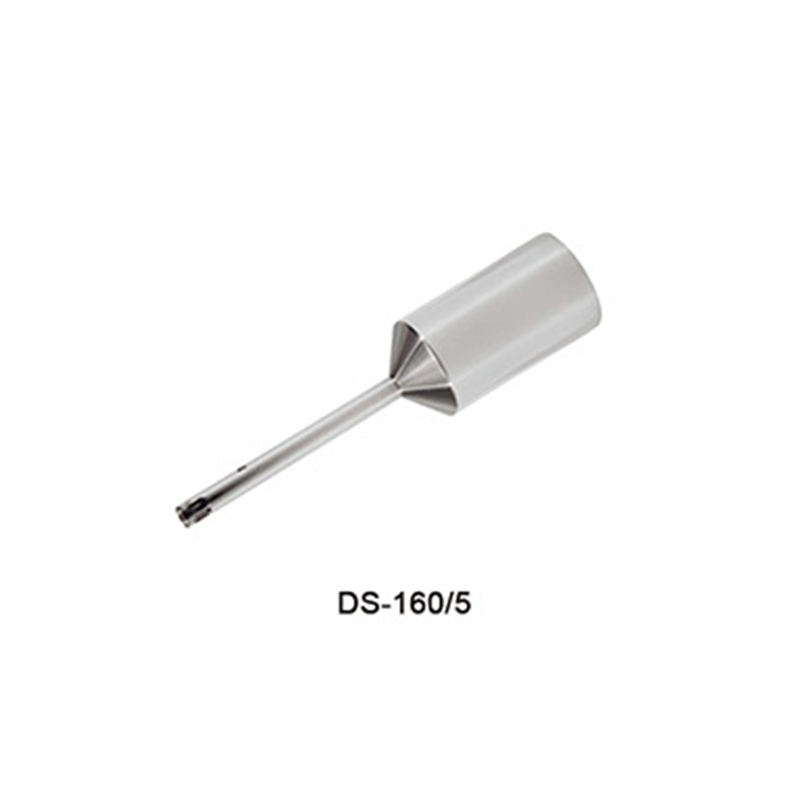

18900113	DS-160/5	D-160 /5	0.1~50	5mm	3mm	7/50mm	Small amounts of solid-liquid mixtures

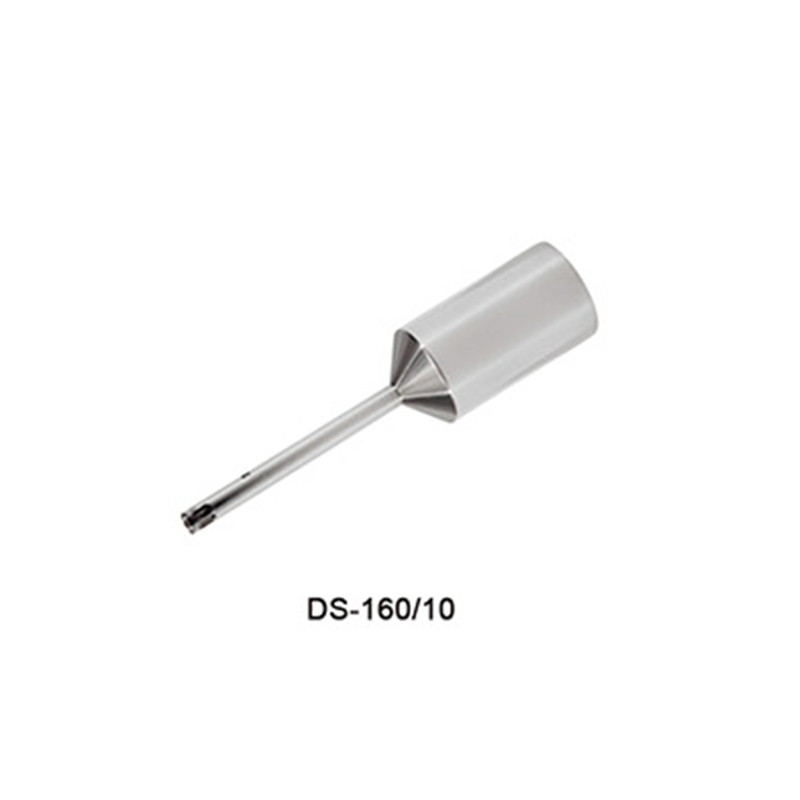

18900114	DS-160/10	D-160 /10	1~250	10mm	6mm	10/120mm



Technical Parameters:

Model	D-160/5	D-160/10
Item No.	8014111000

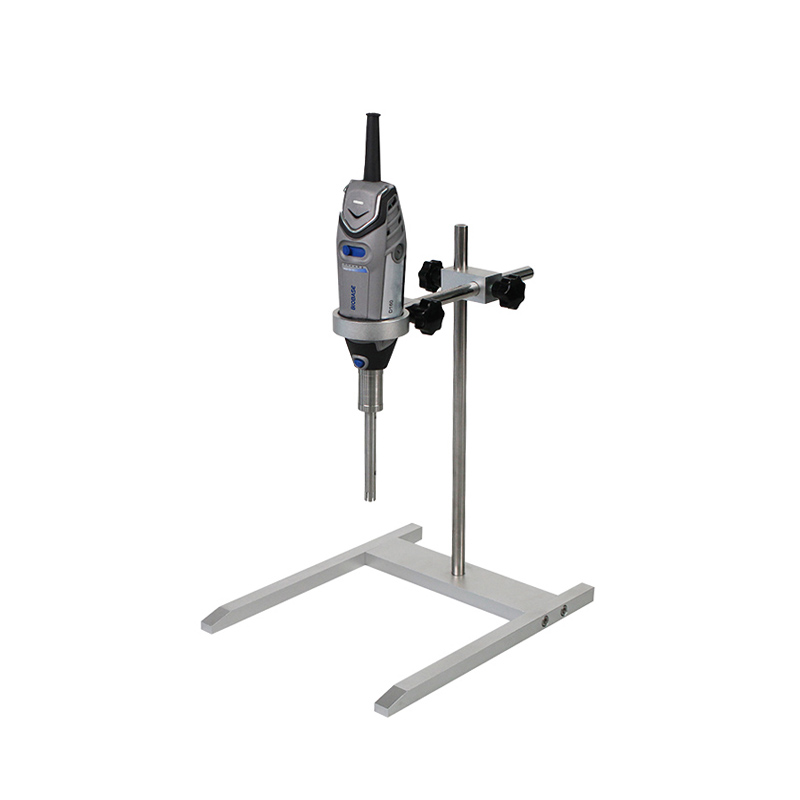

Recommended Configuration	D160 drive, H370 Stand, DS-160/5 shaft, volumes from 0.1~50ml	D160 drive, H370 Stand, DS-160/10 shaft, volumes from 1~250ml
Speed Range	8000~32000rpm
Max. Circum. Speed	6.3~14m/s
Speed Control	10 stage
Working Volume(H2O)	0.1~50ml(Dispersing shaft DS-160/5)		1~250ml(Dispersing shaft DS-160/10)
Max. Viscosity	5000mPa·s

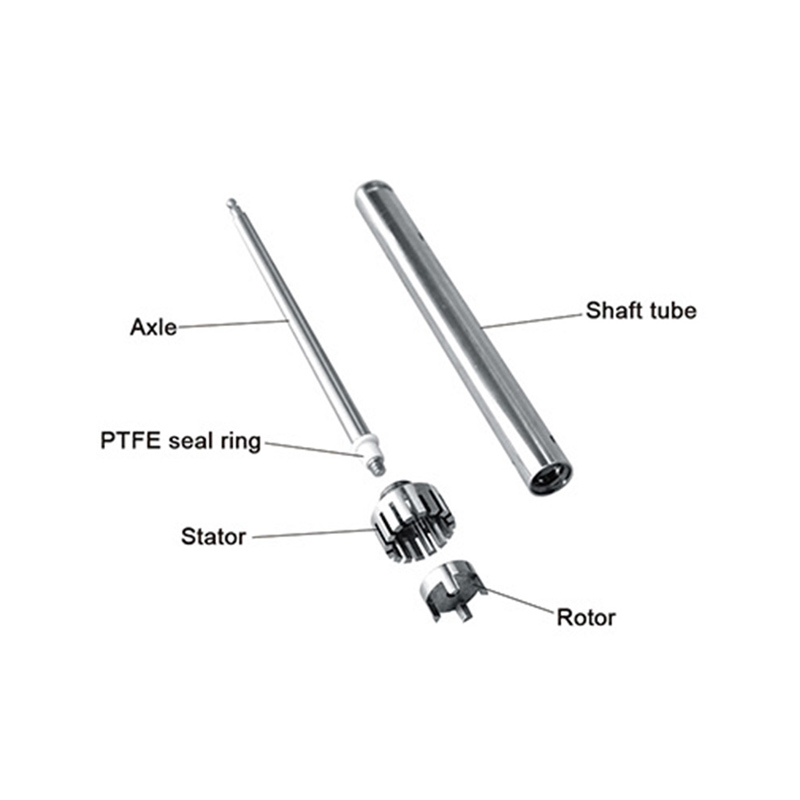

Material of Dispersing Shaft	SS316&PTFE seal ring
Noise	≤72dB
Ambient Temp.	0~40°C
Relative Humidity	85%RH
Protection Type	IP20
Consumption	160W
Motor Type	AC carbon brush motor
Power Supply	AC110/220V±10%, 50/60Hz(Customizable)
Standard Accessory	Base stand+DS-160/5 dispersing shaft		Base stand+DS-160/10 dispersing shaft
External Size(W*D*H)	45*55*190mm
Package Size(W*D*H)	470*240*250mm
Gross Weight	4kg

Homogenizer D-160 — professional solution in the Homogenizer category

Homogenizer D-160 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Homogenizer D-160

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Homogenizer D-160 fits easily into existing process lines and IT infrastructure.

Areas of application Homogenizer

Homogenizer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Homogenizer D-160 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Homogenizer D-160 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
