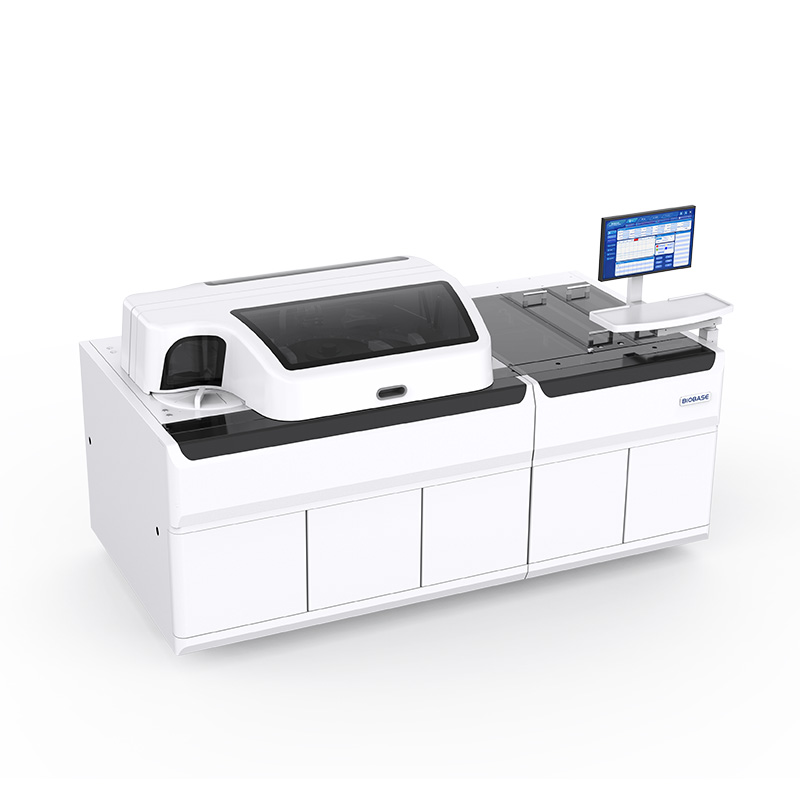

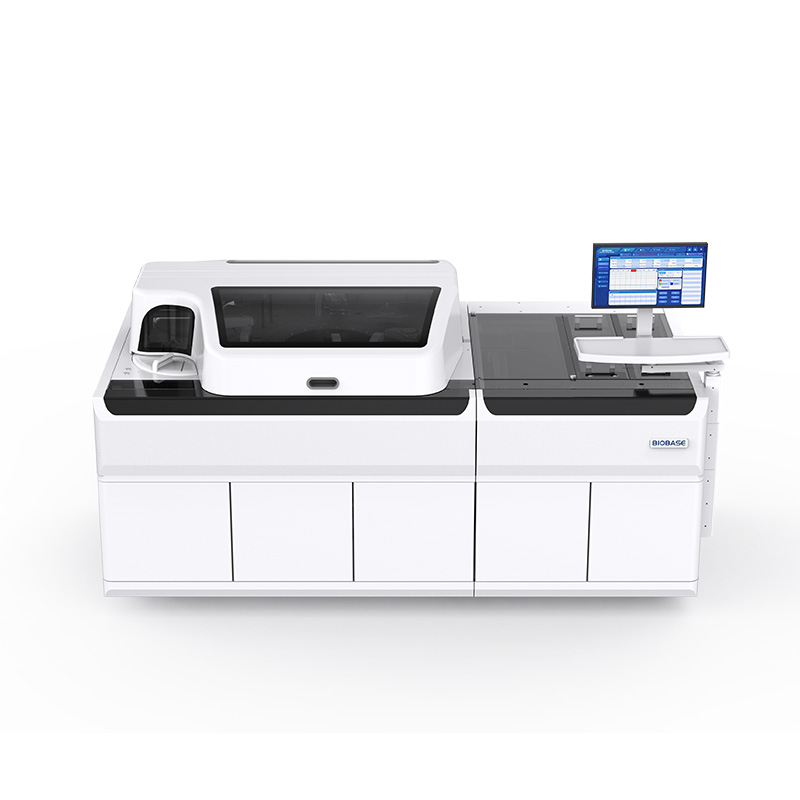

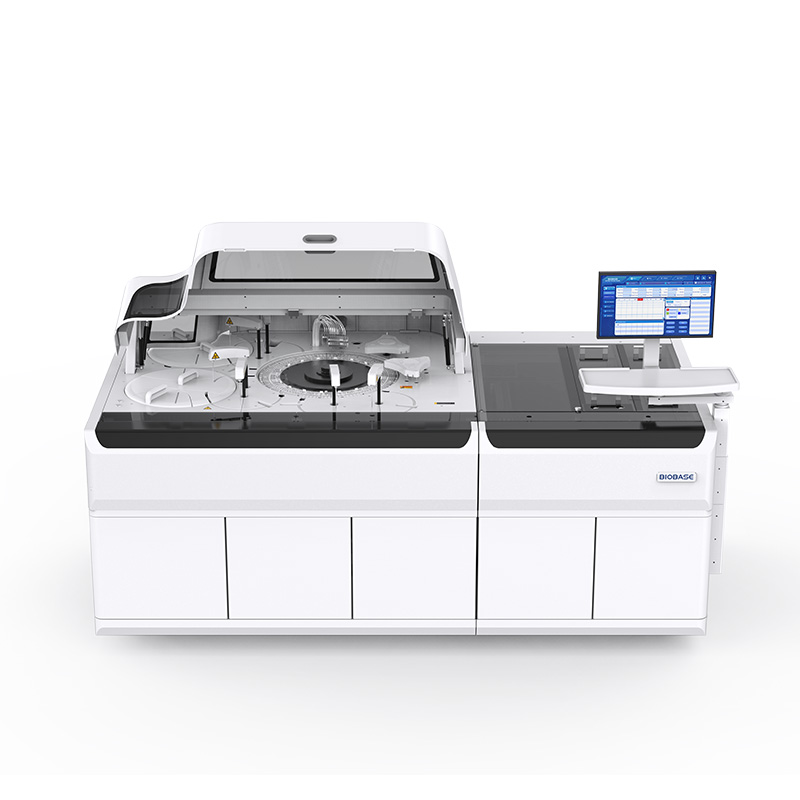

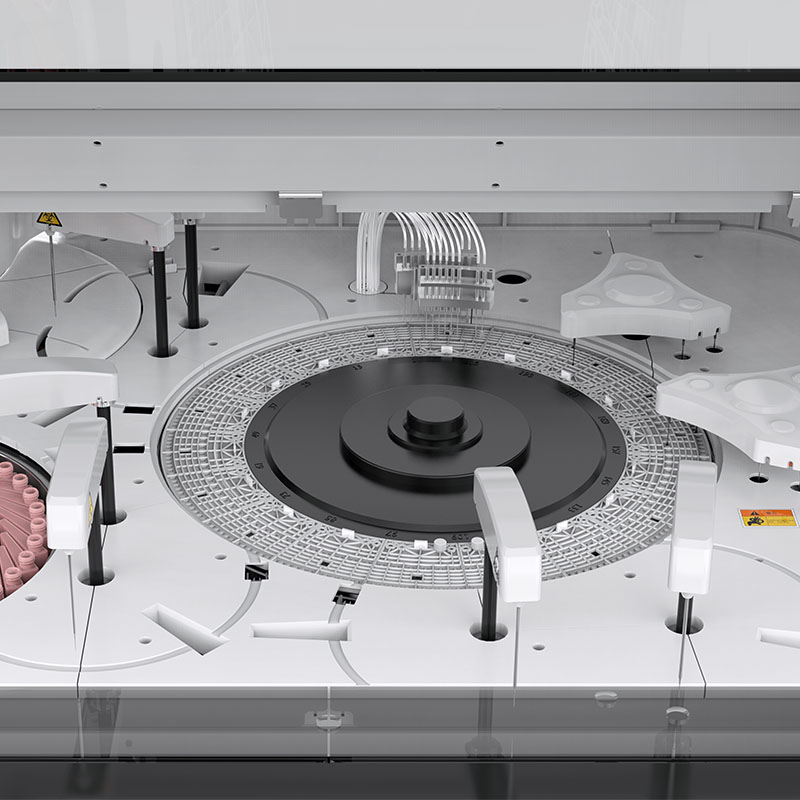

Automatic Chemistry Analyzer BK-2000

Features:

1. 300 sample positions.

2. 432 reaction cuvettes.

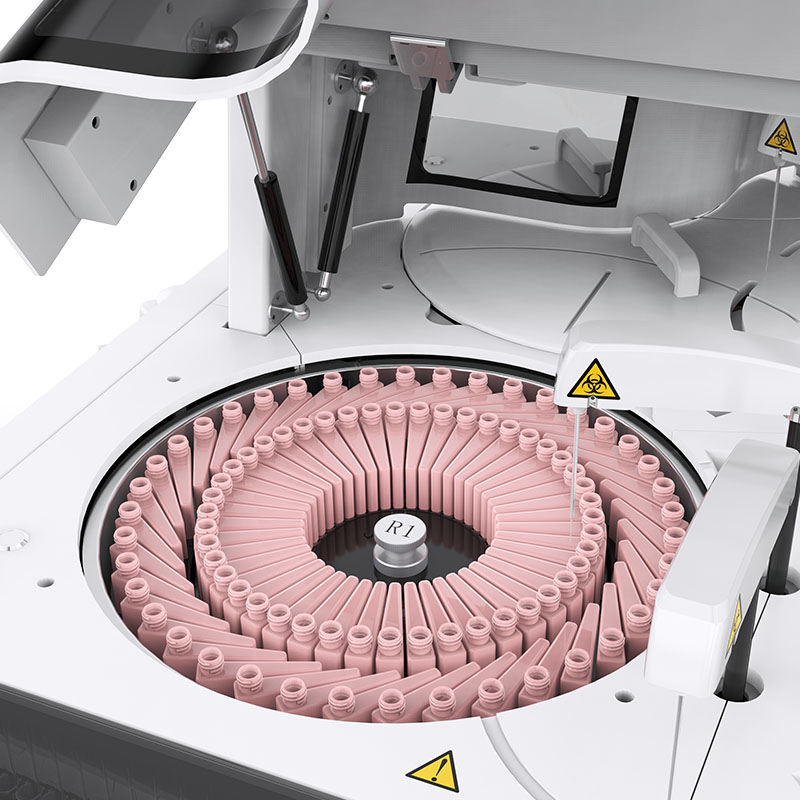

3. 250 refrigerated reagent positions.

4. Double focus, double aperture, holographic concave grating.

5. 2000 tests per hour, ISE is optional.

6. Built-in sample barcode system.

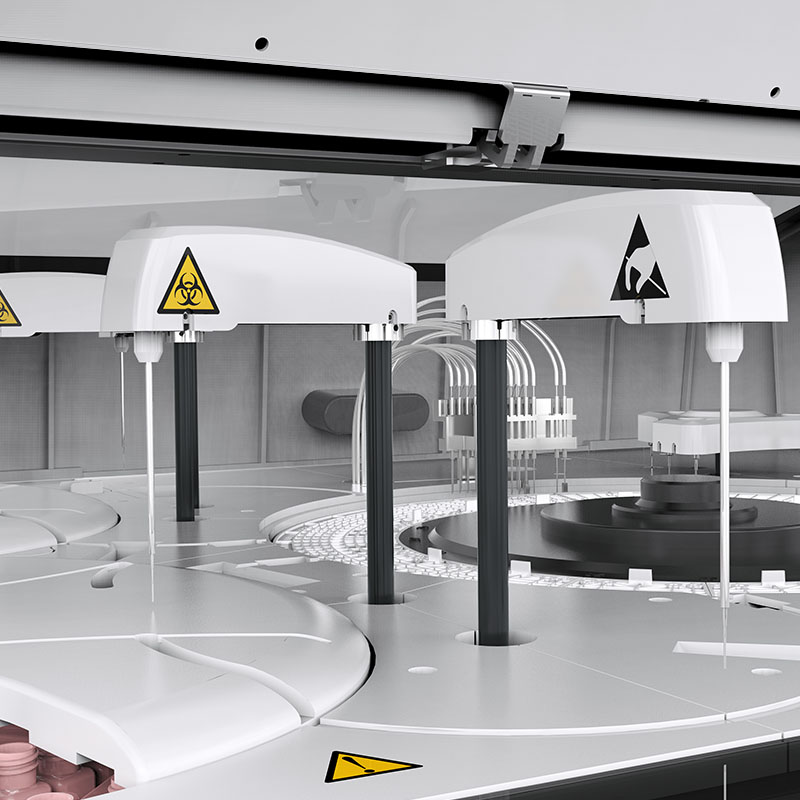

7. Probe with anti-collision function, liquid level detection function.

Technical Parameters:

Model	BK-2000
Overall Performance	Throughput	2000 tests/hour, ISE(Optional)
	Analysis Method	End-point, Fixed-time, Rate(Kinetic), Turbidimetry
	Certificates	CE, FDA, ISO9001, ISO14001, ISO13485
Sample&Reagent System	Sample Positions	300 sample positions
	Reagent Positions	250 reagent positions
	Sample Volume	1~35μl
	Reagent Volume	10~350μl
	Probe	Teflon coating, with anti-collision function, liquid level detection function
	Probe Washing	Automatic washing interior and exterior
	Reagent Cooling	Refrigerated tray with independent switch
Reaction System	Temperature Control	Water bath 37±0.1℃, real-time monitoring
	Cuvettes	432 reusable cuvettes, optical length 5.5mm

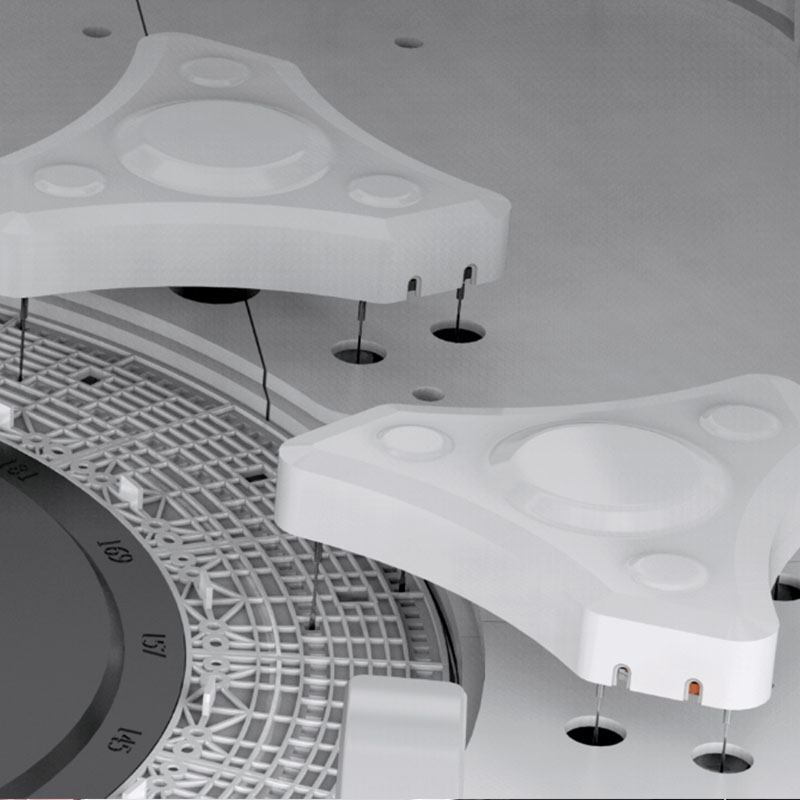

	Mixer Probe	Independent stirring

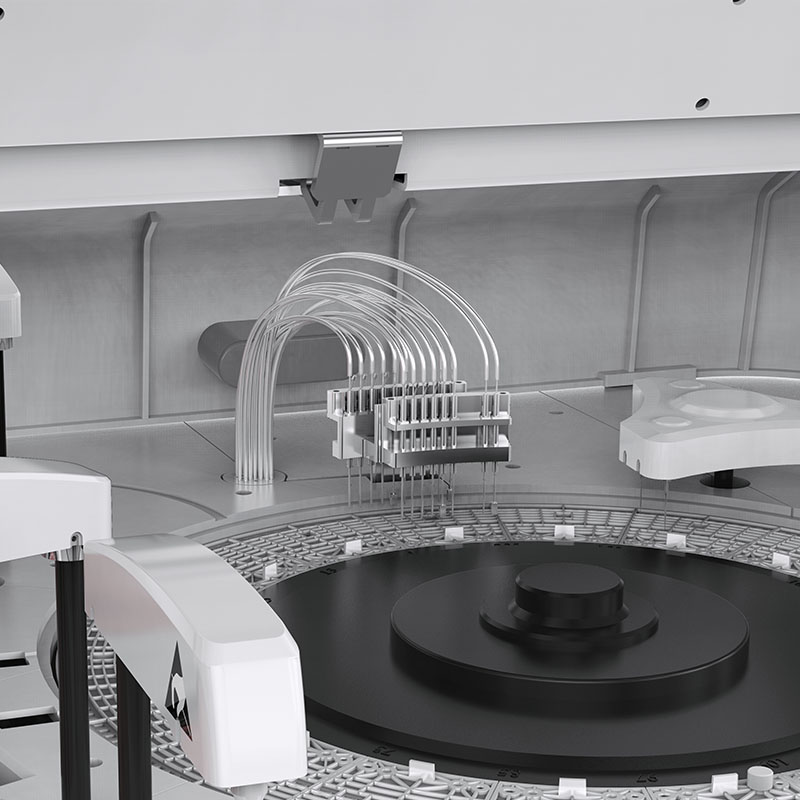

	Washing	Automatic cuvettes washing
	STAT function	YES
Optical System	Light Source	12V/50W halogen lamp/holographic concave grating
	Spectrophotometry	Post-spectral spectrophotometry
	Wavelength	16 wavelength from 340~850nm
	Absorbance	0~3.5Abs
Calibration&QC	Calibration	Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P
	Quality Control	Real-time QC, Westgard Multi Rule, Cumulative Sum Check, Twin Plot(2D)

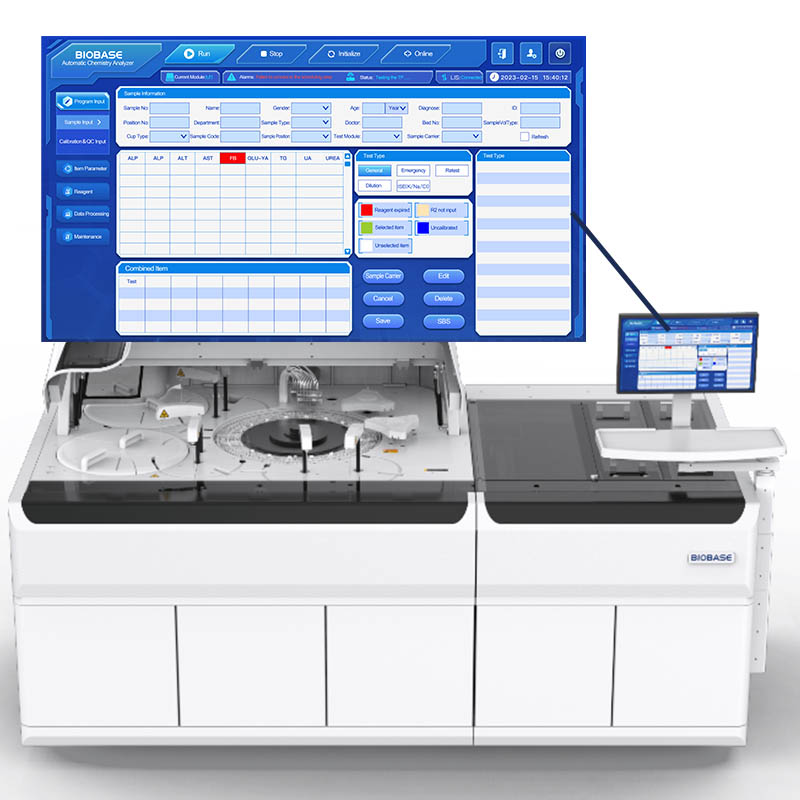

Data Management	Software	Windows 7/8/10, 32 or 64 bit
	LIS System	Bi-direction, support HL7 protocol
	Interface	LAN port access
	Printer	External, multiple reporting mode available
Working Conditions	Power Supply	AC220V±10%, 50/60Hz(Standard) 110V±10%, 60Hz(Optional), 3000W
	Temperature	15~30℃(±2 ℃)
	Water Consumption	Deionized water: 80L/H
	Humidity	40~85%
Size&Weight	External Size(W*D*H)	Scheduling module: 972*1225*1495mm Analysis module: 1505*1225*1245mm
	Net Weight	Scheduling module: 160kg Analysis module: 500kg
	Package Size(W*D*H)	Scheduling module: 1410*1350*1170mm Analysis module: 1685*1410*1460mm
	Gross Weight	Scheduling module: 235kg Analysis module: 600kg
