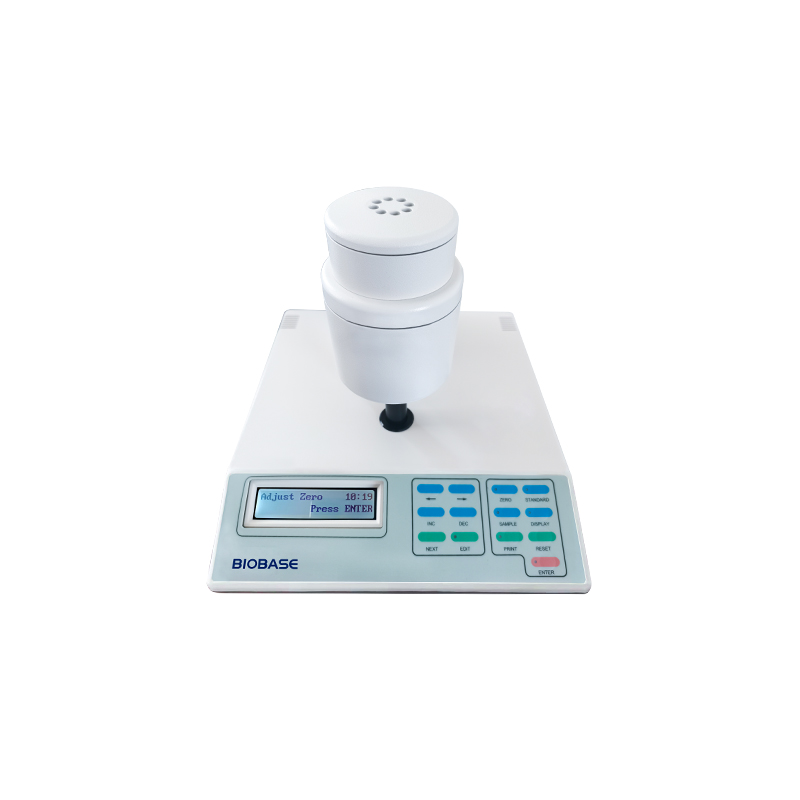

Whiteness Colorimeter

Application:

Whiteness colorimeter is widely used in building materials (cement, silicate, talcum powder, kaolin), daily chemicals (cosmetics, detergents, washing powder), ceramics (building ceramics, daily ceramics), flour, salt industry, food, Beverage, textile, flax, fiber, chemical industry, plastics, metallurgy, ultrafine powder, papermaking, printing, measurement, commodity inspection, etc.

Feature:

1.Wide range of applications:

The instrument can perform reflective measurement on solid samples, powder samples, pasty samples, silk samples and other surfaces.

2.Good measurement performance:

The computer-aided design is adopted to make the spectral characteristics of the instrument measurement sensor conform to the CIE standard observer response curve, and can accurately obtain the XYZ tri-stimulus value.

3.Rich color system and chromaticity value:

The instrument provides a variety of color systems, whiteness values and reference color differences, etc.

4.High automation and multi-function:

The instrument can automatically collect and process data during operation, and the operation is simple and fast. The instrument also has a complete editing function, the user can input or modify the data and color difference target value of the standard whiteboard through the keyboard, and can choose the output mode arbitrarily.

Technical Parameter:

Model	BK-W3C
Lighting/Observation Condition	0/d Condition
Observing Condition	Standard D65 luminous source
Standard Observer	10° field of view
Measuring Aperture	φ 1 8 mm
Specimen Size	Diameter >φ15mm, Thickness <40mm
Indication Accuracy	x, y 0.0001, other 0.01
Stability	Zero drift ≤ 0.1 Indication drift ≤0.2
Measurement Accuracy	(Whiteness) W<1.0
Measurement Repeatability	(Whiteness) ΔW<0.2
Apparent Color Parameters	Absolute value: CIE XYZ, Yxy, L*a*b*, L*C*H*, HunterLab; Chromatic aberration: Yxy, L*a*b*, L*C*H*, HunterLab; Whiteness: CIE86 whiteness Wg and TW value, R457 whiteness Wr value, Hunter whiteness Wh value, GB5950 whiteness Wj value, Stensby whiteness Ws value, Stephansen whiteness Wp value
Power Supply	220V,50/60Hz (Standard); 110V, 60Hz (Optional)
Working Temperature	0~40°C
External Size(W*D*H)	300* 330*280 mm
Net Weight	4.8 kg
Packed Size(W*D*H)	400*400*400mm
Gross weight	9kg

Whiteness Colorimeter — professional solution in the New Products category

Whiteness Colorimeter is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Whiteness Colorimeter

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Whiteness Colorimeter fits easily into existing process lines and IT infrastructure.

Areas of application New Products

New Products solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Whiteness Colorimeter allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Whiteness Colorimeter you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
