Features:
1. Outer material : cold rolled steel plate with spraying surface; inner material : SUS stainless steel plate.
2. PID microprocessor temperature control with LED display.
3. Integral molded silicone rubber door seal ring for good air tightness.
4. Toughened bulletproof double glazed doors.
5. With parameter memory function, automatically resume operation when power restoration.
6. The heater is located in the chamber on the shelf, and separate temperature control, with a short heating time, the same level of temperature uniformity is good.(Except BOV-30L/50L)
Technical Parameters:
Model | BOV-30V | BOV-50V | BOV-90V | BOV-215V | BOV-90VL | BOV-215VL |
Capacity | 23L | 53L | 91L | 213L | 91L | 213L |
Temp. Range | RT+10~200℃ | RT+10~250℃ | RT+10~200℃ |
Temp. Fluctuation | ±1℃ |
Vacuum Degree | ＜133Pa |
Vacuum Display | Pointer-type vacuum pressure gauge | Pointer-type differential pressure vacuum gauge with rotatable vacuum value | LED digital display, push button input of the vacuum value |
Vacuum Control | Manual control | Automatic differential pressure control | Pressure sensor+deviation control |
Timing Range | 0~9999min |
Power Supply | AC 220V, 50/60Hz (Standard); 110V, 50/60Hz (Optional) (External transformer) |
Consumption | 500W | 1400W | 1600W | 2200W | 1600W | 2200W |
Shelf | Aluminum shelf*1 | Aluminum shelf*2 | Fixed electric heating aluminum plate*2 | Fixed electric heating aluminum plate*3 | Fixed electric heating aluminum plate*2 | Fixed electric heating aluminum plate*3 |
Standard Accessories | Shelves | Shelves, vacuum pump, vacuum tube |
Optional Accessories | Vacuum pump: 2XZ-2(AC 220V, 50Hz; 220V, 60Hz; 110V, 60Hz), vacuum tube, external temperature protection device, LCD temperature controller, LCD temperature controller+RS485, LCD temperature controller+mini dot matrix printer, RS485 to USB converter | External temperature protection device*2, LCD temperature controller*2, LCD temperature controller*2+RS485, LCD temperature controller*2+mini dot matrix printer, RS485 to USB converter(BOV-90 series); External temperature protection device*3, LCD temperature controller*3, LCD temperature controller*3+RS485, LCD temperature controller*3+mini dot matrix printer, RS485 to USB converter(BOV-215 series) |
Internal Size(W*D*H) | 296*300*270mm | 416*370*346mm | 450*450*450mm | 556*600*640mm | 450*450*450mm | 556*600*640mm |
External Size(W*D*H) | 590*492*468mm | 710*562*544mm | 611*641*1398mm | 721*794*1638mm | 611*641*1398mm | 721*794*1638mm |
Package Size(W*D*H) | 670*610*600mm | 790*660*670mm | 710*710*1550mm | 940*810*1800mm | 710*710*1550mm | 940*810*1800mm |
2XZ-2: 580*215*367mm |
Net Weight | 55kg | 67kg | 145kg | 208kg | 143kg | 207kg |
Gross Weight | 65kg | 79kg | 171kg | 245kg | 168kg | 244kg |
2XZ-2: 23kg |

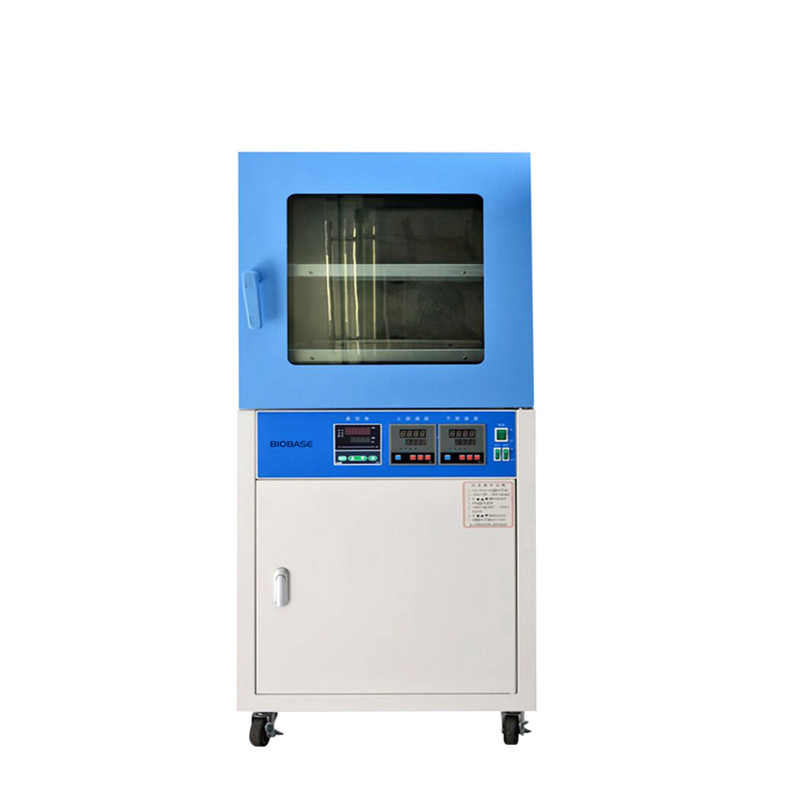

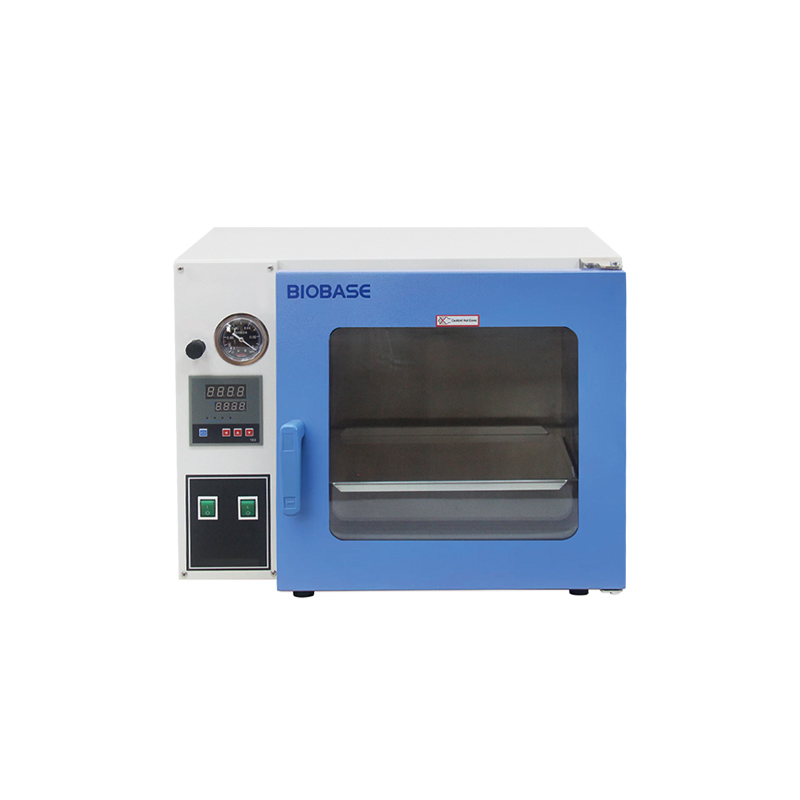

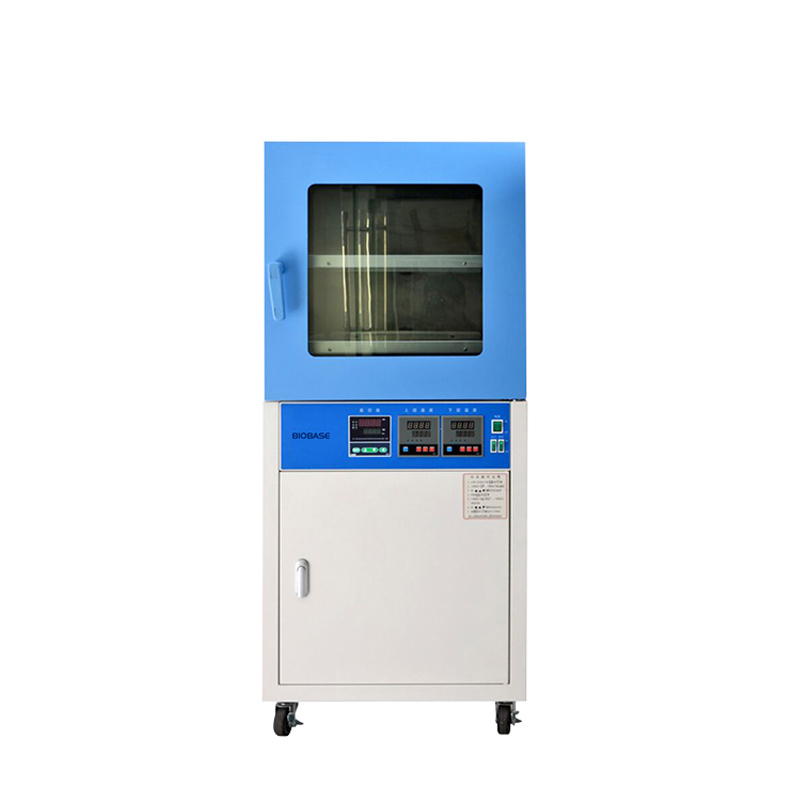

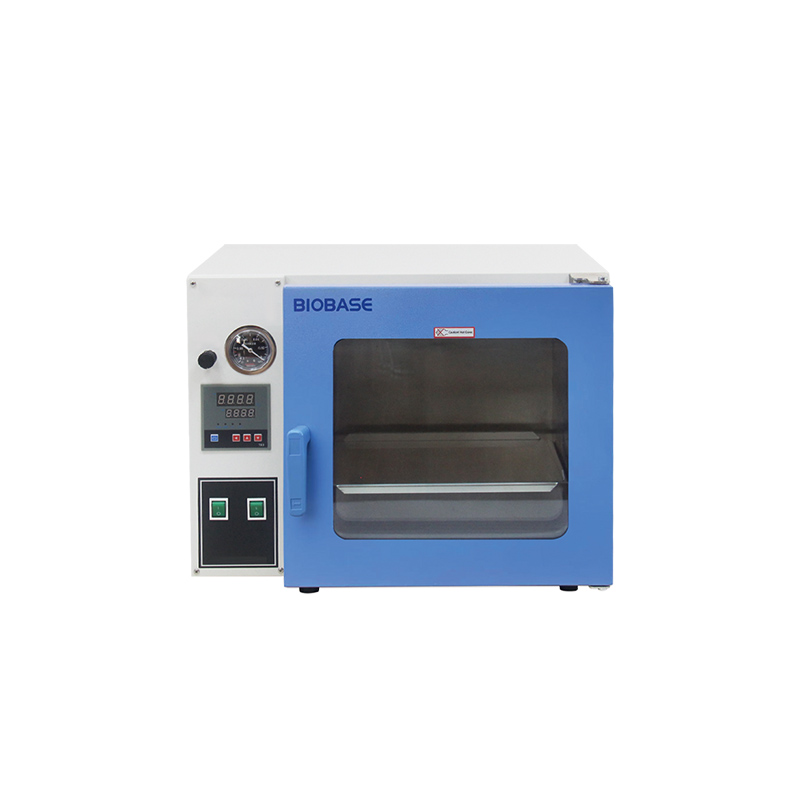

Vacuum Drying Oven(BOV-V/VL) — professional solution in the Vacuum Drying Oven category
Vacuum Drying Oven(BOV-V/VL) is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Vacuum Drying Oven(BOV-V/VL)
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Vacuum Drying Oven(BOV-V/VL) fits easily into existing process lines and IT infrastructure.
Areas of application Vacuum Drying Oven
Vacuum Drying Oven solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Vacuum Drying Oven(BOV-V/VL) allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Vacuum Drying Oven(BOV-V/VL) you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Vacuum Drying Oven(BOV-V/VL) to the cart or contact our manager. We will help integrate Vacuum Drying Oven into existing processes without downtime and unnecessary costs.
