Features:
1. With memory function in case of power-failure.
2. Operators are available to walk into the fume hood to operate if need.
3. Large room exhaust system, suitable for large laboratory instruments and equipment.
Technical Parameters:
Model | FH1200(W) | FH1500(W) | FH1800(W) |
External Size(W*D*H) | 1200*800*2250mm | 1500*800*2250mm | 1800*800*2250mm |
Internal Size(W*D*H) | 980*550*1670mm | 1280*550*1670mm | 1580*550*1670mm |
Max Opening | 1300mm |
Exhaust Airflow Volume | 1150m³/h | 1500m³/h | 1850m³/h |
Inflow Air Velocity | 0.3~0.8m/s |
Noise | ≤62dB |
Vibration | Amplitude≤5μm |
Illumination | ≥800Lux |
Fluorescent Lamp | 12W*2 | 16W*2 | 16W*2 |
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
Consumption | 400W | 500W | 800W |
Front Window | Manual, 5mm toughened glass, height adjustable |
Material | Exterior | 1.0mm cold-rolled steel with bacteria powder coating |
Interior | Compact laminate board with good acid and alkali resistance function |
Standard Accessory | External blower, LED lamp, Water tap, Gas tap, PP cup sink, Remote control water valve, Remote control gas valve, Waterproof sockets*4, 5 meters φ300mm PVC exhaust duct |
Sockets | Total load of 4 waterproof sockets: ≤500W |
Package Size(W*D*H) | Main body | 1400*1050*2450mm | 1710*1050*2450mm | 2010*1050*2450mm |
Exhaust Blower | 970*810*720mm | 1040*890*710mm | 1040*890*710mm |
Gross Weight | 300kg | 340kg | 390kg |

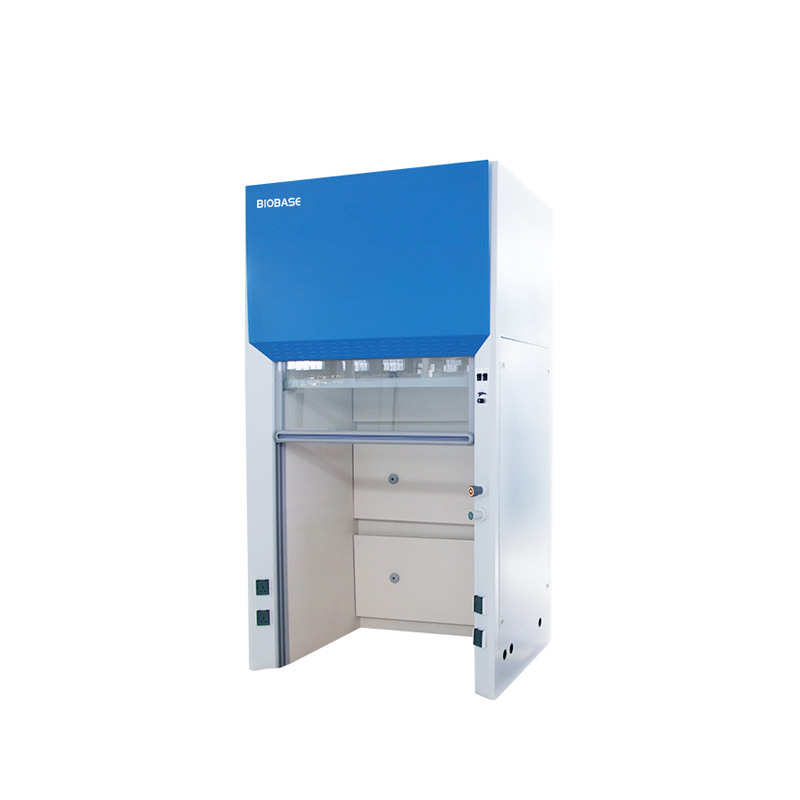

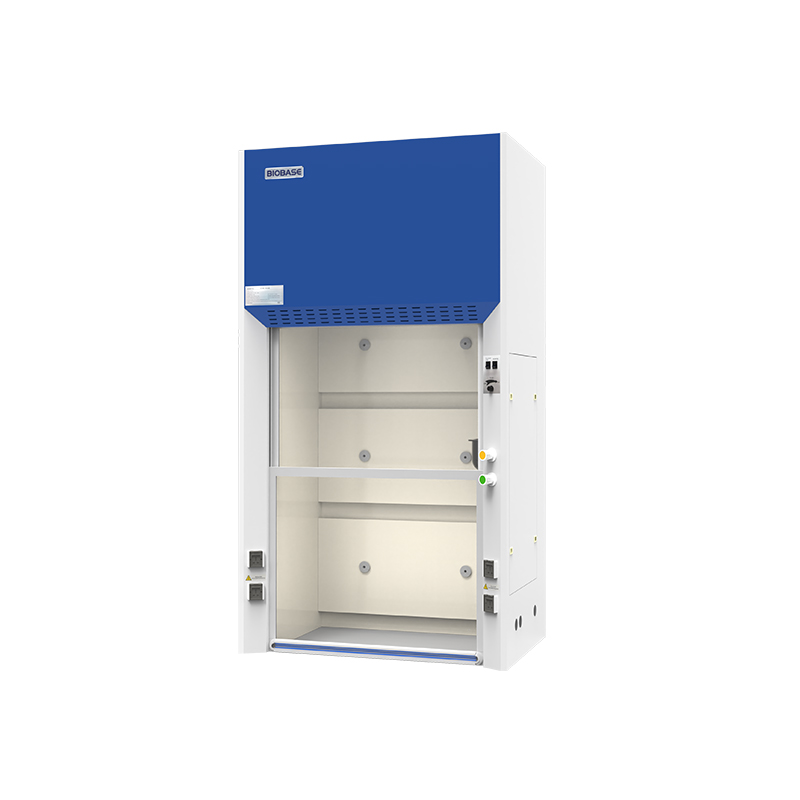

Walk-in Fume Hood FH(W) Series — professional solution in the Fume Hood category
Walk-in Fume Hood FH(W) Series is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Walk-in Fume Hood FH(W) Series
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Walk-in Fume Hood FH(W) Series fits easily into existing process lines and IT infrastructure.
Areas of application Fume Hood
Fume Hood solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Walk-in Fume Hood FH(W) Series allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Walk-in Fume Hood FH(W) Series you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Walk-in Fume Hood FH(W) Series to the cart or contact our manager. We will help integrate Fume Hood into existing processes without downtime and unnecessary costs.
