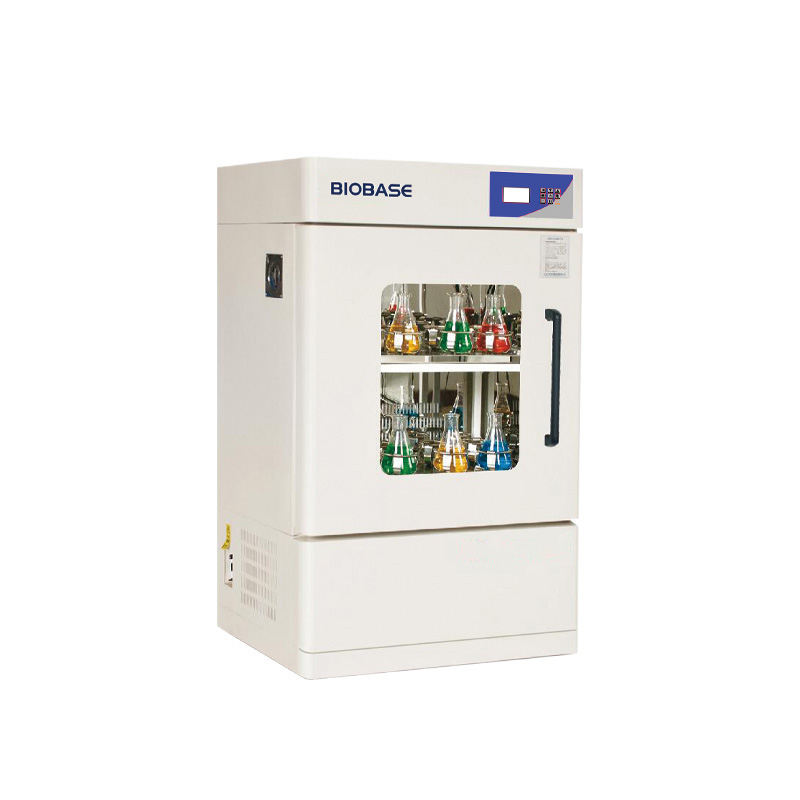

Vertical Type Shaking Incubator Single Door Double Door(BJPX-D)

Features:

1. The first cutting-edge USB data recording system. The data of the whole experiment process was automatically recorded.

2. U disk to record the whole process of experimental data(temperature, speed, time can be recorded).

3. Download data automatically tabulated to save and print. Mouse click to easily replay the experiment process. It is convenient to optimize reaction conditions, screen experimental methods, and confirm the experimental process.

4. Multi-section speed, temperature, time control system. A variety of different speed, temperature and time experimental modes can be set at one time, and the operation mode can be automatically changed during operation.

5. Super low speed start, the speed is out of control, automatic lock, adjustable starting speed. Unique dynamic balance design to ensure smooth operation.

6. Silent fan design, forced convection mode and unique air duct design ensure good temperature uniformity.

7. Automatic refrigeration mode, using environmentally friendly refrigerant, can automatically adjust the opening and closing of the refrigeration system according to the change of environmental temperature, without manual operation.(Refrigeration type)

8. Intelligent refrigeration frost-free operation technology, automatic defrosting function, defrosting time and defrosting interval can be set freely, so that the equipment can run stably for a long time under low temperature. And has the refrigeration delay start function, effectively protect the compressor.(Refrigeration type)

9. Users can freely set three operation modes: forward, reverse and forward and reverse.

10. LCD liquid crystal display, temperature, time, speed with the interface display.

Technical Parameters:

Model	BJPX-1102D	BJPX-2102D
Capacity	175L
Temperature Control Range	Ambient temperature+5~65℃	4~65℃(@20℃)
Temperature Control Accuracy	±0.1℃
Temperature Uniformity	±0.5℃(@37℃, effective working surface)
Temperature Fluctuation	≤0.1℃(@37℃)
Timing Range	0~9999h/min(Can be untimed, continuous operation)
Control Mode	PID microcomputer control
Display	LCD display
Circulation Mode	Forced convection
Oscillation Mode	Rotary shaking
USB Data Download Processing System	Yes
Control System	Standard mode; Static mode; Persistent mode; Program control mode(Multi-section temperature, speed, time control)
Cyclotron Frequency Range	0, 20~350rpm(Can do static culture, cross or alternate operation)
Cyclotron Frequency Accuracy	±1rpm
Swing Amplitude of The Plate	Φ26mm(Can be customized Ф35(20~250rpm), Φ50(20~200rpm)
Refrigerant	/	R134a/210g
Max Capacity	Clamp Flask: 100ml*60 or 250ml*38 or 500ml*22 or 1000ml*16 Haftplatte: 100ml*60 or 250ml*36 or 500ml*24 or 1L*16
Defrost Function	/	Automatic defrosting
Auxiliary Function	Ultra-low speed start, adjustable start speed, over-speed automatic protection, monitoring timer, parameter memory, call recovery, refrigeration unit overload protection and call delay start(for BJPX-2102D), upper and lower limit over-temperature sound and light alarm, automatic stop upon opening door, set parameters to check, monitor temperature and ambient temperature correction
Material	External material: ABS; Internal material: stainless steel
Power Supply	AC220V, 50Hz(Standard); 220V, 60Hz; 110V, 50/60Hz(Optional, external transformer)
Consumption	600W	850W
Shelves	500*360mm, 2pcs
Standard Accessories	Clamp Flask: 250ml*24, shelf*2
Optional Accessories	Lighting function, UV disinfection function, printer, haftplatte
External Size(W*D*H)	700*580*1280mm
Package Size(W*D*H)	825*720*1490mm
Net Weight	180kg
Gross Weight	220kg

Vertical Type Shaking Incubator Single Door Double Door(BJPX-D) — professional solution in the Shaking Incubator category

Vertical Type Shaking Incubator Single Door Double Door(BJPX-D) is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Vertical Type Shaking Incubator Single Door Double Door(BJPX-D)

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Vertical Type Shaking Incubator Single Door Double Door(BJPX-D) fits easily into existing process lines and IT infrastructure.

Areas of application Shaking Incubator

Shaking Incubator solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Vertical Type Shaking Incubator Single Door Double Door(BJPX-D) allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Vertical Type Shaking Incubator Single Door Double Door(BJPX-D) you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
