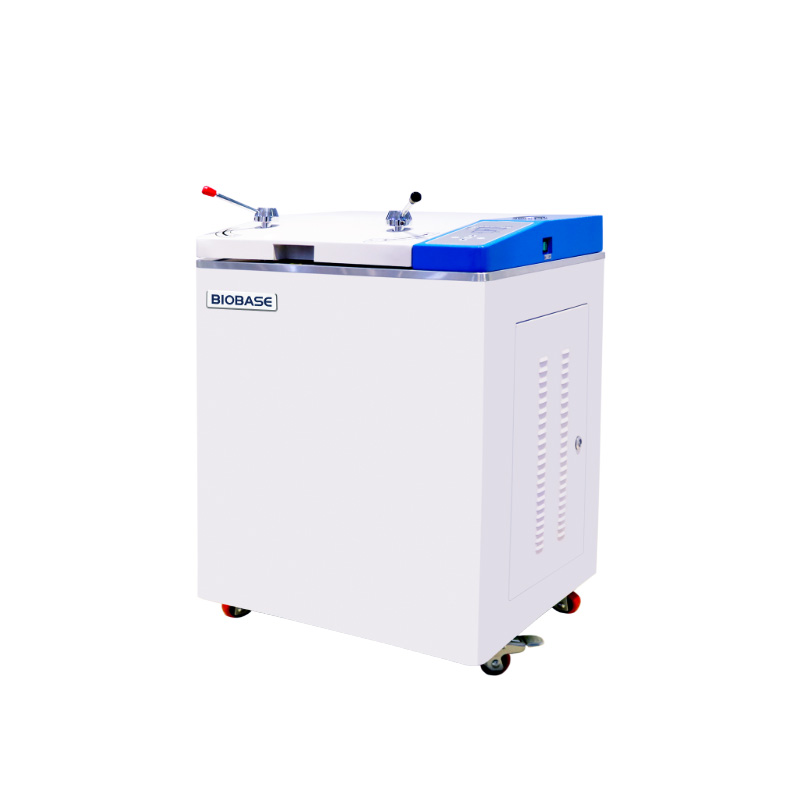

Vertical Sterilization Autoclave BKQ-Z30I

Features:

1. The flip-up quick-open door structure opens the cover quickly and labor-saving.

2. Universal wheels are installed on the base of the machine to facilitate the movement and adjustment of the machine.

3. It has a quick maintenance window, and the electrical part does not need to remove the cover for maintenance.

4. Steam generation method: heating inside the main body, no external steam source is required.

5. There are optional programs for exposed instruments, packaging instruments, rubber, dressings, solid customization and non-solid customization.

6. Self-expanding silicone sealing ring has good sealing effect and long service life. It is molded with transparent medical silicone.

7. Real-time detection and display of the temperature in the sterilization chamber, with a display accuracy of 0.1℃.

8. The LED digital tube displays temperature, time, alarm code, and the indicator light indicates the current operating status.

9. Use single-chip microcomputer control, heating, sterilization, and exhaust. Automatic control, no excessive manual operation.

10. Use gravity displacement and positive pressure pulsation exhaust to exhaust the cold air in the load and sterilization room.

11. Directly add water to the pot manually, and the entire sterilization process saves more time.The sterilization cycle ends with a buzzer prompt.

12. An optional printer can be equipped to record the temperature during the sterilization process.

13. A variety of programs

There are exposed program, packaging program, rubber program, dressing program, liquid program, liquid customization and solid customization.

Technical Parameters:

Model	BKQ-Z30I	BKQ-Z50I	BKQ-Z75I	BKQ-Z100I
Capacity	30L	50L	75L	100L
Designed Pressure	0.28MPa
Working Pressure	0.23MPa
Designed Temp.	150℃
Working Temp.	105～136℃
Temp. Precision	0.1℃
Chamber Material	S30408
Chamber Size	φ385*412mm	φ385*515mm	φ385*715mm	φ385*915mm
Basket/ Mesh Bottom Basket/ Bucket	φ365*265mm, 1pc	φ365*360mm, 1pc	φ365*265mm, 2pcs	φ365*360mm, 2pcs
Noise	≤65dB
Altitude	≤2700m
Standard Accessories	Basket
Optional Accessories	Printer, mesh bottom basket, bucket
Consumption	4KW
Power Supply	AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional）
External Size(W*D*H)	645*610*710mm	645*610*810mm	645*610*945mm	645*610*1150mm
Net Weight	86kg	91kg	98kg	112kg
Packing Size(W*D*H)	750*745*950mm	750*745*1100mm	750*745*1240mm	750*745*1450mm
Gross Weight	102kg	105kg	116kg	124kg

Vertical Sterilization Autoclave BKQ-Z30I — professional solution in the Vertical Autoclave category

Vertical Sterilization Autoclave BKQ-Z30I is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Vertical Sterilization Autoclave BKQ-Z30I

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Vertical Sterilization Autoclave BKQ-Z30I fits easily into existing process lines and IT infrastructure.

Areas of application Vertical Autoclave

Vertical Autoclave solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Vertical Sterilization Autoclave BKQ-Z30I allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Vertical Sterilization Autoclave BKQ-Z30I you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
