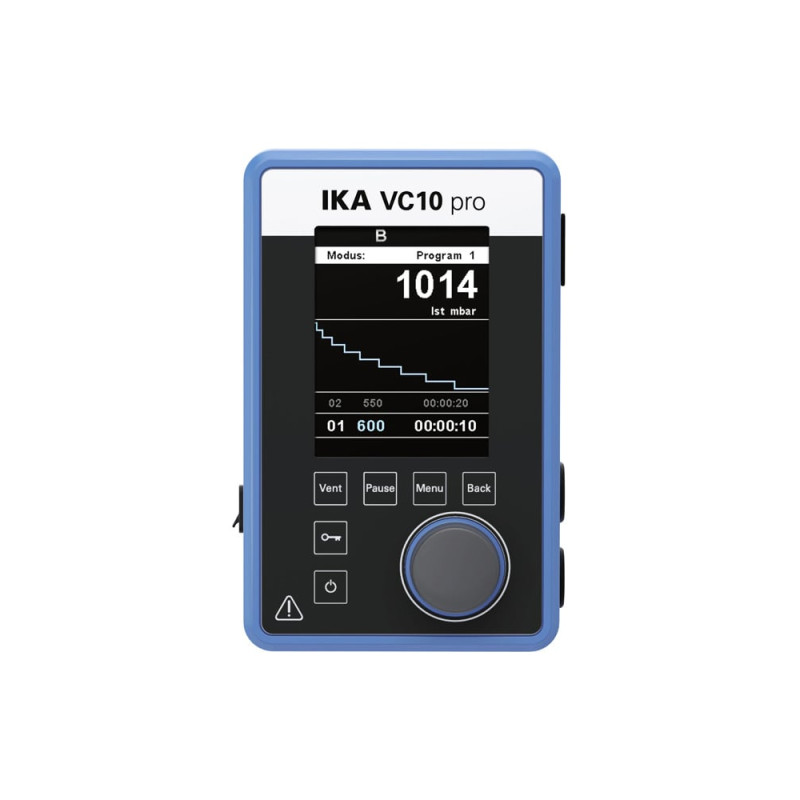

VC 10 pro

Valve-controlled, universal vacuum controller for controlled evacuation of air (gas) from laboratory equipment, as well as for classical separation, filtration or drying tasks in the laboratory. The controller is ready-to-use in numerous applications and can be easily installed. VC 10 pro can be used with all standard vacuum sources. The use of multiple controllers with one vacuum source is possible. Features: - On/off regulation of multiple vacuum sources - Automatic boiling point detection - Integrated solvent library: Helps to set the correct parameters for example in evaporation processes with rotary evaporators - Graph function - Connection for external temperature sensor: temperature value is shown on display - Valve cleaning function for long service life - Integrated ventilation valve for simple pressure equalization and aeration with inert gas after process completion - VENT short key button allows pressure equalization during a running process - Program function: up to ten user-defined programs can be saved, with up to ten pressure/time sequences - USB / RS232 interfaces for connection with the laboratory software labworldsoft® - Electronic control system for improved process efficiency and higher solvent recovery rate - High energy efficiency thanks to device-to-device communication (vacuum controller to recirculating chiller) For additional safety for users and environment, the use of the VSE 1 vacuum safety emission condenser is recommended, which prevents solvents from being released into the room air. The VSE 1 is available as an accessory. Connection diameter suction side [mm]: 8 Connection diameter pressure side [mm]: 8 Connection diameter venting side [mm]: 8 Input pressure [mbar]: 1 - 1050 Boiling point detection: yes Solvent library: yes Two-point control: yes Analog speed vacuum control: yes Display: TFT Pressure unit / scale: mbar, hPa, mmHg, Torr Vacuum sensor: yes Vacuum sensor type: ceramic Al2O3 Pressure max. for pressure sensor [bar]: 1.6 Measurement range (absolute) [mbar]: 1 - 1100 Control range [mbar]: 1 - 1100 Resolution pressure [mbar]: 1 Measurement uncertainty [mbar]: 1 Medium temperature (gas) [°C]: 5 - 40 Vacuum valve: yes Venting valve: yes Condensate trap: no Emission condenser: no Connection for ext. temperature sensor: PT1000 Temperature unit: °C / °F Temperature measuring range [°C]: -10 - 200 Temperature measurement resolution [K]: 1 Accuracy of temperature measurement [K]: ±1 Timer: yes Time setting min. [s]: 1 Time setting max. [min]: 6000 Vacuum speed control interface: VACSTAR Material in contact with medium: Al2O3, PTFE, FPM, PPS Housing material: PBT Clean room qualified: no Explosion proofed: no Fastening: stand / clamp Fastening diameter [mm]: 16 Mode automatic: yes Mode manual: yes Mode pump %: yes Mode program: yes Graph function: yes Chiller control: yes Vacuum leakage test: yes Dimensions (W x H x D) [mm]: 95 x 150 x 110 Weight [kg]: 1.5 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 20 RS 232 interface: yes USB interface: Micro-USB Analog output: no Voltage [V]: 100 - 240 Frequency [Hz]: 50/60 Power input [W]: 24 Power input standby [W]: 2 DC Voltage [V=]: 24 Current consumption [mA]: 1000

VC 10 pro — professional solution in the IKA®-Werke GmbH & Co. KG category

VC 10 pro is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why VC 10 pro

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: VC 10 pro fits easily into existing process lines and IT infrastructure.

Areas of application IKA®-Werke GmbH & Co. KG

IKA®-Werke GmbH & Co. KG solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing VC 10 pro allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with VC 10 pro you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
