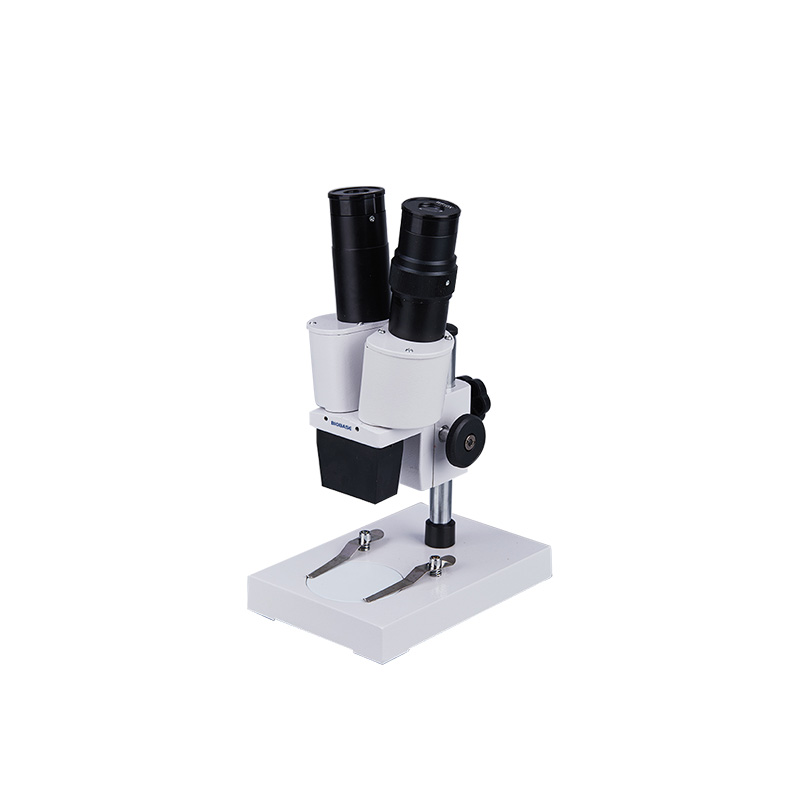

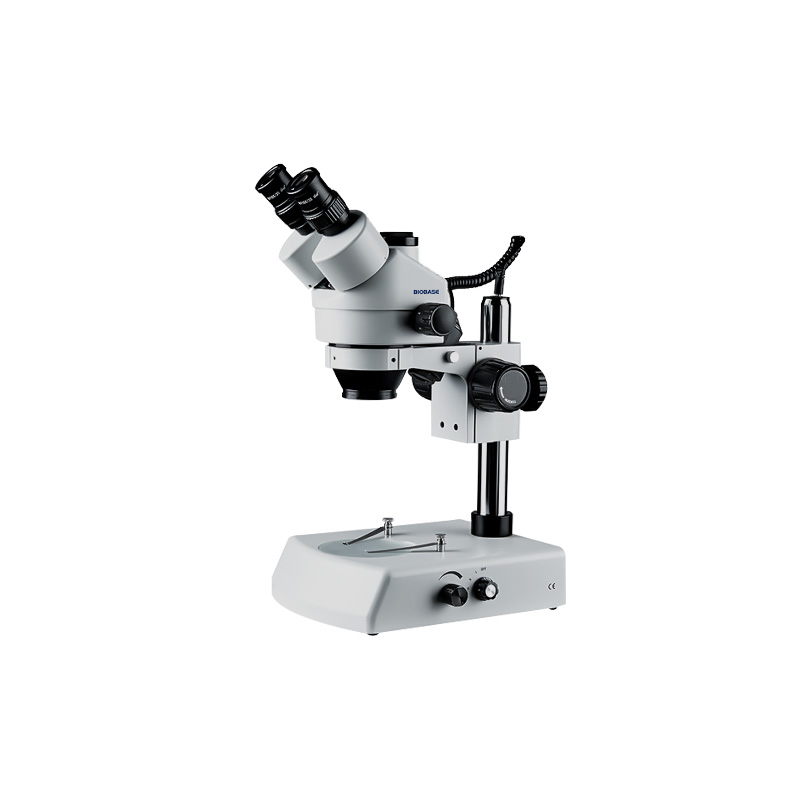

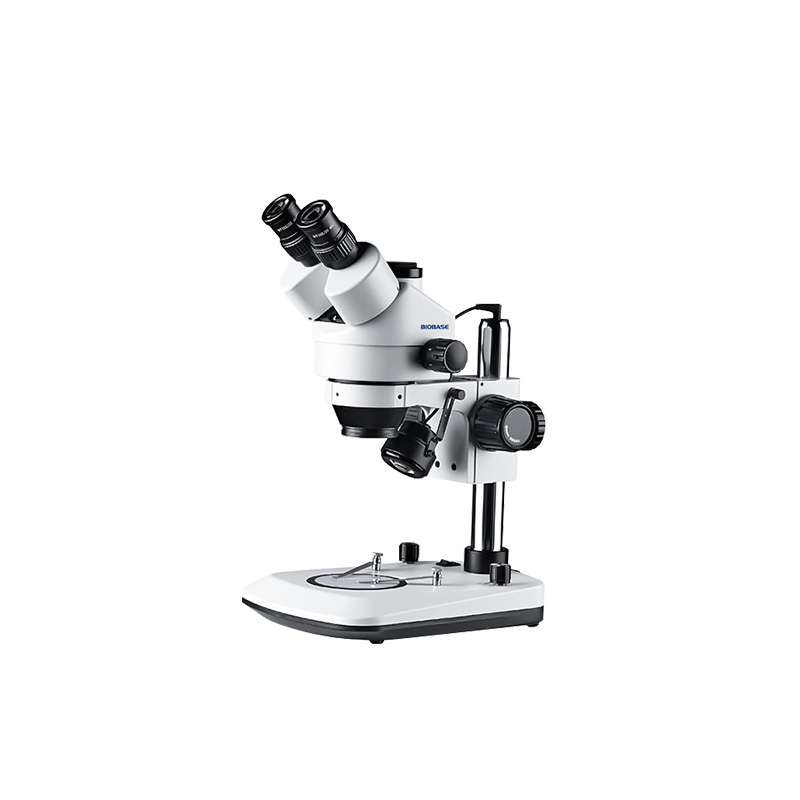

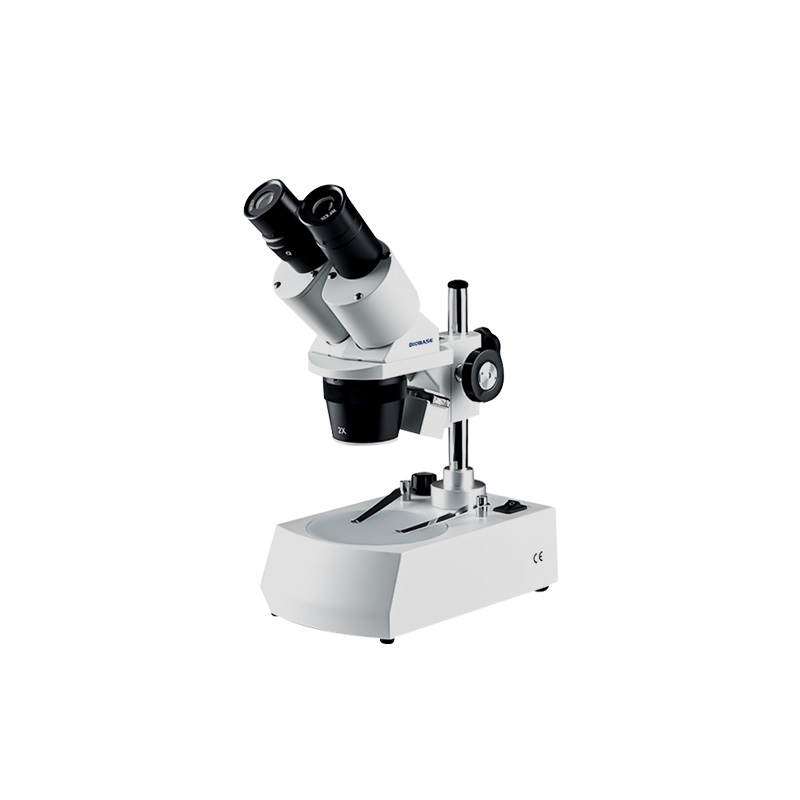

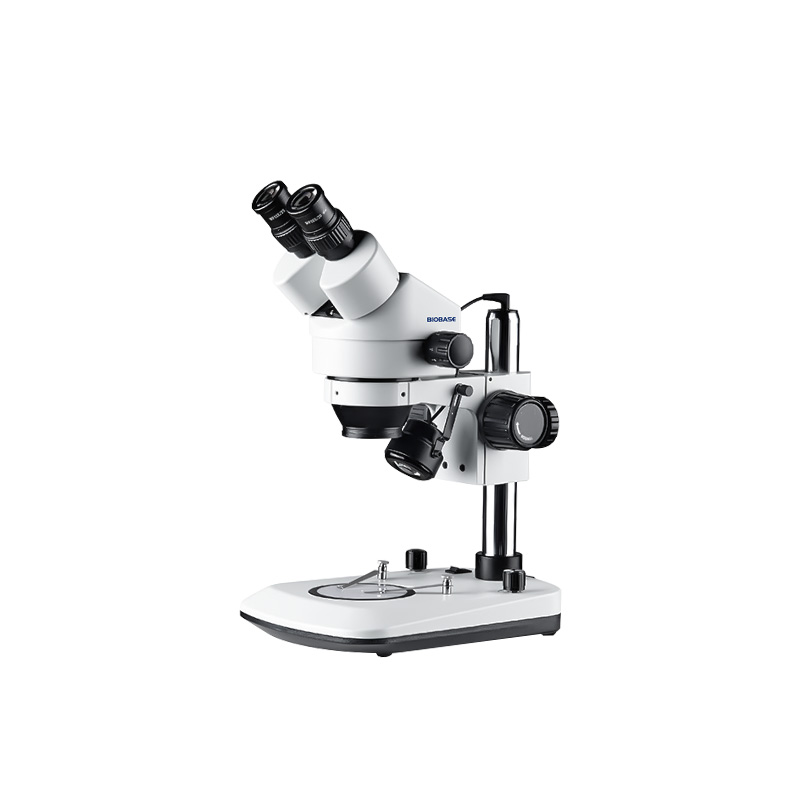

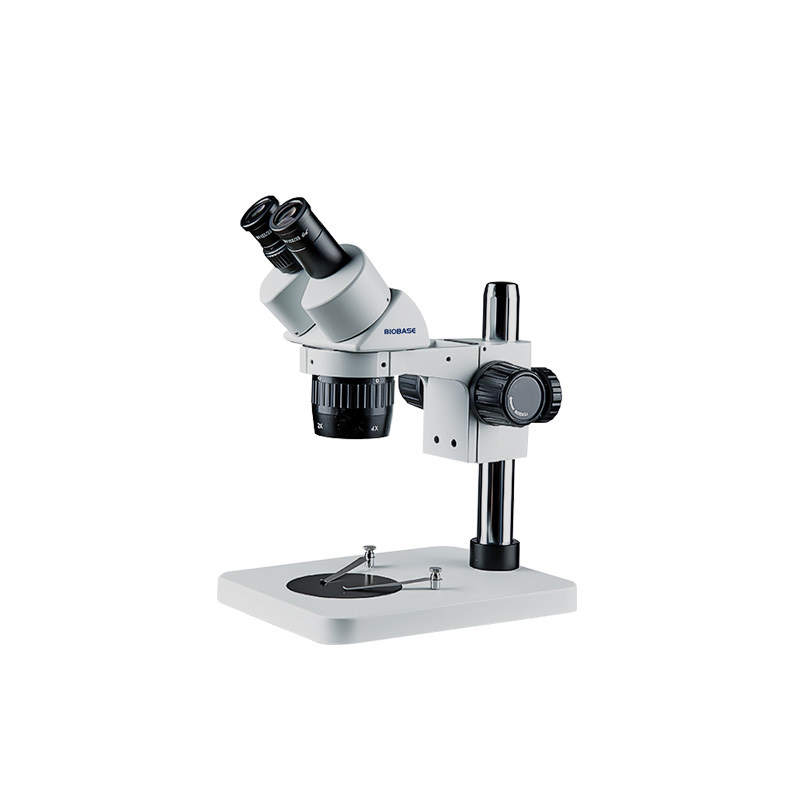

Stereo Zoom Microscope

Technical Parameters：

Model		SZM-EB2040C	SZM-E2040C	SZM-E40X
Objective	2X Objectives	/	/	/
	4X Objectives	/	/	√
	2X&4X Objectives Can Convertible	√	√	/
Eyepiece	Wide Field Eyepiece: WF10X(WF20X optional)	√	√	√
Viewing Head	Binocular, tilted 45°, pupil distance 48~75mm	√	√	/
	Binocular, 90° straight cylinder, pupil distance 48~75mm	/	/	√
Base	φ60 black and white tabletop, slicing and pressing	/	/	√
	φ90 black and white tabletop, slicing and pressing, complimentary φ90 glass panels	260*380*20mm Large flat base	√	/
Light Source	No light source	√	/	√
	Upper light source	/	/	/
	Up and down light sources	/	√	/
Lighting	100~230V/12V, 5W LED	/	√	/
Package Size(W*D*H)mm		390*240*370	370*180*300	160*220*310
Gross Weight(kg)		4.5	3.2	1.7



Model		SZM-E0745C	SZM-E0745CS	SZM-E0745CLT	SZM-E0745CLTS
Objective	0.7~4.5X zoom objective	√	√	√	√
Eyepiece	Wide Field Eyepiece: WF10X(20mm)(WF20X optional)	√	√	√	√
Viewing Head	Binocular, tilted 45°, pupil distance 48~75	√	√	√	√
	90° straight tube, C-interface	/	/	/	/
Base	260*380*20mm	/	/	/	/
	200*255*22mm	/	/	/	/
	200*255*60mm	√	√	/	/
	205*275*40mm	/	/	√	√
Light Source	No light source	√	/	/	/
	Upper light source	/	/	√	/
	Up and down light sources	/	/	/	√
	Can optional LED circular light	√	√	√	√
Lighting	100~230V/12V, 5W LED	√(Optional: 220V/6V20W or 110V/6V20W halogen lamp)	√(Optional: 220V/6V20W or 110V/6V20W halogen lamp)	√	√
Package Size(W*D*H)mm		515*268*380	515*268*380	510*360*295	510*360*295
Gross Weight(kg)		6.2	6.5	7	7.5









Stereo Zoom Microscope — professional solution in the Microscope category

Stereo Zoom Microscope is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Stereo Zoom Microscope

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Stereo Zoom Microscope fits easily into existing process lines and IT infrastructure.

Areas of application Microscope

Microscope solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Stereo Zoom Microscope allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Stereo Zoom Microscope you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
