Features:

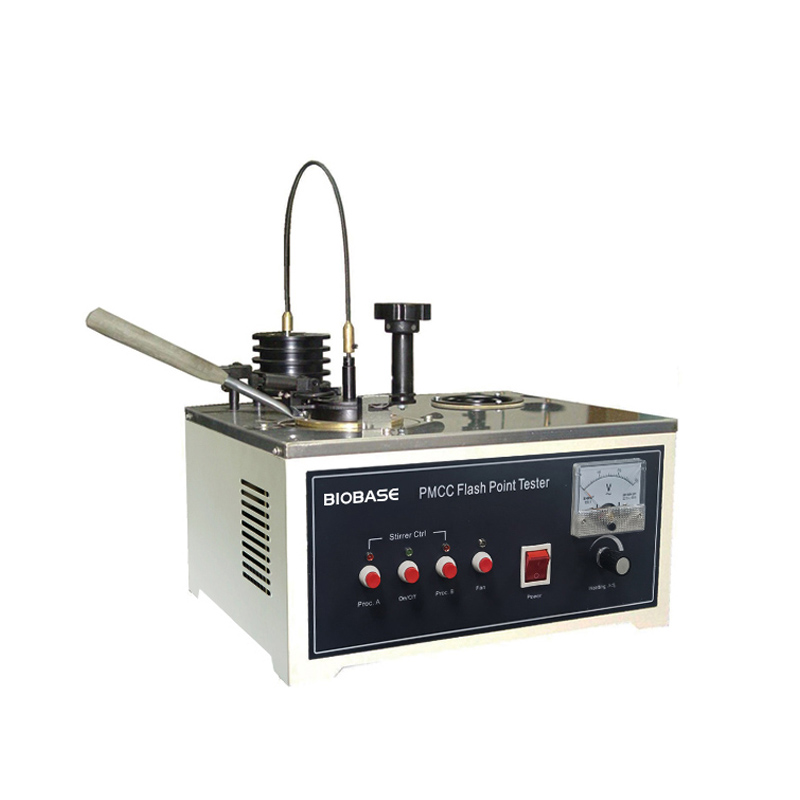

BK-FP261:
1. The heating power is adjustable and shown visually by voltmeter.
2. The structure is designed small and exquisite with stainless-steel table board.

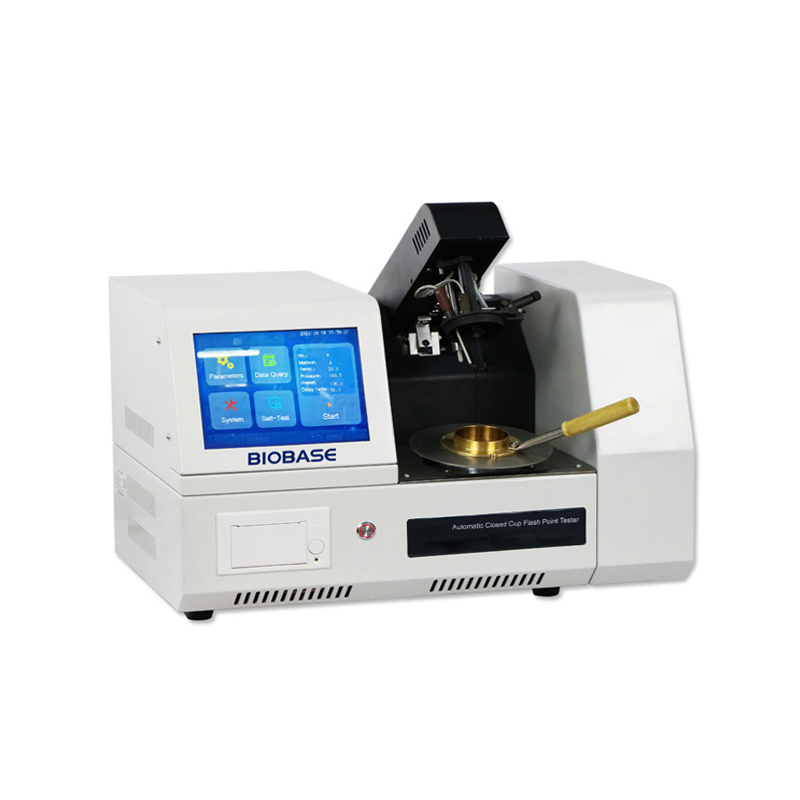

BK-FP261D:
1. 8-inch IPS high-definition capacitive screen, the test data and parameters are displayed by curve in real time.
2. Automatic measurement of atmospheric pressure, automatic correction of flash point value.
3. Equipped with Bluetooth interface. The user can query test data anytime.
4. Temperature rise, cover opening, ignition, detection and printing data are completed automatically, and the test arm rises and falls automatically.
5. Remote automatic upgrade to obtain the latest version, remote prediction, abnormal early warning, comprehensive evaluation and maintenance of instrument operation status.
6. Electronic ignition, gas flame, automatic air cooling at the end of the test.
Technical Parameters:
Model | BK-FP261 | BK-FP261D |
Ambient Temperature | 15~35°C |
Relative Humidity | ≤85% |
Flash Point Determination | Mercury-in-glass thermometer. Specifications are as below: Scale -5°C~110°C, division 0.5°C Scale 20°C~150°C, division 1°C Scale 90°C~370°C, division 2°C | Range: ambient to 230°C Repeatability: ≤3°C Reproducibility: ≤4°C Accuracy: 0.1 °C |
Oil Cup | Inner Diameter: 50.7mm~50.8mm Depth: 55.7mm~56.0mm The scribed line depth of capacity of testing oil: 33.9mm~34.3mm. Capacity of testing oil about 70ml |
Stirring Rate | Procedure A: (90~120)RPM, Procedure B: (250±10)RPM |
Igniting Device | Igniting Source: gas(or other civilian fuels, the same below) | Electric ignition. Diameter of Igniter: 0.7mm~0.8mm |
Heating Device | The heating power is continuously adjustable from 0W to 600W |
Heating Rate | (1~12)°C/min: controllable and adjustable | Procedure A: (5~6)°C/min Procedure B: (1~1.5)°C/min Procedure C: (3±0.5)°C/min |
Consumption | ≤650W | ≤600W |
Power Supply | AC220V±10%, 50Hz |
Dimension(W*D*H) | 370*320*300mm | 510*320*330mm |
Package Size(W*D*H) | 650*450*360mm | 690*500*595mm |
Gross Weight | 19kg | 34kg |
Closed-Cup Flash Point Tester — professional solution in the Flash Point Tester category
Closed-Cup Flash Point Tester is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Closed-Cup Flash Point Tester
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Closed-Cup Flash Point Tester fits easily into existing process lines and IT infrastructure.
Areas of application Flash Point Tester
Flash Point Tester solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Closed-Cup Flash Point Tester allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Closed-Cup Flash Point Tester you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Closed-Cup Flash Point Tester to the cart or contact our manager. We will help integrate Flash Point Tester into existing processes without downtime and unnecessary costs.
