Features:
1. Brushless DC motor, low noise, lasting operation.
2. 5 inch touch screen, clear and intuitive interface.
3. Run parameter encryption lock, parameter memory function.
4. With power failure recovery function.
5. Motor overheat, temperature control, abnormal over temperature instrument automatically cut off their power supply.
6. With USB data export function to achieve data traceability.
7. With ultraviolet disinfection function.
8. Standard equipped with LED light, open the door of the box light automatically open.
Technical Parameters:
Model | BJPX-SDL10 | BJPX-SDL20 |
Capacity | 155L |
Temp. Sensor | PT100 |
Temp. Range | RT+5~60℃ | 4~60℃ |
Temp. Fluctuation | ≤±0.5℃ |
Temp. Uniformity | ≤±1℃(37℃） |
Temp. Precision | 0.1℃ |
Timing Range | 0~999min |
Controller | PID |
Display | 5-inch touch screen |
Circulation Mode | Forced convection |
Shaking Mode | Rotary shaking |
Drive Mode | Single axis balanced drive type |
Vibration Range | Φ26mm |
Rotating Speed | 30~300r/min |
Rotating Accuracy | ±1r/min |
Shaking Plate Size
| 460*450mm |
Max. Capacity | Single Layer Shaker Plate | 250ml*20 or 500ml*14 or 1000ml*9 or 2000ml*6 or 5000ml*3(Flask clamp) Tube rack*2 96-well plate*12 Clamping rod shaking plate*1 |
Double Layer Shaker Plate | Upper Layer: 50ml*60 or 100ml*60 or 250ml*40 or 500ml*30(Flask clamp) Lower Layer: Universal spring clamp |
Standard. Capacity | 500ml*14(Single layer) |
Lighting Mode | LED lamp*1 |
Sterilization Mode | UV lamp*1 |
Refrigerant | / | R290 |
Ambient Temp. | 15~35℃ |
Internal Material | 304 stainless steel |
External Material | Cold rolled steel sheet |
Safety Function | High/low temperature, abnormal shutdown, motor failure, equipment door is not closed properly automatic alarm, alarm mode is sound and light alarm |
Consumption | 1200W | 1800W |
Power Supply | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer) |
Internal Size(W*D*H) | 560*500*555mm(Per unit) |
External Size(W*D*H) | 650*840*810mm(Per unit) |
Package Size(W*D*H) | 775*1005*1070mm(Per unit) |
Net Weight | 195kg(Per unit) | 215kg(Per unit) |
Gross Weight | 225kg(Per unit) | 245kg(Per unit) |

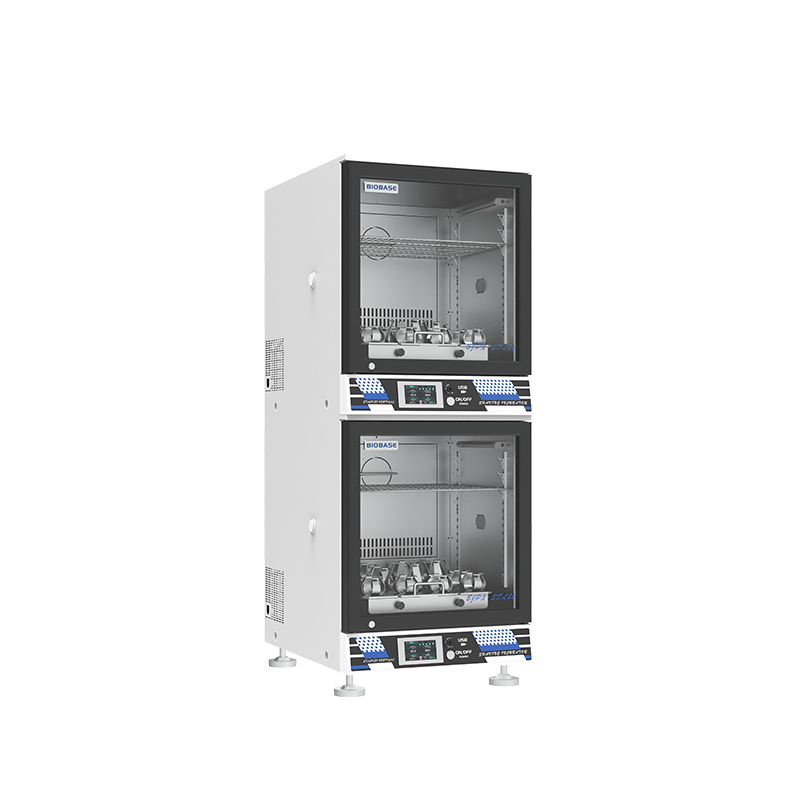

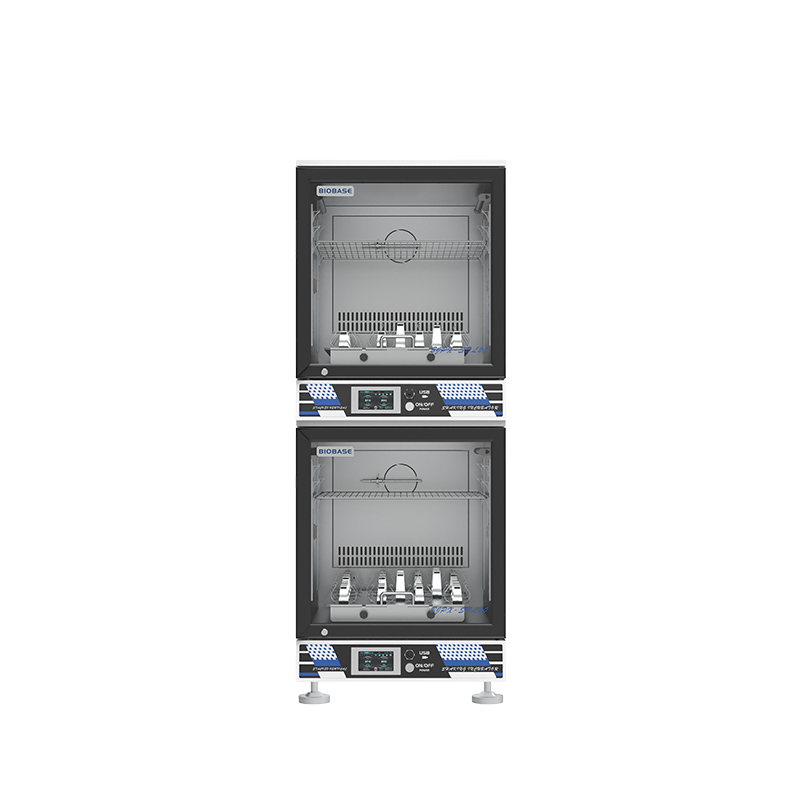

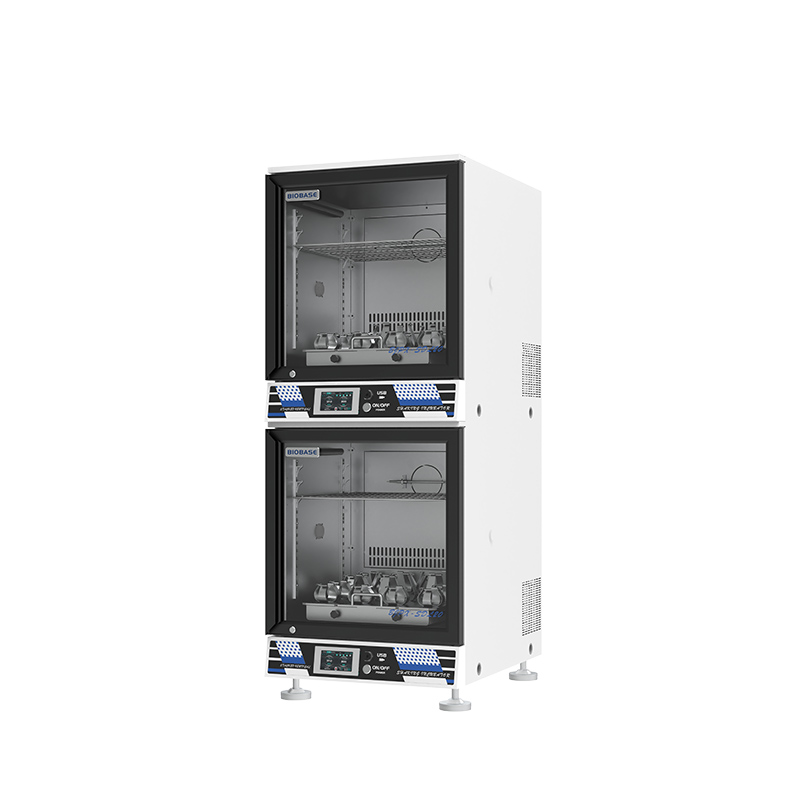

Stacked Large Capacity Shaking Incubator(BJPX-SDL) — professional solution in the Shaking Incubator category
Stacked Large Capacity Shaking Incubator(BJPX-SDL) is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Stacked Large Capacity Shaking Incubator(BJPX-SDL)
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Stacked Large Capacity Shaking Incubator(BJPX-SDL) fits easily into existing process lines and IT infrastructure.
Areas of application Shaking Incubator
Shaking Incubator solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Stacked Large Capacity Shaking Incubator(BJPX-SDL) allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Stacked Large Capacity Shaking Incubator(BJPX-SDL) you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Stacked Large Capacity Shaking Incubator(BJPX-SDL) to the cart or contact our manager. We will help integrate Shaking Incubator into existing processes without downtime and unnecessary costs.
