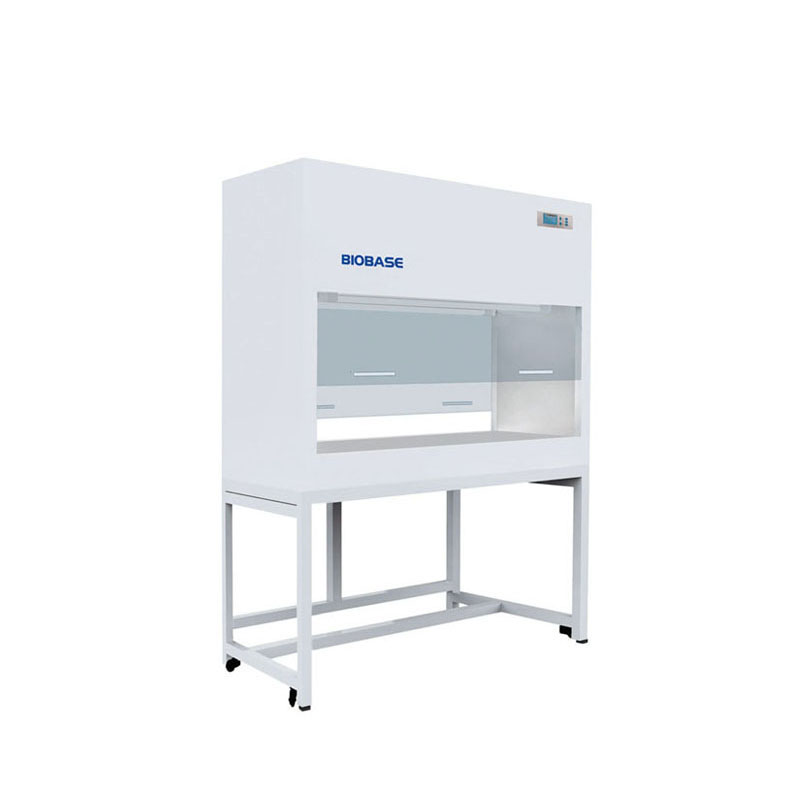

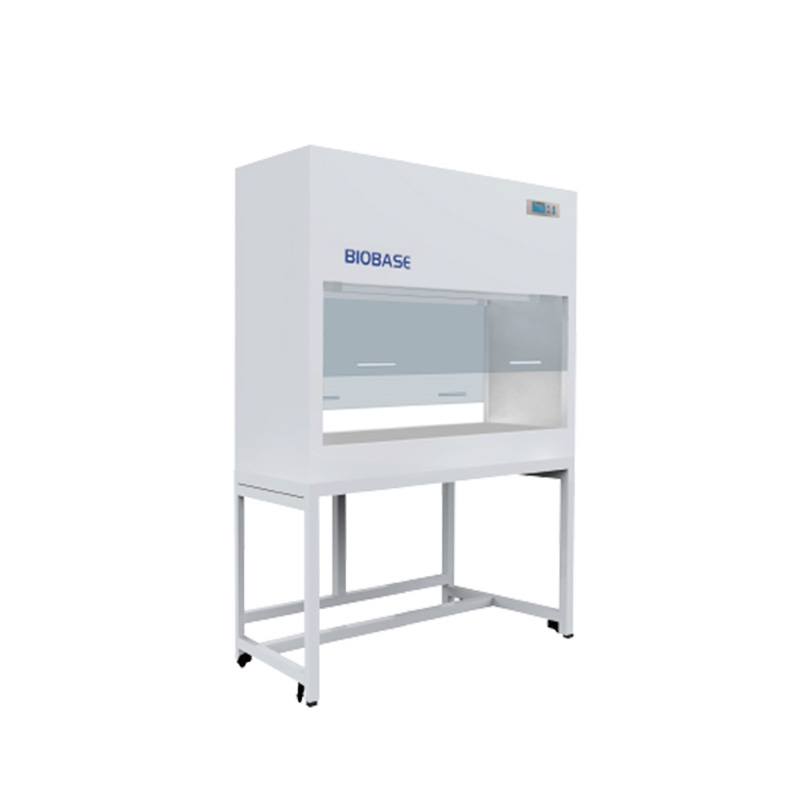

Horizontal Laminar Flow Cabinet BBS-H800

Features:
1. Horizontal laminar flow, single-sided operation.

2. Made of high-quality cold rolled steel plate material, welding structure, surface electrostatic spraying, enhancing the stability of the cabinet.

3. Equipped with pre-flter, which can preliminarily filter large particulate matter, thus improving the service life of HEPA filter.

4. Work zone is made of SUS304 material, beautiful and corrosion resistance.

5. Footmaster casters design, convenient cabinet movement and fixation.

6. LCD screen, real-time display of running status(air velocity, timer, UV lamp time, HEPA filter running time).

7. With ultraviolet lamp, fan appointment timing function.

8. Unit conversion function, which switches units between PA and m/s.

9. The UV lamp is turned on after 5s to protect the safety of the operators.

10. Perfect alarm system:

(1) Ultra-high filter pressure alarm

(2) Filter failure replacement alarm

(3) Low wind speed alarm

11. Interlocking function: UV lamp and fan, fluorescent lamp.



Technical Parameters:

Model	BBS-H800	BBS-H1100(Previous name: BBS-DDS)	BBS-H1300(X)	BBS-H1500(Previous name: BBS-SDS)	BBS-H1800(X)
External Size(W*D*H)	800*808*1690mm	1100*808*1690mm	1300*808*1690mm	1500*810*1740mm	1800*808*1890mm
Internal Size(W*D*H)	700*500*600mm	1000*500*600mm	1200*500*600mm	1400*550*600mm	1700*500*800mm
Work Surface Height	750mm			800mm	750mm
Display	LCD display
Airflow Velocity	0.30~0.45m/s
Material	Working area: 304 stainless steel Main body: 1.0mm cold-rolled steel with anti-bacteria powder coating Glass side window: 8mm toughened glass, anti-UV
Pre-Filter	Polyester fiber, washable
HEPA Filter	One, 99.995% efficiency at 0.3μm
Noise	≤65dB(A)
Illumination	≥300lx
Vibration	≤5μm(rms)
Safety	Colonies Number≤0.5CFU/30min
Clean Level	ISO level 5(Class 100)
Waterproof Sockets	Two sockets Max. Power: 500W(For BBS-H800/1300); 1000W(For BBS-H1100/1500/1800(X))
Power Supply	AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional)
Consumption	750W	1200W	800W	1250W	1400W
LED Lamp	8W*1	12W*1	12W*1	16W*1	16W*2
UV Lamp	20W*1	20W*1	30W*1	30W*1	20W*2
	Emission of 253.7 nanometers
Standard Accessories	LED lamp, UV lamp*2, Base stand, Waterproof socket*2, Hook*10
Optional Accessory	Electric height adjustable base stand
Package Size(W*D*H)	940*1030*1350mm	1240*1030*1350mm	1440*1030*1350mm	1640*1030*1350mm	1940*1030*1550mm
Gross Weight	133kg	175kg	195kg	216kg	255kg

Horizontal Laminar Flow Cabinet BBS-H800 — professional solution in the Laminar Flow Cabinet category

Horizontal Laminar Flow Cabinet BBS-H800 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Horizontal Laminar Flow Cabinet BBS-H800

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Horizontal Laminar Flow Cabinet BBS-H800 fits easily into existing process lines and IT infrastructure.

Areas of application Laminar Flow Cabinet

Laminar Flow Cabinet solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Horizontal Laminar Flow Cabinet BBS-H800 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Horizontal Laminar Flow Cabinet BBS-H800 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
