Features:
1. High quality servo motor.
2. Multi-steps rotate speed, temperature and time control systems.
3. Slow accelerate and decelerate design.
4. Advantaged air duct design.
5. Automatic defrosting function.
6. High-precision speed control.
7. High-precision temperature control.
8. Unique drive system.
9. Open door protection.
10. LCD display with bright illumination.
11. Memorized and protected operating parameters.
12. Continuously running or timing.
13. Unique slow-start design.
14. Standard of illumination and UV light.
Technical Parameters:
Model | BJPX-2012N | BJPX-2012RN |
Capacity | 180L(Per unit) |
Temp. Sensor | PT100 |
Temp. Range | RT+5~65℃ | 4~65℃(@ 20℃) |
Temp. Fluctuation | ≤0.1℃(@ 37℃） |
Temp. Uniformity | ±0.6℃(@ 37℃) |
Temp. Precision | ±0.1℃ |
Timing Range | 0~9999h/min or continuous |
Controller | PID |
Display | LCD |
Circulation Mode | Forced convection |
Shaking Mode | Rotary shaking |
Drive Mode | Multidimensional drive |
Vibration Range | Φ26mm(Can customize φ35(20~250rpm); φ50(20~200rpm)) |
Rotating Speed | 0; 20~350rpm(Top layer 20~300rpm, static culture, reverse rotation or alternate operation) |
Rotating Accuracy | ±1rpm |
Shaking Plate Size | 610*460mm |
Shaking Plate Quantity | 1pc |
Max. Capacity | 250ml*32 or 500ml*21 or 1000ml*13 or 2000ml*7(flask clamp) 250ml*32 or 500ml*20 or 1000ml*12 or 2000ml*8(haftplatte) |
Standard Capacity | Flask clamp: 500ml*20 |
Internal Material | Stainless steel |
External Material | Sprayed steel plate |
Refrigerant | / | R134a |
Heating Consumption | 800~900W |
Safety Function | Audio and visual alarm for over-temperature Alarm for over-speeds Independent over-temperature protector Shutdown protection for door opening Leakage or over-current protection Ultraviolet disinfection function Calibration of monitoring temperature and ambient temperature Overload protection of refrigeration unit and delayed start of incoming call(only BJPX-2012RN) |
Consumption | 1000W(Per unit) | 1200W(Per unit) |
Power Supply | AC220V, 50Hz(Standard); 110V, 60Hz(Optional, external transformer) |
Internal Size(W*D*H) | 715*580*450mm(Per unit) |
External Size(W*D*H) | 1120*790*620mm(Per unit) |
Package Size(W*D*H) | 1275*950*810mm(Per unit) |
Gross Weight | 220kg(Per unit) |

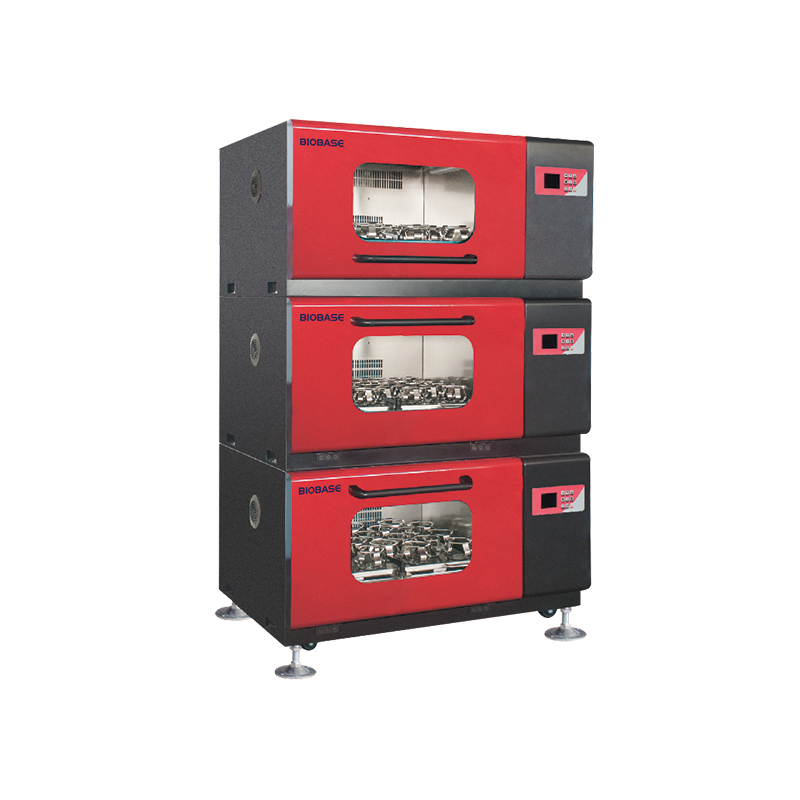

Stacked Large Capacity Shaking Incubator(BJPX-N/RN) — professional solution in the Shaking Incubator category
Stacked Large Capacity Shaking Incubator(BJPX-N/RN) is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Stacked Large Capacity Shaking Incubator(BJPX-N/RN)
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Stacked Large Capacity Shaking Incubator(BJPX-N/RN) fits easily into existing process lines and IT infrastructure.
Areas of application Shaking Incubator
Shaking Incubator solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Stacked Large Capacity Shaking Incubator(BJPX-N/RN) allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Stacked Large Capacity Shaking Incubator(BJPX-N/RN) you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Stacked Large Capacity Shaking Incubator(BJPX-N/RN) to the cart or contact our manager. We will help integrate Shaking Incubator into existing processes without downtime and unnecessary costs.
