Features:
1. The performance of pneumatic components is stable and reliable.
2. High quality plexiglass sealing barrel, effectively enhance the compressive strength.
3. Electronic pressure holding device, reduce mechanical wear.
4. PVC operation panel, LED display.
5. Built-in time display, convenient for users to record and observe the pressure holding time.
6. Automatic constant pressure air supply, automatic back blowing unloading pressure(Only for BK-ST132).
7. External compressed air filter device, easy to drain water and clean impurities(Only for BK-ST132).
8. Dual power supply independent power supply(Only for BK-ST132).
Technical Parameters:
Model | BK-ST130 | BK-ST132 |
Vacuum Degree Range | -90~0kPa |
Vacuum Accuracy Class | Class 0.5 |
Resolution | 0.1kPa |
Original Air Pressure | 0.5~0.7MPa(User-supplied, optional) |
Original Air Connection | Ф6 polyurethane pipes |
Control Method | Manual adjustment, automatic timing | Microcomputer control, automatic test |
Display | LED display |
Power Mode | / | Compressed air |
Vacuum Storage Time | 0~9999h59min59s | 0~9999s(Can be enlarged) |
Effective Size of Vacuum Chamber | Standard: φ270*210mm(H) Optional: φ360*585mm(H), and φ460*330mm(H) Note: Customization is available for other sizes |
Power Supply | AC220V, 50/60Hz; 110V, 50/60Hz(Optional) |
Standard Accessories | Main machine, vacuum chamber, air tube, hand valve, power cord, technical documents | Main machine, vacuum chamber, pressure regulating filter, air tube, power cord, technical documents |
Optional Accessories | Air compressor, sample holder |
External Size(W*D*H) | Main machine: 420*320*120mm Vacuum chamber: 300*350mm(H)(Standard) |
Package Size(W*D*H) | Main machine: 530*430*250mm Vacuum chamber: 370*370*420mm |
Net Weight | 16kg |
Gross Weight | 23kg |

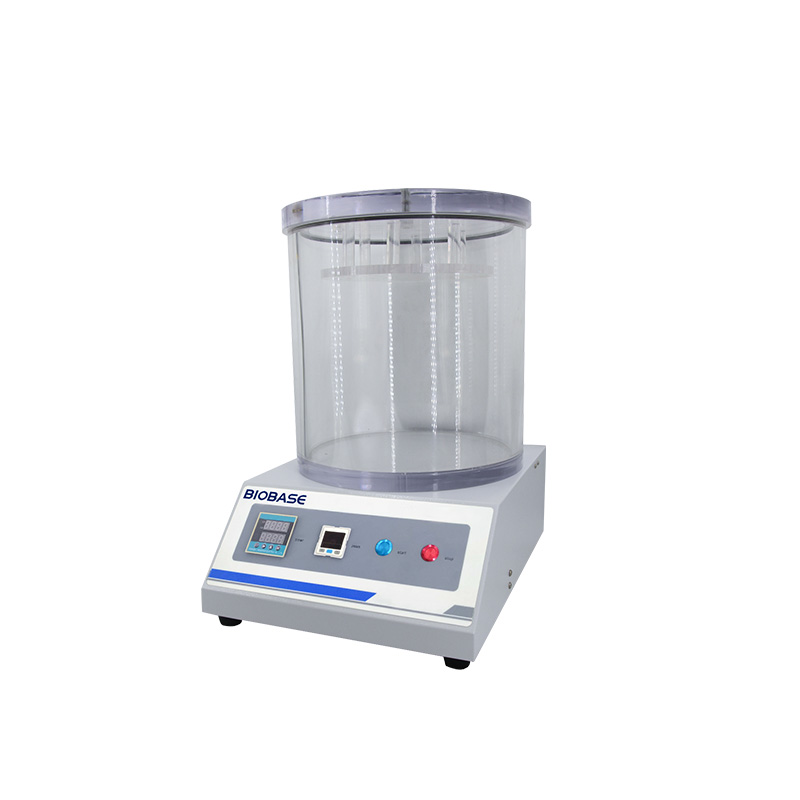

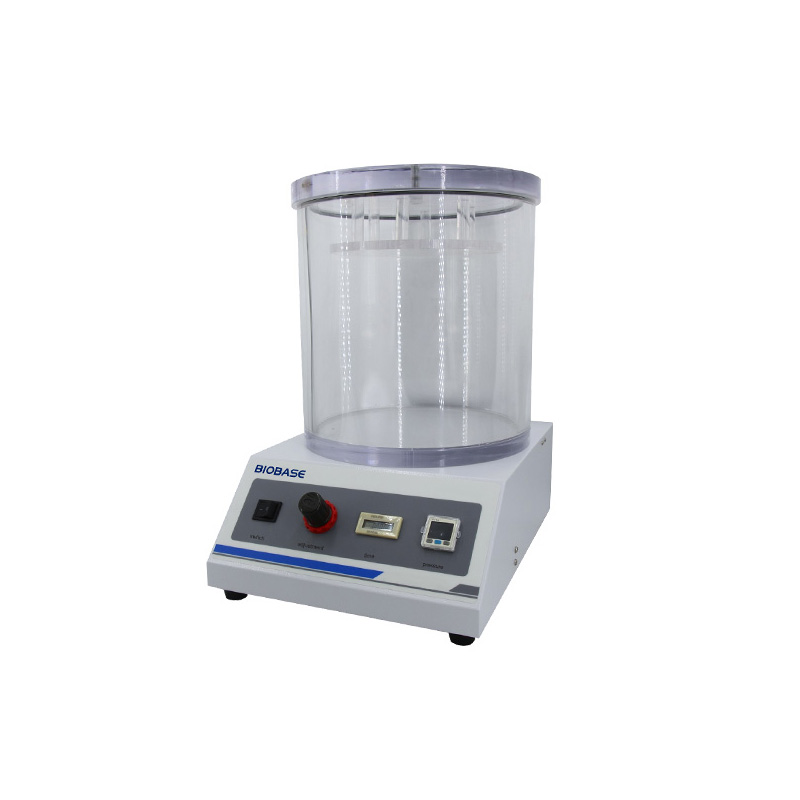

Leakage Tester BK-ST132 BK-ST130 — professional solution in the Leakage Tester category
Leakage Tester BK-ST132 BK-ST130 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Leakage Tester BK-ST132 BK-ST130
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Leakage Tester BK-ST132 BK-ST130 fits easily into existing process lines and IT infrastructure.
Areas of application Leakage Tester
Leakage Tester solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Leakage Tester BK-ST132 BK-ST130 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Leakage Tester BK-ST132 BK-ST130 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Leakage Tester BK-ST132 BK-ST130 to the cart or contact our manager. We will help integrate Leakage Tester into existing processes without downtime and unnecessary costs.
