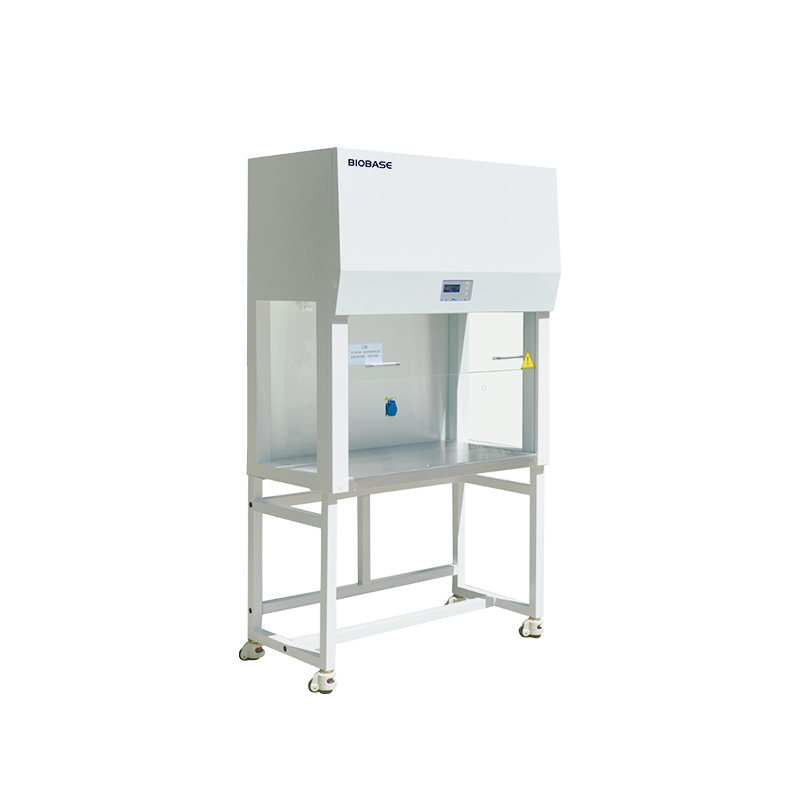

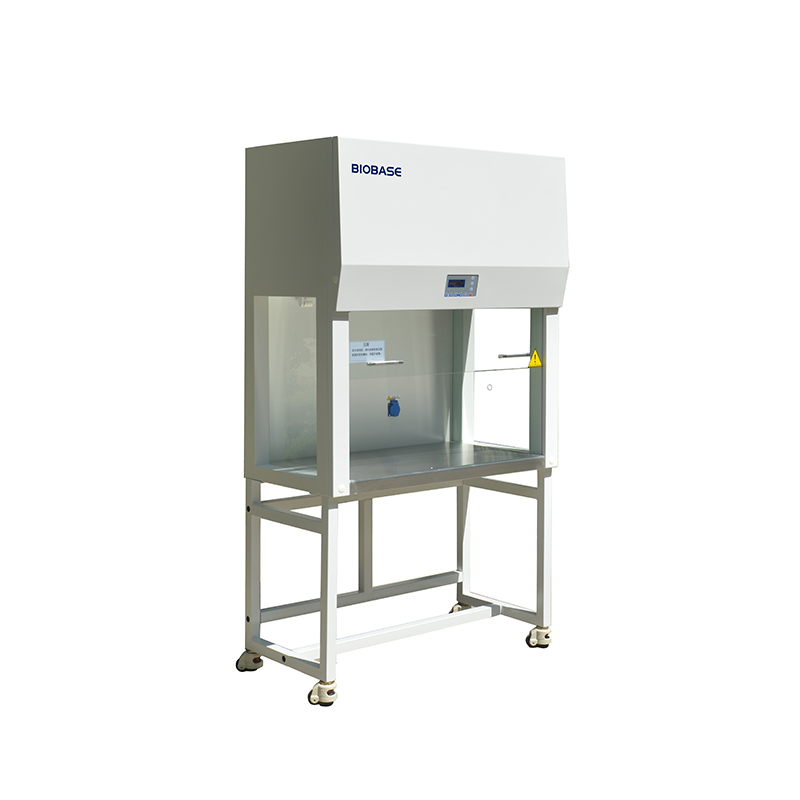

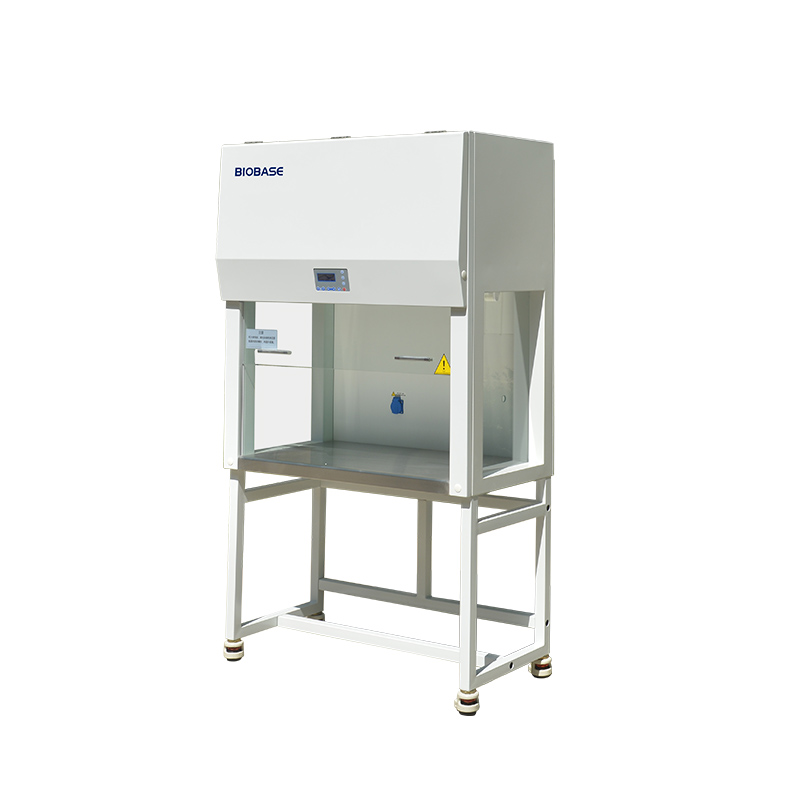

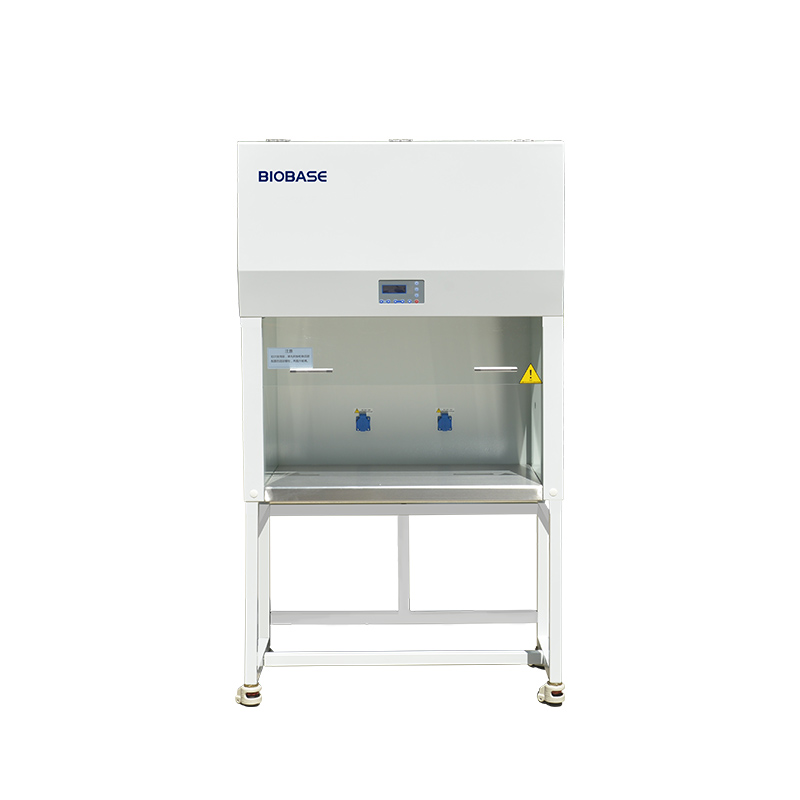

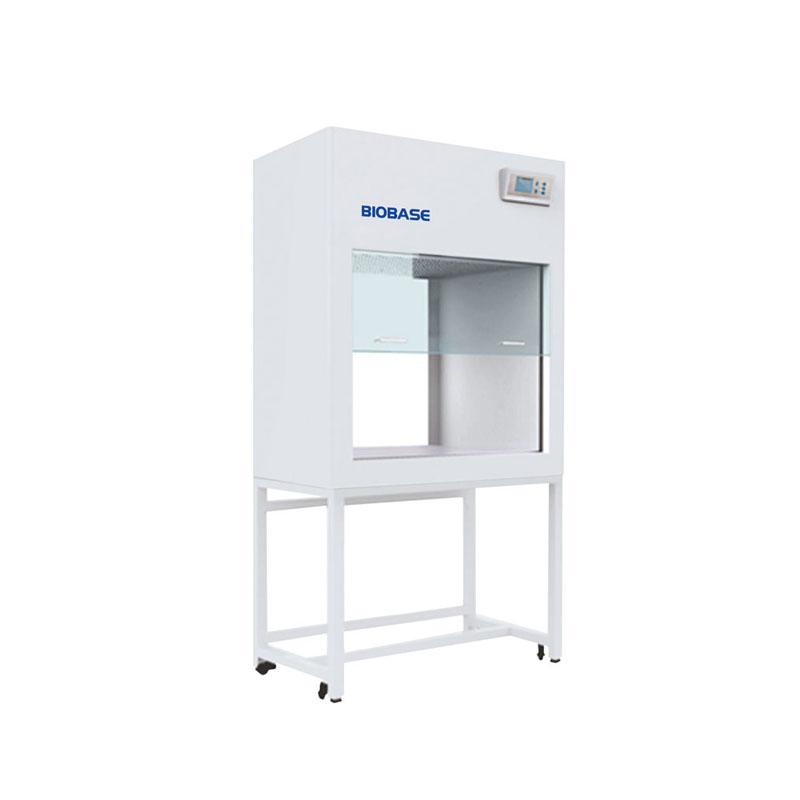

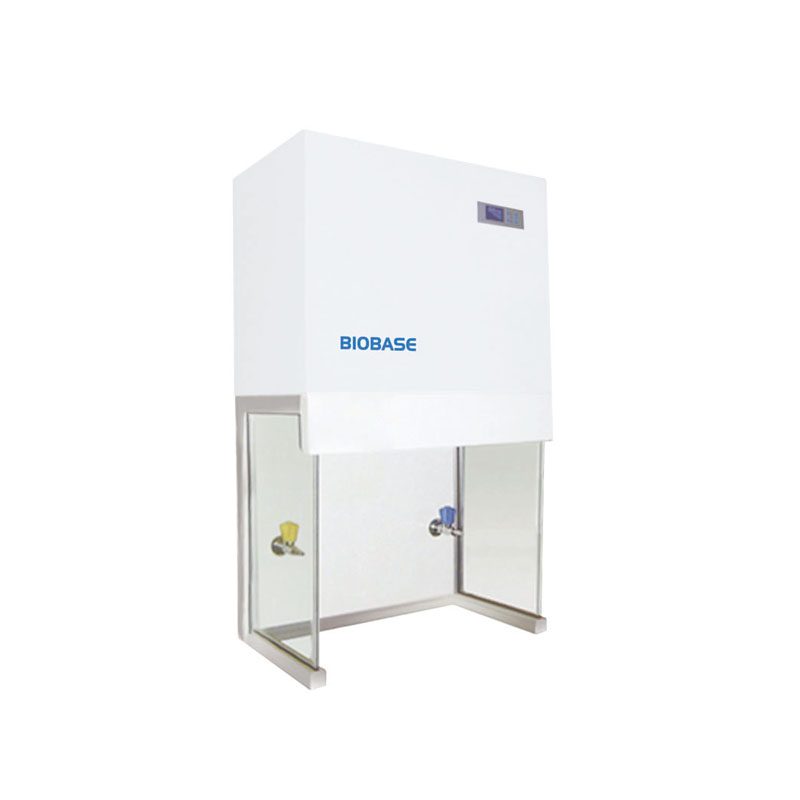

Small Vertical Laminar Flow Cabinet BBS-V680 BBS-V800 BBS-DDC BBS-SDC

Technical Parameters:

Model	BBS-V680	BBS-V800	BBS-DDC	BBS-SDC
External Size (W*D*H)	680*410*1160mm	802*650*1640mm	1060*620*1850mm	1460*620*1850mm
Internal Size (W*D*H)	630*375*615mm	800*530*540mm	935*530*650mm	1335*530*650mm
Work Surface Height	/	750mm	750mm	750mm
Display	LED display		LCD display
Airflow Velocity	Average of 0.3~0.5m/s, air speed adjustable		Average of 0.3~0.45m/s, air speed adjustable
Material	Main Body: Cold-rolled steel with anti-bacteria powder coating
	Work Table: 304 stainless steel(except model BBS-V680)
Pre-filter	Polyester fiber, washable
HEPA Filter	99.995% efficiency at 0.3μm
Noise	<65dB
Front Window	/	Manual, 5mm toughened glass, anti-UV
Max Opening	/	490mm	400mm	400mm
Illuminating Lamp	Fluorescent lamp 8W*1	LED lamp 8W*1	LED lamp 12W*1	LED lamp 16W*1
UV Lamp	15W*1	20W*1	20W*1	40W*1
	Emission of 253.7 nanometers
Consumption	160W	350W	150W	250W
Standard Accessory	Fluorescent lamp UV lamp*2 Water&gas tap	LED lamp UV lamp*2 Base stand	LED lamp UV lamp*2 Base stand	LED lamp UV lamp*2 Base stand
Optional Accessory	/	Electric height adjustable base stand
Caster	/	Universal wheel with leveling feet
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Gross Weight	75kg	116kg	177kg	224kg
Package Size (W*D*H)	840*570*1360mm	960*930*1200mm	1235*920*1355mm	1635*920*1355mm



Small Vertical Laminar Flow Cabinet BBS-V680 BBS-V800 BBS-DDC BBS-SDC — professional solution in the Laminar Flow Cabinet category

Small Vertical Laminar Flow Cabinet BBS-V680 BBS-V800 BBS-DDC BBS-SDC is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Small Vertical Laminar Flow Cabinet BBS-V680 BBS-V800 BBS-DDC BBS-SDC

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Small Vertical Laminar Flow Cabinet BBS-V680 BBS-V800 BBS-DDC BBS-SDC fits easily into existing process lines and IT infrastructure.

Areas of application Laminar Flow Cabinet

Laminar Flow Cabinet solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Small Vertical Laminar Flow Cabinet BBS-V680 BBS-V800 BBS-DDC BBS-SDC allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Small Vertical Laminar Flow Cabinet BBS-V680 BBS-V800 BBS-DDC BBS-SDC you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
