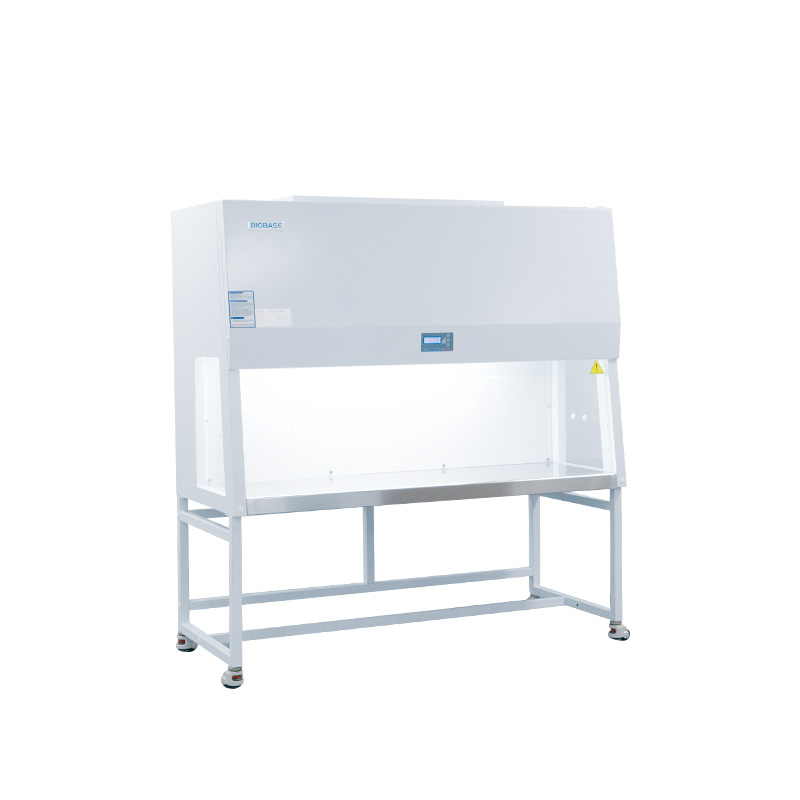

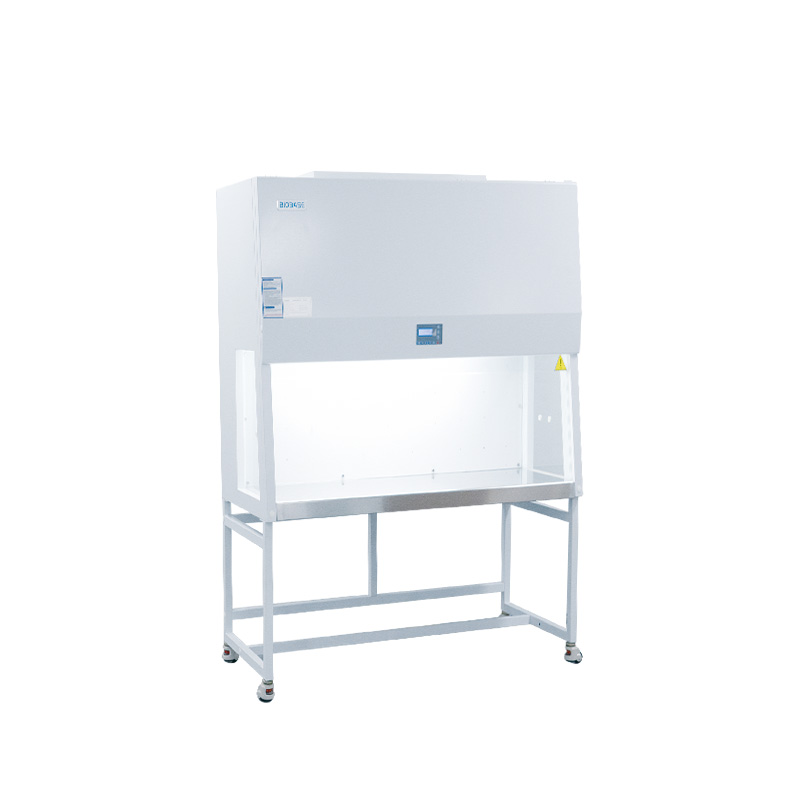

Horizontal Laminar Flow Cabinet BBS-H1300-I BBS-H1800-I

Features:

1. Horizontal laminar flow, single-sided operation.

2. Made of high-quality cold rolled steel plate material, welding structure, surface electrostatic spraying, enhancing the stability of the cabinet.

3. Equipped with pre-filter, which can preliminarily filter large particulate matter, thus improving the service life of HEPA filter.

4. Work zone is made of SUS304 material, beautiful and corrosion resistance.

5. The front and side Windows are made of 5mm thick tempered glass.

6. Footmaster casters design, convenient cabinet movement and fixation.

7. LCD screen,  real-time display of running status(air velocity, timer, UV lamp time,  HEPA filter running time).

8. With ultraviolet lamp, fan appointment timing function.

9. Unit conversion function, which switches units between PA and m/s.

10. Equipped with UV light, LED light, waterproof sockets.

11. Perfect alarm system:

(1) Ultra-high filter pressure alarm

(2) Filter failure replacement alarm

(3) Low wind speed alarm

12. Interlocking function: UV lamp and front window; UV lamp and fan, fluorescent lamp; fan and front window.

Technical Parameters:

Model	BBS-H1300-I	BBS-H1800-I
External Size(W*D*H)	1300*820*1940mm	1800*820*1940mm
Internal Size(W*D*H)	1200*520*570mm	1700*520*570mm
Work Surface Height	750mm
Max Opening	430mm
Display	LCD display
Airflow Velocity	0.30~0.5m/s
Material	Working area: 304 stainless steel Main body: 1.0mm cold-rolled steel with anti-bacteria powder coating Front window: 5mm toughened glass, anti-UV
Pre-Filter	Polyester fiber
HEPA Filter	One, 99.995% efficiency at 0.3μm
Front Window	Motorized
Noise	≤65dB(A)
Illumination	≥300lx
Vibration	≤5μm(rms)
Safety	Colonies number≤0.5CFU/30min
Clean Level	ISO level 5(Class 100)
Waterproof Sockets	Two sockets, Max. Power: 1000W
Power Supply	AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional)
Consumption	400W	500W
LED Lamp	12W*1	16W*2
UV Lamp	30W*1	30W*1
Standard Accessories	Base stand, LED lamp, UV lamp, Waterproof socket*2, Gas tap	Base stand, LED lamp, UV lamp, Waterproof socket*2, Gas tap, Water tap
Package Size(W*D*H)	1450*1060*1540mm	1940*1060*1540mm
Gross Weight	255kg	325kg

Horizontal Laminar Flow Cabinet BBS-H1300-I BBS-H1800-I — professional solution in the Laminar Flow Cabinet category

Horizontal Laminar Flow Cabinet BBS-H1300-I BBS-H1800-I is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Horizontal Laminar Flow Cabinet BBS-H1300-I BBS-H1800-I

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Horizontal Laminar Flow Cabinet BBS-H1300-I BBS-H1800-I fits easily into existing process lines and IT infrastructure.

Areas of application Laminar Flow Cabinet

Laminar Flow Cabinet solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Horizontal Laminar Flow Cabinet BBS-H1300-I BBS-H1800-I allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Horizontal Laminar Flow Cabinet BBS-H1300-I BBS-H1800-I you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
