Features:
1. The main frame is made of aluminum alloy, and the inner pot is made of 304 stainless steel, offering durability and an attractive appearance.
2. The sealing system utilizes a PTFE + FKM composite seal to maintain a high vacuum level.
3. An integrated condenser and upright double-layer serpentine coil ensure high recovery rates.
4. Electronic stepless speed regulation with forward and reverse rotation, fine-tuned by a knob, and a digital speed display for easy operation.
5. Thermostatic bath features an LCD digital display and a PT100 sensor at the bottom of the bath, dual temperature control, and dry-boil protection.
6. Manual weight-balanced lift for the main unit.
7. Dual fuses for rotation and heating provide enhanced safety.
Technical Parameters:
Model | RE-2012 |
Rotary Bottle | 1L 29# Standard opening |
Collecting Bottle | 1L 35# Ball mill opening |
Condenser | Vertical φ80*370mm |
Charging Valve | 19#(Standard size) |
Rotary Speed | 10~310rpm (Can rotate forward and reverse) |
Vacuum | 399.9Pa(3mmHg) |
Temp. Range | RT~99℃ |
Temp. Accuracy | ±1℃ |
Lifting Stroke | 170mm |
Rotary Motor Power | 30W |
Heating Power | 1300W |
Evaporating Speed | 23ml/min |
Sealing Part | PTFE+Fluororubber composite sealing ring |
Condensing Area | 0.15㎡ |
Pot Capacity | 4.6L |
Power Supply | Standard: AC220 50/60Hz; optional: AC110 50/60Hz |
Product Size(W*D*H) | 600*400*(640~810)mm |
Net Weight | 11.5kg |
Packing Size(W*D*H) | 730*550*400mm |
Gross Weight | 16kg |

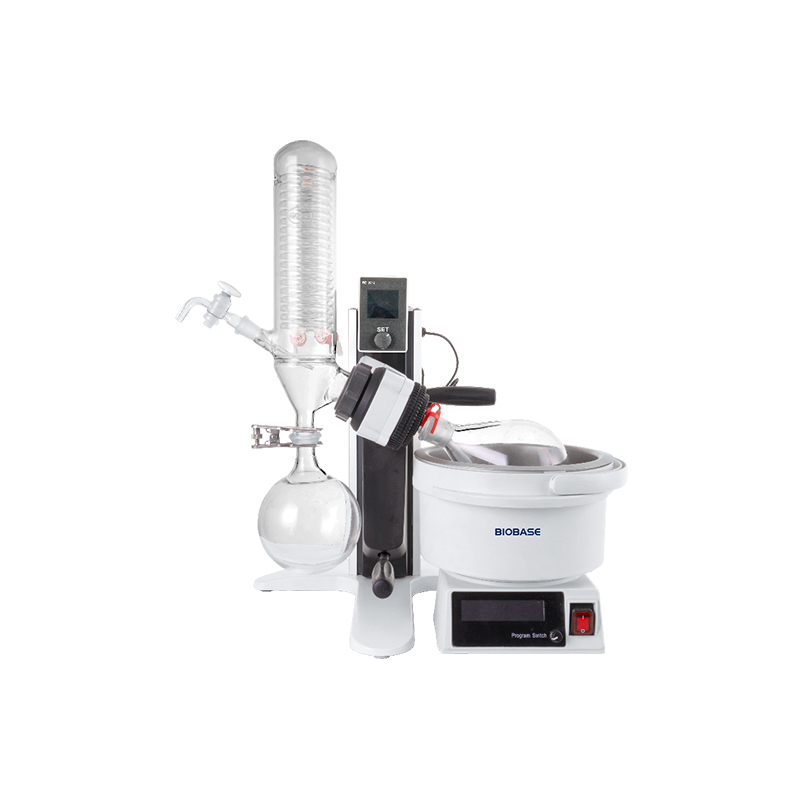

RE-2012 Rotary Evaporator — professional solution in the Rotary Evaporator category
RE-2012 Rotary Evaporator is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why RE-2012 Rotary Evaporator
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: RE-2012 Rotary Evaporator fits easily into existing process lines and IT infrastructure.
Areas of application Rotary Evaporator
Rotary Evaporator solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing RE-2012 Rotary Evaporator allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with RE-2012 Rotary Evaporator you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add RE-2012 Rotary Evaporator to the cart or contact our manager. We will help integrate Rotary Evaporator into existing processes without downtime and unnecessary costs.
