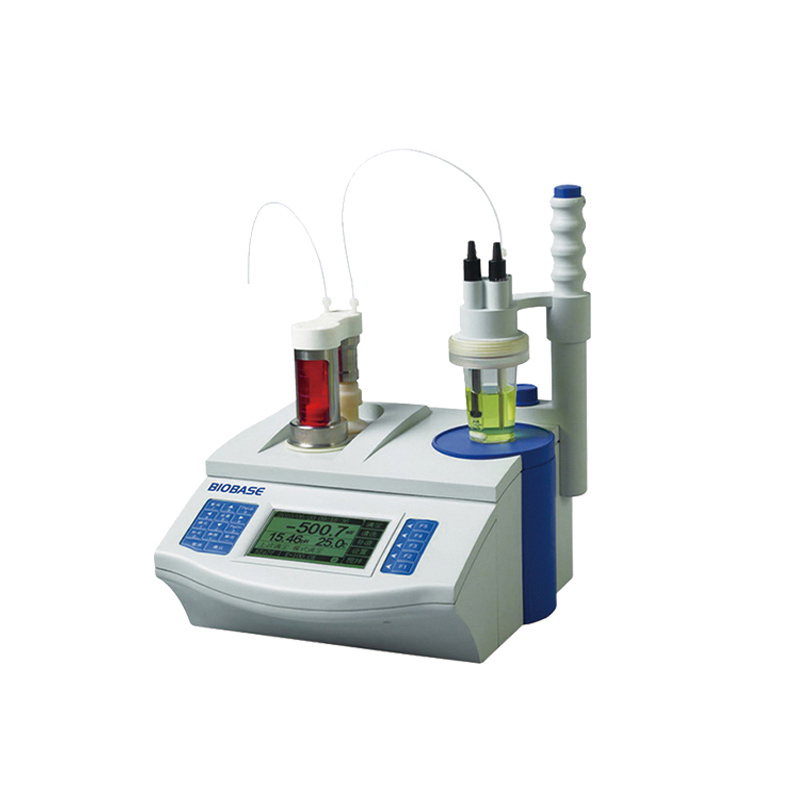

Features for Ti-40:
1. Large LCD screen.
2. Integrated design of valve and burette.
3. Built-in stirrer.
4. Titration transmission device adopts linear motor design.
5. With anti leakage device.

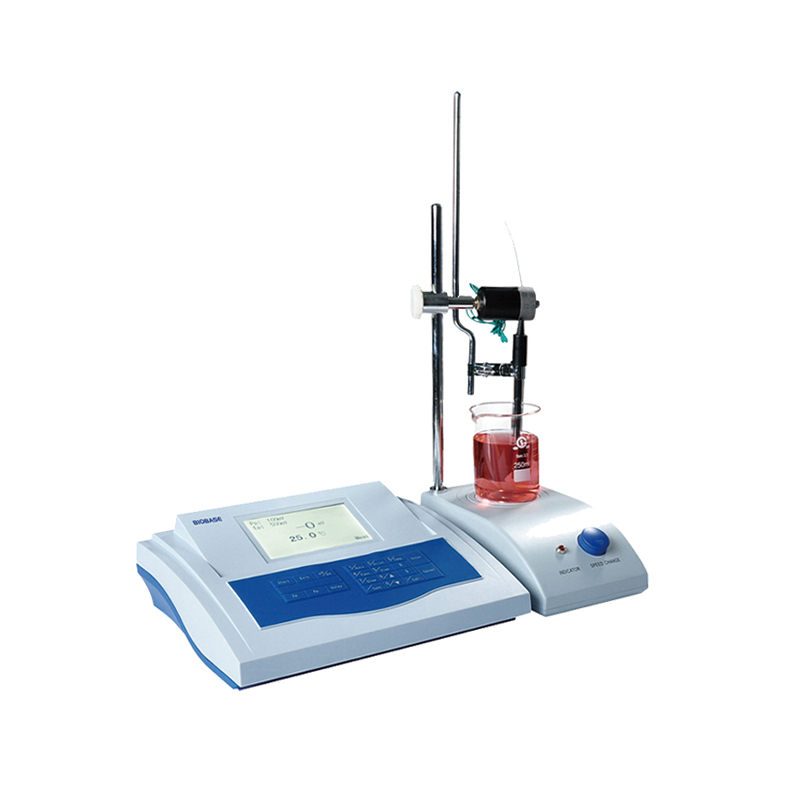

Features for Ti-20:
1. Preset potential to control titration endpoint.
2. Pre-control potential is adjustable.
3. Solenoid valve for controlling dropping liquid.
4. Equipped with delay circuit of titration endpoint.
5. Equipped with stirrer.
Technical Parameters:
Model | Ti-40 | Ti-20 |
Measuring Range | pH: 0.00~14.00pH mV: -1800.0~1800.0mV Temp.: -5.0~105.0°C | pH: 0.00~14.00pH mV: ±1400mV |
Measuring Resolution | pH: 0.01pH mV: 0.1mV Temp.: 0.1°C | pH: 0.01pH mV: 1mV |
Measuring Accuracy | pH: ±0.01pH±1 bit mV: ±0.03%(full scale) Temp.: ±0.3°C | pH: ±0.03pH±1 bit mV: ±5mV |
Burette Volume Accuracy | 10ml burette: ±0.025ml 20ml burette: ±0.035ml | / |
Burette Supplementary Speed | 55±10s(when burette is full scale) | / |
Repeatability Titration Analysis | 0.2% | / |
Repeatability Accuracy | ≤0.2mV | / |
Stability | ±0.3mV±1bit/3h | ±0.01pH/3h |
Sensitive of Control Titration | ±2mV | ±5mV |
Power Supply | AC110V/220V, 60Hz |
External Size(W*D*H) | 340*400*400mm | 300*235*100mm |
Package Size(W*D*H) | 540*490*480mm | 490*410*300mm |
Gross Weight | 10kg | 5kg |
Potential Titrator TI Series — professional solution in the Titrator category
Potential Titrator TI Series is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Potential Titrator TI Series
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Potential Titrator TI Series fits easily into existing process lines and IT infrastructure.
Areas of application Titrator
Titrator solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Potential Titrator TI Series allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Potential Titrator TI Series you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Potential Titrator TI Series to the cart or contact our manager. We will help integrate Titrator into existing processes without downtime and unnecessary costs.
