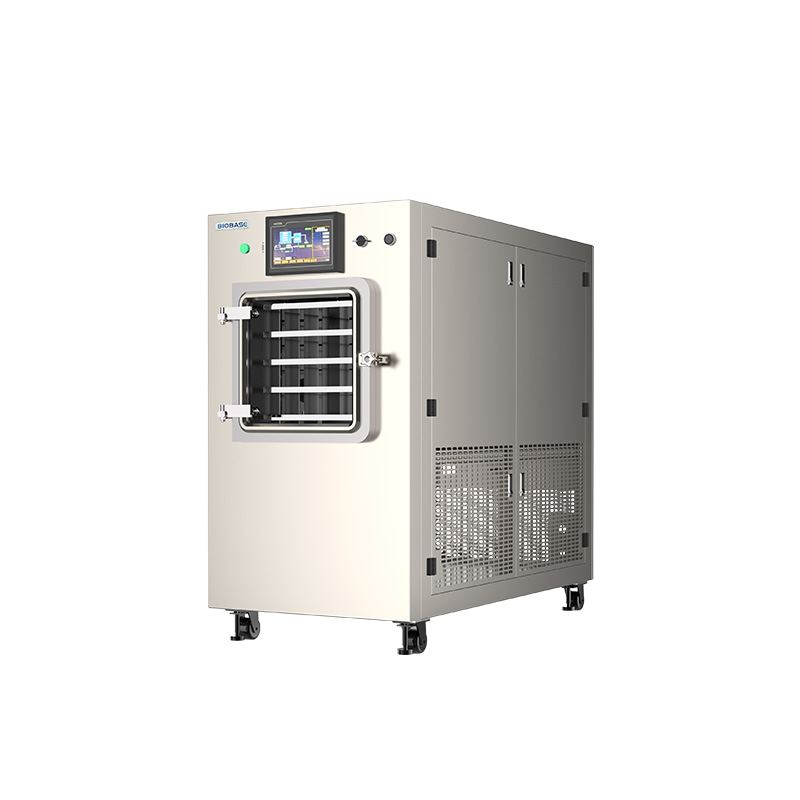

Pilot Freeze Dryer BK-PFD20S BK-PFD20T BK-PFD30S BK-PFD30T

Features:

1. Pre-freezing, drying in-situ, easy to operate, good drying effect.

2. Inflatable(discharge) valve adopts safety diaphragm valve, which can be connected to inert gas source, and is filled with inert gas after drying to extend the shelf life of the material.

3. Freeze-drying curve optimization control technology, which can control the cooling rate during the pre-freezing stage, and control the heating rate of the sample and the vacuum value of the current stage in the sublimation and analytical drying stages.

4. 10-inch true color touch screen.

5. Can save hundreds of process recipes, each group contains 50 temperature control sections to improve process optimization rate.

6. Intelligent data recording system, real-time recording and display of cold trap temperature curve, sample temperature curve, vacuum degree curve, export data can be browsed and printed by computer and various operations to facilitate process optimization and drying effect verification.

7. Flexible manual+automatic control mode, manual mode used for groping process, automatical mode used for batch production.

8. Real-time alarm display and historical alarm query function for fault diagnosis and equipment maintenance.

9. User level and password can be set and decentralized for operation management.

Technical Parameters:

Model	BK-PFD20S		BK-PFD20T	BK-PFD30S	BK-PFD30T
Type	Standard		Stoppering	Standard	Stoppering
Freeze Drying Area	0.3m2		0.2m2	0.4m2	0.3m2
Shelf Temperature	-55℃～+70℃(no-loading)
Cold Trap Temperature	<-80℃(no-loading)
Vacuum Degree	≤1Pa(no-loading)
Water Capture Capacity	≥6kg/24h			≥8kg/24h
Cold Trap Volume	15L			20L
Cold Trap Size(Diameter*H)	Φ200*450 mm			Φ220*520 mm
Drying Chamber Size(W*D*H)	330*320*470mm		420*320*490mm	400*350*430mm	380*380*540mm
Shelf Size(W*D*H)	Shelf: 400*270*20mm			Shelf: 340*300*20mm
Qty. of Shelf&Tray	Shelf: 3+1,Tray: 3		Shelf: 2+1,Tray: 2	Shelf: 4+1,Tray: 4	Shelf: 3+1,Tray: 3
Sample Loading Capacity(Liquid)	3L		2L	4L	3L
Height Between Trays	70mm		100mm	50mm	70mm
Tray Temperature Difference	±1℃
Refrigerant	R404A+R23
Condenser Cooling Mode	Air cooling
Defrost Mode	Electric defrosting		Electric defrosting	Natural defrosting	Electric defrosting
Total Qty. of Vial	Ф12mm Ф16mm Ф22mm	/	1554 868 440	/	2187 1200 654
Vacuum Pump	4L/S(14.4m3/h)			6L/S(22m3/h)
Optional Accessory:	Import vacuum pump Vacuum pump anti-return valve Oil mist filtration system Vacuum adjustment device
Silicone Oil Heating Rods Consumption	600W
Total Consumption	3KW		4KW	4.5KW	5.5KW
Power Supply	AC220V, 50Hz/60Hz(Standard); AC110V, 60Hz(Optional)
Main Body Weight	300kg		400kg	300kg	400kg
External Size(W*D*H)	1033*781*1580mm		1033*781*1704mm	825*928*1366mm	853*1277*1679mm
Packing Size(W*D*H) And Gross Weight	Main Body	1433*1081*1880mm/330kg	1433*1081*2004mm/330kg	1225*1228*1666mm/430kg	1225*1577*1979mm/430kg
	Vacuum Pump	770*350*450mm/65kg
