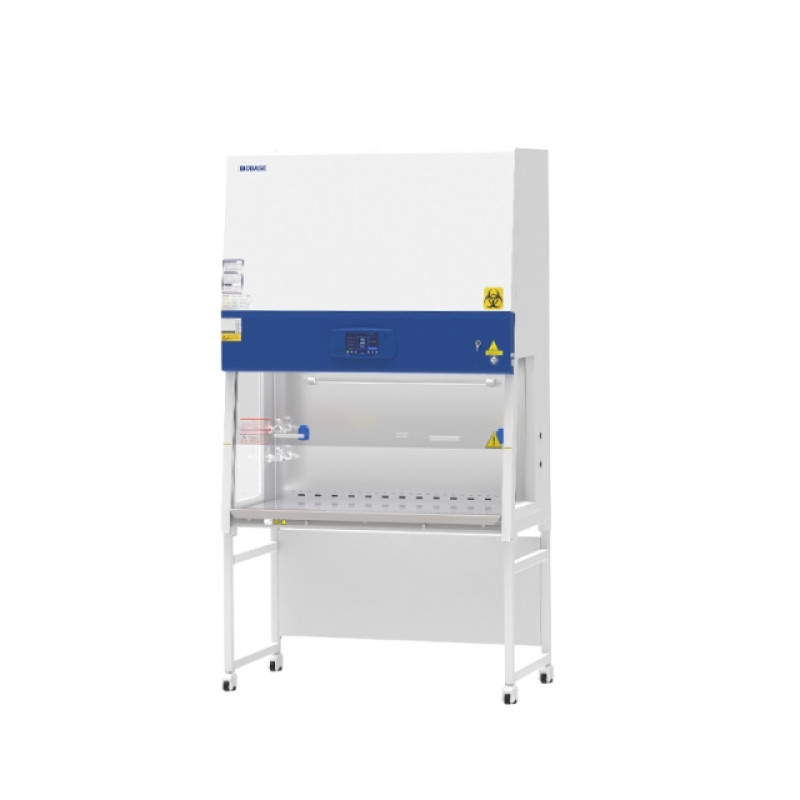

NSF Certified Class II Biosafety Cabinet Class II Type A2 BSC-4FA2 BSC-3FA2-GL BSC-3FA2-NA BSC-4FA2-GL BSC-4FA2-NA BSC-6FA2-GL BSC-6FA2-NA

Features:

1. Motorized front window.

2. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt.

3. The power-on password can be set to prevent mis-operation by irrelevant personnel.
4. EC Fan, automatically adjust the wind speed.
5. With power-failure memory function, the state before power-failure will be restored after power-on and there will be visual prompts and alarms.
6. The integrated design of the operation area makes it easy to disassemble and clean.
7. The cabinet is separated from the base. The height of the adjustable base can be customized
8. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.
9. It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fan and sockets.
10. The front window closes the trigger signal, so that the sterlization and disinfection function of the ultraviolet lamp is normally turned on.
11. The one-piece hand resting surface has a larger contact area with the arm and is more comfortable.air speed adjustable with filter block.

Technical Parameters:

Model		BSC-4FA2	BSC-3FA2-GL BSC-3FA2-NA	BSC-4FA2-GL BSC-4FA2-NA	BSC-6FA2-GL BSC-6FA2-NA
External Size(W*D*H)		1383*775*2220mm	1087*775*2220mm	1383*775*2220mm	1873*775*2240mm
Internal Size(W*D*H)		1210*600*660mm	910*600*660mm	1210*600*660mm	1700*600*660mm
Work Surface  Height		762mm	762mm	762mm	782mm
Max Opening		470mm
Tested Opening		Safety height 200mm(8")	Safety height 254mm(10")
Airflow Volume	Inflow	462m³/h(272cfm)	445m³/h(259cfm)	587m³/h(346cfm)	824m³/h(485cfm)
	Down Flow	65%: 863m³/h(507cfm)	60%: 649m³/h(382cfm)	60%: 863m³/h(507cfm)	60%: 1212m³/h(713cfm)
	Exhaust	35%: 462m³/h(272cfm)	40%: 445m³/h(259cfm)	40%: 587m³/h(346cfm)	40%: 824m³/h(485cfm)
Front Window		Motorized. Two-layer laminated toughened glass≥5mm. Anti UV
HEPA Filter		Two, 99.995% efficiency at 0.12μm, filter life indicator
Filter Guard Type		Aluminum alloy frame, glass fiber fiter paper
Noise		NSF 49≤67dB
Illumination		≥1000Lux
Display		Color touch screen
Waterproof Socket		Two, total consumption: ≤500W
Tap		Water tap*1, Gas tap *1
Ground Resistance		≤ 0.10Ω
Power Supply		AC230V, 50/60Hz; AC115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689
Consumption		500W	400W	500W	700W
Alarm		Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm
Motor		EC motor, 115V&230V acceptable, speed adjustable, high efficiency and low power consumption
Material		Working area: 304 stainless steel Frame and decorative plate: cold-rolled steel with anti-bacteria power coating
UV Lamp		30W	20W	30W	40W
		Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination
Illuminating Lamp		20W*2	10W*2	20W*2	23W*2
		LED lamp
Standard Accessory		LED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve Waterproof sockets*2, Stainless Steel IV Bar with 10 hooks, Remote control
Optional Accessory		Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand
Package Size(W*D*H)mm		1540*1080*1900	1240*1060*1900	1540*1080*1900	2020*1080*1900
Gross Weight(kg)		330	280	330	410
