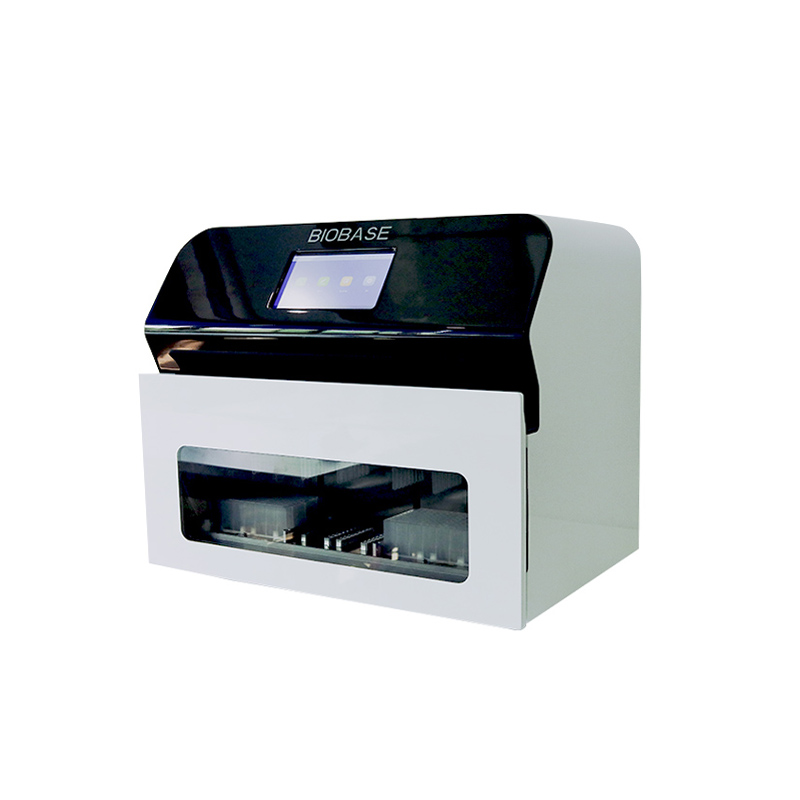

Nucleic Acid Extractor System BNP32 BNP48

Features:

1. 7-inch touch screen, easy to use, fast response

2. User-defined cracking and elution temperature

3. UV disinfection fuction, time range 1min~24hour

4. Automatic control system, no need connect to computer

5. Free programming to meet the needs of different reagent

6. Open system, fully automatic, stable results and good repeatability

7. Extract rapidly 9~40 minutes, 32/48 samples can be extracted at the same time

Technical Parameters:

Model	BNP32	BNP48
Sample Quantity	32	48
Processing Volume	60µl~1000µl
Sample Volume	20~500µl
Sample Throughput	1~32	48
Magnetic Bead Recovery	>98%
Extracting the Difference Between Holes	CV≤3%
Heating Temperature	8 independent heating modules, customize lysis and elution temperature(temperature range) according to your needs
Oscillating Mixing	Low, medium and high third gears are adjustable, and the fluctuation range can be adjusted with the reagent volume
Reagent Type	Magnetic bead open platform
Extraction Time	8~60min/round(depending on the reagent used)
Internal Program	48 groups	50000 groups
Program Management	Powerful program editing capabilities to meet different reagent needs U disk program import and export can be achieved
Safety Door Design	After the safety door is opened, the program operation will be automatically suspended, and the program can continue t run after the safety door closed
Built-in Air Duct	Yes	Yes
Ultraviolet Irradiation	Yes
Packing Size(W*D*H)mm	580*510*700	700*520*750
Gross Weight(kg)	51	80

Nucleic Acid Extractor System BNP32 BNP48 — professional solution in the Nucleic Acid Extractor category

Nucleic Acid Extractor System BNP32 BNP48 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Nucleic Acid Extractor System BNP32 BNP48

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Nucleic Acid Extractor System BNP32 BNP48 fits easily into existing process lines and IT infrastructure.

Areas of application Nucleic Acid Extractor

Nucleic Acid Extractor solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Nucleic Acid Extractor System BNP32 BNP48 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Nucleic Acid Extractor System BNP32 BNP48 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
