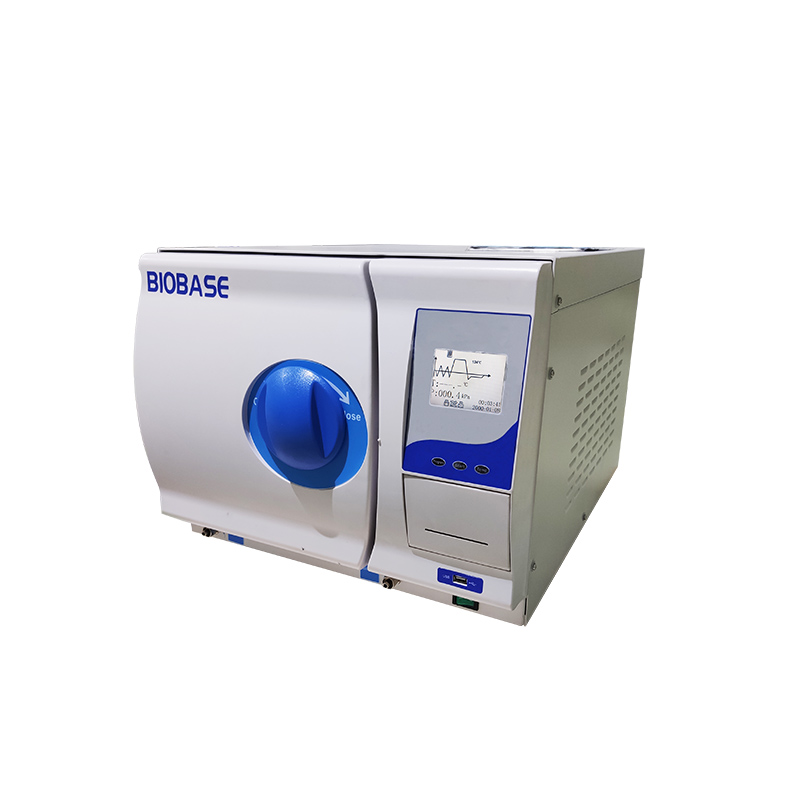

Table Top Autoclave Class B BKMZA BKMZB

Features:

1. Build-in open type water tank

The sterilizer adopts easy-clean open type water tank which can support repeated program running if fully injected with water.

2. High-efficiency ultimate vacuum

The sterilizer adopts high-efficiency low noise vacuum system which has excellent effects.

3. Large LCD display for BKMZA/BKMZB

The LCD screen can display temperature, pressure, time, operating status, failure warning and other information. It is convenient for customers to observe the sterilizer running status.

4. Multiple program types

The system has various programs that include solid instruments, packaged instruments, fabric(dressing) program, and enhance program. The other three are test programs, namely HELIX test, B&D test, and vacuum test.

5. Standard USB port for BKMZA/BKMZB

Users can store the sterilization data with USB disk.

6. Optional mini printer can be attached to record the process of sterilization.

7. High-efficiency air filter: 0.22μm sterilizing high-efficiency air filter, the filtration efficiency is not less than 99.5%, to ensure that the vacuum-breaking air is sterile air, and to avoid re-contamination of sterile materials.

8. Safety protection

Automatic power-off protection for over-temperature and over-pressure, anti-dry burning protection device, automatic pressure relief device for over-pressure, over-current protection device, and leakage protection device.

Technical Parameters:

Model	BKMZA	BKMZB
Capacity	18L	23L
Door	Manual
Display	3.5-inch LCD
Max Designed Pressure	0.28MPa
Working Pressure	0.23Mpa
Max Designed Temp.	150℃
Working Temp.	121/134℃
Temp. Precision	0.1℃
Sterilization Time	0~60min
Drying Time	0~20min
Water Tank Capacity	3.5L
Vacuum System	High efficiency vacuum pump
Chamber Material	S30408
Chamber Size	φ247*360mm	φ247*470mm
Altitude	≤2700m
Rack	1 rack with 3 trays
Standard Accessories	Aluminum tray, USB port
Optional Accessories	Stainless steel tray, printer
Consumption	1950VA
Power Supply	AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional)
External Size(W*D*H)	495*650*410mm	495*700*410mm
Net Weight	50kg	55kg
Package Size(W*D*H)	610*810*590mm	610*810*590mm
Gross Weight	63kg	67kg

The table top autoclave can be used for medical and surgical items in ophthalmology, dentistry and internal medicine clinics, such as packaged items, hollow and porous items for sterilization, and can also be used in emergency rooms and small laboratories.

Table Top Autoclave Class B BKMZA BKMZB — professional solution in the Class B Autoclave category

Table Top Autoclave Class B BKMZA BKMZB is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Table Top Autoclave Class B BKMZA BKMZB

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Table Top Autoclave Class B BKMZA BKMZB fits easily into existing process lines and IT infrastructure.

Areas of application Class B Autoclave

Class B Autoclave solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Table Top Autoclave Class B BKMZA BKMZB allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Table Top Autoclave Class B BKMZA BKMZB you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
