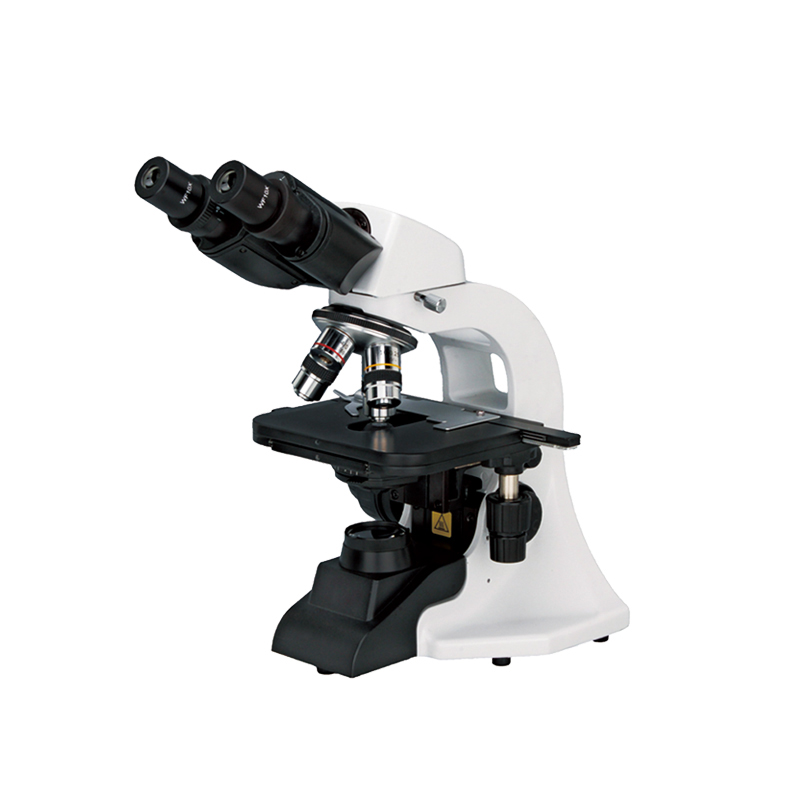

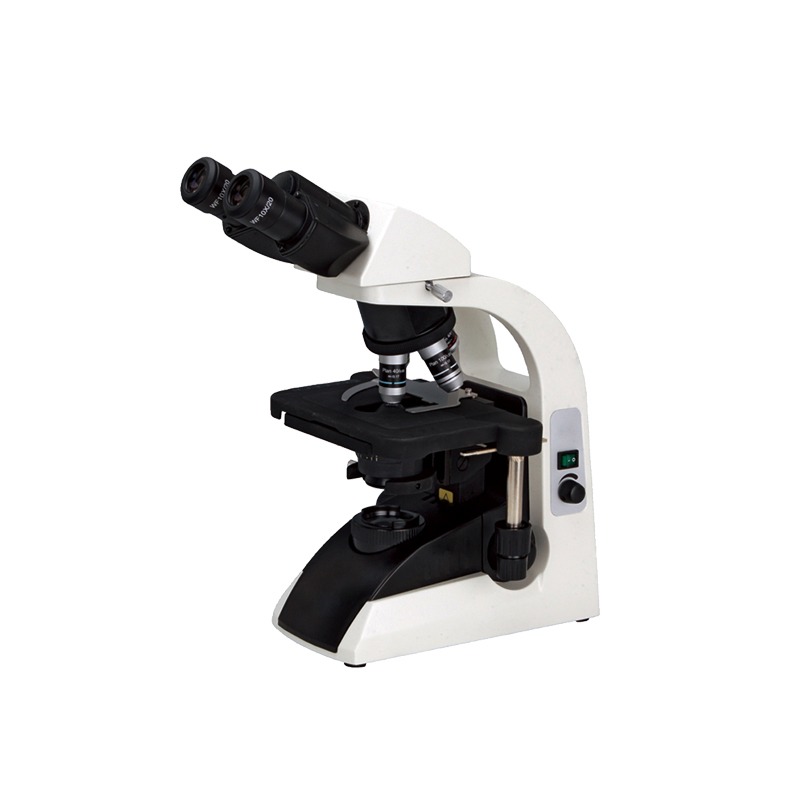

Multi-function Digital Biological Microscope BMM-1000 BMM-2000

Technical Parameters:

Model		BMM-1000	BMM-2000
Optical System	Infinite optical system	/	√
Viewing Head	Siedentopf binocular viewing head, inclined at 30°, 360° rotatable, Interpupillary 48~75mm	√	√
	Siedentopf trinocular viewing head, inclined at 30°, 360° rotatable, Interpupillary 48~75mm	●	●
Eyepiece	WF10X/18	√	\
	P16X/11	●	\
	WF10X/20	\	√
	WF15×/16	\	●
Objective	Achromatic objective 4X,10X, 40X,100X	√	\
	Semi-plan achromatic objective 4X,10X, 40X,100X	●	\
	Infinite achromatic objective 4X,10X, 40X,100X	●	\
	Infinite semi-plan achromatic objective 4X, 10X, 40X, 100X	●	\
	Infinite plan achromatic objective 4X,10X, 40X,100X	\	√
Nosepiece	Quadruple nosepiece	√	\
	Backward quadruple nosepiece	\	√
	Backward quintuple nosepiece	\	●
Focusing	Coaxial coarse&fine adjustment,fine division 0.002mm,coarse stroke 37.7mm per rotation,fine stroke 0.2mm per rotation ,moving range 20mm	√	√
Stage	Double layers mechanical stage: 132*142mm, moving range: 75*40mm	√	\
	Rectangular 230*150mm stage, moving range: 78*54mm, using low-positioned X/Y coaxial control knob	\	√
Condenser	Abbe condenser NA1.25 with aperture diaphragm	√	√
Illumination	S-LED IIlumination, brightness adjustable	√	√
	12V/20W Halogen lamp, brightness adjustable	●	●
	Kohler illumination	●	●
Power Supply	110~220V, 50/60Hz	√	√
Accessories	Photo attachment, video attachment	●	●
	Dark field condenser	\	\
	Polarization set, phase contrast kit	\	●
Package Size	323*264*440mm(BMM-1000), 380*260*510mm(BMM-2000)	√	√
Gross Weight	6.5kg(BMM-1000),10kg(BMM-2000)	√	√

Note: √Standard Outfit, ●Optional, \Without this feature

Multi-function Digital Biological Microscope BMM-1000 BMM-2000 — professional solution in the Microscope category

Multi-function Digital Biological Microscope BMM-1000 BMM-2000 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Multi-function Digital Biological Microscope BMM-1000 BMM-2000

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Multi-function Digital Biological Microscope BMM-1000 BMM-2000 fits easily into existing process lines and IT infrastructure.

Areas of application Microscope

Microscope solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Multi-function Digital Biological Microscope BMM-1000 BMM-2000 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Multi-function Digital Biological Microscope BMM-1000 BMM-2000 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
